Live migration with local storage gives an error

Hi spirit,
sorry it's not working reliable - make one test and it's fails:
Code:
boot: c
bootdisk: scsi0
cores: 2
hotplug: disk,network,usb
keyboard: de
numa: 1
memory: 8192
name: vm01-dev
net0: virtio=02:76:FC:6D:7F:08,bridge=vmbr0,tag=123
onboot: 1
ostype: l26
scsi0: local_vm_storage:623/vm-623-disk-1.qcow2,discard=on,size=25G
scsi1: local_vm_storage:623/vm-623-disk-2.qcow2,iothread=1,size=25G
scsihw: virtio-scsi-single
serial0: socket
smbios1: uuid=4a9fe3d2-df51-4163-b7bf-eb4657679379
sockets: 1
log on sending host:
Code:
Jun  3 20:34:35 pve08 qm[2928015]: <root@pam> starting task UPID:pve08:002CAD90:4B357DB7:5B1434BB:qmigrate:623:root@pam:
Jun  3 20:44:01 pve08 qm[2930469]: VM 623 qmp command failed - VM 623 qmp command 'change' failed - unable to connect to VM 623 qmp socket - timeout after 599 retries
Jun  3 20:44:54 pve08 qm[2928016]: VM 623 qmp command failed - interrupted by signal
Jun  3 20:45:43 pve08 qm[2928016]: VM 623 qmp command failed - VM 623 qmp command 'query-migrate' failed - interrupted by signal
Jun  3 20:45:46 pve08 qm[2928015]: <root@pam> end task UPID:pve08:002CAD90:4B357DB7:5B1434BB:qmigrate:623:root@pam: got unexpected control message:
Jun  3 20:46:39 pve08 lldpd[3820]: error while receiving frame on tap623i0 (retry: 0): Network is down
Jun  3 20:46:39 pve08 lldpd[3802]: 2018-06-03T20:46:39 [WARN/interfaces] error while receiving frame on tap623i0 (retry: 0): Network is down
Jun  3 20:46:39 pve08 qm[2931245]: VM 623 qmp command failed - VM 623 qmp command 'change' failed - unable to connect to VM 623 qmp socket - Connection refused
Jun  3 20:46:39 pve08 qm[2931203]: VM 623 qmp command failed - VM 623 qmp command 'change' failed - unable to connect to VM 623 qmp socket - Connection refused
on the target:
Code:
Jun  3 20:34:37 pve06 qm[1414930]: <root@pam> starting task UPID:pve06:00159717:01D7AE68:5B1434BD:qmstart:623:root@pam:
Jun  3 20:34:37 pve06 qm[1414935]: start VM 623: UPID:pve06:00159717:01D7AE68:5B1434BD:qmstart:623:root@pam:
Jun  3 20:34:37 pve06 systemd[1]: Started 623.scope.
Jun  3 20:34:37 pve06 systemd-udevd[1414959]: Could not generate persistent MAC address for tap623i0: No such file or directory
Jun  3 20:34:38 pve06 kernel: [309113.136860] device tap623i0 entered promiscuous mode
Jun  3 20:34:38 pve06 ovs-vsctl: ovs|00001|vsctl|INFO|Called as /usr/bin/ovs-vsctl del-port tap623i0
Jun  3 20:34:38 pve06 ovs-vsctl: ovs|00002|db_ctl_base|ERR|no port named tap623i0
Jun  3 20:34:38 pve06 ovs-vsctl: ovs|00001|vsctl|INFO|Called as /usr/bin/ovs-vsctl del-port fwln623i0
Jun  3 20:34:38 pve06 ovs-vsctl: ovs|00002|db_ctl_base|ERR|no port named fwln623i0
Jun  3 20:34:38 pve06 ovs-vsctl: ovs|00001|vsctl|INFO|Called as /usr/bin/ovs-vsctl add-port vmbr0 tap623i0 tag=123
Jun  3 20:34:38 pve06 qm[1414930]: <root@pam> end task UPID:pve06:00159717:01D7AE68:5B1434BD:qmstart:623:root@pam: OK
Jun  3 20:46:38 pve06 ovs-vsctl: ovs|00001|vsctl|INFO|Called as /usr/bin/ovs-vsctl del-port fwln623i0
Jun  3 20:46:38 pve06 ovs-vsctl: ovs|00002|db_ctl_base|ERR|no port named fwln623i0
Jun  3 20:46:38 pve06 ovs-vsctl: ovs|00001|vsctl|INFO|Called as /usr/bin/ovs-vsctl del-port tap623i0
Jun  3 20:46:38 pve06 lldpd[3748]: error while receiving frame on tap623i0 (retry: 0): Network is down
Jun  3 20:46:38 pve06 lldpd[3451]: 2018-06-03T20:46:38 [WARN/interfaces] error while receiving frame on tap623i0 (retry: 0): Network is down
Jun  3 20:46:39 pve06 lldpd[3748]: unable to send packet on real device for tap623i0: No such device or address
Jun  3 20:46:39 pve06 lldpd[3451]: 2018-06-03T20:46:39 [WARN/lldp] unable to send packet on real device for tap623i0: No such device or address
both hosts are uptodate, but the source host aren't rebootet since 5 month (should rebooted tomorror morning).
I use CNTR-C, but must kill the vm process with -9.
Code:
pveversion -v
proxmox-ve: 5.2-2 (running kernel: 4.13.13-3-pve)
pve-manager: 5.2-1 (running version: 5.2-1/0fcd7879)
pve-kernel-4.15: 5.2-1
pve-kernel-4.13: 5.1-44
pve-kernel-4.15.17-1-pve: 4.15.17-9
pve-kernel-4.13.16-2-pve: 4.13.16-48
pve-kernel-4.13.16-1-pve: 4.13.16-46
pve-kernel-4.13.13-3-pve: 4.13.13-34
ceph: 12.2.5-pve1
corosync: 2.4.2-pve5
criu: 2.11.1-1~bpo90
glusterfs-client: 3.8.8-1
ksm-control-daemon: 1.2-2
libjs-extjs: 6.0.1-2
libpve-access-control: 5.0-8
libpve-apiclient-perl: 2.0-4
libpve-common-perl: 5.0-31
libpve-guest-common-perl: 2.0-16
libpve-http-server-perl: 2.0-8
libpve-storage-perl: 5.0-23
libqb0: 1.0.1-1
lvm2: 2.02.168-pve6
lxc-pve: 3.0.0-3
lxcfs: 3.0.0-1
novnc-pve: 0.6-4
openvswitch-switch: 2.7.0-2
proxmox-widget-toolkit: 1.0-18
pve-cluster: 5.0-27
pve-container: 2.0-23
pve-docs: 5.2-4
pve-firewall: 3.0-9
pve-firmware: 2.0-4
pve-ha-manager: 2.0-5
pve-i18n: 1.0-5
pve-libspice-server1: 0.12.8-3
pve-qemu-kvm: 2.11.1-5
pve-xtermjs: 1.0-5
qemu-server: 5.0-26
smartmontools: 6.5+svn4324-1
spiceterm: 3.0-5
vncterm: 1.5-3
zfsutils-linux: 0.7.8-pve1~bpo9
The disk-data was transferred (target):
Code:
ls -lsa /data/images/623/
total 30436104
       4 drwxr-----  2 root root        4096 Jun  3 20:34 .
       4 drwxr-xr-x 27 root root        4096 Jun  3 20:34 ..
 6872944 -rw-r-----  1 root root 26847870976 Jun  3 20:40 vm-623-disk-1.qcow2
23563152 -rw-r-----  1 root root 26847870976 Jun  3 20:38 vm-623-disk-2.qcow2
Udo

Can you send the task migration log ? And I don't see nothing related to migration in your logs.

>>VM 623 qmp command failed - VM 623 qmp command 'change' failed - unable to connect to VM 623 qmp socket - timeout after 599 >>retries

change qmp command is for eject cdrom, I don't see any cdrom in your vm config and it's not related to migration.

I'll try to reproduce with the config you have posted. (I don't have tested with iothread for example)

Hello everyone,

I stumbled upon this error message right now, it is stable(at least in 5.2-12) but the main thing you have to do is to unmount the iso image from cdrom.

Thanks.

Thank you for the reply. Strange that Proxmox has advertised this as possible, but it does not work from the GUI.
I know at least half of our staff that do not know how to use the terminal/SSH/CLI.
Maybe this will work from the GUI in PVE 5.2
I will try the above
Not working on 5.2 GUI

Hi,
you must do that on the cli:
Code:
qm migrate 202 ns6735811 --online --with-local-disks
Udo
Not Working
root@pvenode0:~# qm migrate 102 pvenode1 --with-local-disks
2019-04-10 11:23:10 starting migration of VM 102 to node 'pvenode1' (10.0.0.12)
2019-04-10 11:23:10 found local disk 'local-lvm:vm-102-cloudinit' (in current VM config)
2019-04-10 11:23:10 found local disk 'local-lvm:vm-102-disk-0' (in current VM config)
2019-04-10 11:23:10 can't migrate local disk 'local-lvm:vm-102-cloudinit': local cdrom image
2019-04-10 11:23:10 ERROR: Failed to sync data - can't migrate VM - check log
2019-04-10 11:23:10 aborting phase 1 - cleanup resources
2019-04-10 11:23:10 ERROR: migration aborted (duration 00:00:00): Failed to sync data - can't migrate VM - check log
migration aborted

Trying Offline migration My node is a cloud init node created using this link: https://pve.proxmox.com/wiki/Cloud-Init_Support

Remove the CD:
"2019-04-10 11:23:10 can't migrate local disk 'local-lvm:vm-102-cloudinit': local cdrom image"

  • Like
Reactions: udo

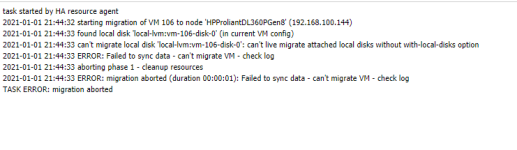

I cannot migrate mine online, I the CLI:
qm migrate 106 HPProliantDL360PGen8 --online --with-local-disks


Attachments

  • 1609537592593.png
    15.6 KB · Views: 0
in file /usr/share/perl5/PVE/QemuMigrate.pm find line:
die "can't live migrate attached local disks without with-local-disks option\n" if $self->{running} && !$self->{opts}->{"with-local-disks"};
and comment it by #
then run systemctl restart pvedaemon
now you can do online migration form VE like proxmox 6 :)

  • Like
Reactions: voarsh
