Cluster created: No access to node and no cluster join possible

[drflo]

Hi guys,

I created a new cluster with v6.2 with a separate cluster network. The cluster network is within an own VLAN. The cluster creation with two nodes was successful and I can see the two nodes in the web interface with a green checkmark.

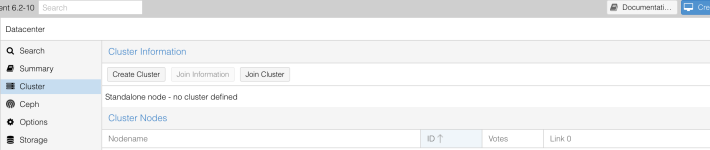

The problem now is that there are is no possibility anymore to add another node via the GUI. In addition every time when I try to get information about the second node in the UI I get connection errors. Also the seconds node is not reachable anymore via the web interface.




Ping is possible between the two nodes. As well shell access from node1 to node 2.

pvme status

Cluster information
-------------------
Name:             XXX
Config Version:   2
Transport:        knet
Secure auth:      on

Quorum information
------------------
Date:             Thu Aug  6 10:21:53 2020
Quorum provider:  corosync_votequorum
Nodes:            2
Node ID:          0x00000001
Ring ID:          1.43
Quorate:          Yes

Votequorum information
----------------------
Expected votes:   2
Highest expected: 2
Total votes:      2
Quorum:           2
Flags:            Quorate

Membership information
----------------------
    Nodeid      Votes Name
0x00000001          1 10.XX.XX.XX (local)
0x00000002          1 10.XX.XX.XX

Would appreciate any help. Thanks a lot.

All the best,
Florian



[fabian]

does SSH access work between both nodes (in both directions)? is the firewall active?



[drflo]

yes, I have shell access to both nodes via the GUI (from node 1). Within shell I can ping them in both directions. Firewall is not configured on node2 (brand new installation). Node1 has firewall access for pveGUIaccess. But I disabled this already for validation.



[fabian]

I really meant SSH access from node A to node B and vice-versa



[drflo]

Okay, sorry. Now I tried it out and yes it's working with

ssh root@pve003

and vice-versa.



[fabian]

anything in the pveproxy logs (journalctl -u pveproxy)?



[drflo]

node1 looks good I think

-- Logs begin at Thu 2020-08-06 09:54:37 CEST, end at Thu 2020-08-06 16:04:46 CEST. --
Aug 06 09:54:43 pve001 systemd[1]: Starting PVE API Proxy Server...
Aug 06 09:54:45 pve001 pveproxy[1203]: starting server
Aug 06 09:54:45 pve001 pveproxy[1203]: starting 3 worker(s)
Aug 06 09:54:45 pve001 pveproxy[1203]: worker 1204 started
Aug 06 09:54:45 pve001 pveproxy[1203]: worker 1205 started
Aug 06 09:54:45 pve001 pveproxy[1203]: worker 1206 started
Aug 06 09:54:45 pve001 systemd[1]: Started PVE API Proxy Server.
Aug 06 10:11:54 pve001 pveproxy[1205]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:23:16 pve001 pveproxy[1204]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:23:19 pve001 pveproxy[1206]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:23:21 pve001 pveproxy[1206]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:23:27 pve001 pveproxy[1206]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:23:27 pve001 pveproxy[1206]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:23:46 pve001 pveproxy[1204]: proxy detected vanished client connection
Aug 06 10:23:49 pve001 pveproxy[1206]: proxy detected vanished client connection
Aug 06 10:23:51 pve001 pveproxy[1206]: proxy detected vanished client connection
Aug 06 10:23:57 pve001 pveproxy[1206]: proxy detected vanished client connection
Aug 06 10:23:57 pve001 pveproxy[1206]: proxy detected vanished client connection
Aug 06 10:24:52 pve001 pveproxy[1206]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:25:22 pve001 pveproxy[1206]: proxy detected vanished client connection
Aug 06 10:27:10 pve001 pveproxy[1204]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:30:05 pve001 pveproxy[1204]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:31:44 pve001 pveproxy[1205]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:33:21 pve001 pveproxy[1204]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:34:59 pve001 pveproxy[1204]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:36:43 pve001 pveproxy[1206]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:38:30 pve001 pveproxy[1204]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:40:32 pve001 pveproxy[1204]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:42:12 pve001 pveproxy[1206]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:43:50 pve001 pveproxy[1205]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:45:31 pve001 pveproxy[1206]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:48:29 pve001 pveproxy[1204]: '/etc/pve/nodes/pve003/pve-ssl.pem' does not exist!
Aug 06 10:48:59 pve001 pveproxy[1204]: proxy detected vanished client connection

But you are right ... node2 looks not healthy.

Aug 06 09:46:17 pve003 pveproxy[1768]: /etc/pve/local/pve-ssl.key: failed to load local private key (key_file or key) at /usr/share/perl
Aug 06 09:46:17 pve003 pveproxy[1769]: /etc/pve/local/pve-ssl.key: failed to load local private key (key_file or key) at /usr/share/perl
Aug 06 09:46:21 pve003 pveproxy[1767]: worker exit
Aug 06 09:46:22 pve003 pveproxy[1208]: worker 1767 finished
Aug 06 09:46:22 pve003 pveproxy[1208]: starting 1 worker(s)
Aug 06 09:46:22 pve003 pveproxy[1208]: worker 1770 started
Aug 06 09:46:22 pve003 pveproxy[1768]: worker exit
Aug 06 09:46:22 pve003 pveproxy[1770]: /etc/pve/local/pve-ssl.key: failed to load local private key (key_file or key) at /usr/share/perl
Aug 06 09:46:22 pve003 pveproxy[1769]: worker exit
Aug 06 09:46:22 pve003 pveproxy[1208]: worker 1768 finished
Aug 06 09:46:22 pve003 pveproxy[1208]: starting 1 worker(s)
Aug 06 09:46:22 pve003 pveproxy[1208]: worker 1771 started
Aug 06 09:46:22 pve003 pveproxy[1208]: worker 1769 finished
Aug 06 09:46:22 pve003 pveproxy[1208]: starting 1 worker(s)
Aug 06 09:46:22 pve003 pveproxy[1208]: worker 1772 started
Aug 06 09:46:22 pve003 pveproxy[1771]: /etc/pve/local/pve-ssl.key: failed to load local private key (key_file or key) at /usr/share/perl
Aug 06 09:46:22 pve003 pveproxy[1772]: /etc/pve/local/pve-ssl.key: failed to load local private key (key_file or key) at /usr/share/perl
Aug 06 09:46:27 pve003 pveproxy[1770]: worker exit
Aug 06 09:46:27 pve003 pveproxy[1208]: worker 1770 finished
Aug 06 09:46:27 pve003 pveproxy[1208]: starting 1 worker(s)
Aug 06 09:46:27 pve003 pveproxy[1208]: worker 1811 started
Aug 06 09:46:27 pve003 pveproxy[1771]: worker exit
Aug 06 09:46:27 pve003 pveproxy[1811]: /etc/pve/local/pve-ssl.key: failed to load local private key (key_file or key) at /usr/share/perl
Aug 06 09:46:27 pve003 pveproxy[1772]: worker exit
Aug 06 09:46:27 pve003 pveproxy[1208]: worker 1771 finished
Aug 06 09:46:27 pve003 pveproxy[1208]: starting 1 worker(s)
Aug 06 09:46:27 pve003 pveproxy[1208]: worker 1812 started
Aug 06 09:46:27 pve003 pveproxy[1208]: worker 1772 finished
Aug 06 09:46:27 pve003 pveproxy[1208]: starting 1 worker(s)
Aug 06 09:46:27 pve003 pveproxy[1208]: worker 1813 started
Aug 06 09:46:27 pve003 pveproxy[1812]: /etc/pve/local/pve-ssl.key: failed to load local private key (key_file or key) at /usr/share/perl
Aug 06 09:46:27 pve003 pveproxy[1813]: /etc/pve/local/pve-ssl.key: failed to load local private key (key_file or key) at /usr/share/perl
Aug 06 09:46:32 pve003 pveproxy[1811]: worker exit
Aug 06 09:46:32 pve003 pveproxy[1208]: worker 1811 finished
Aug 06 09:46:32 pve003 pveproxy[1208]: starting 1 worker(s)
Aug 06 09:46:32 pve003 pveproxy[1208]: worker 1814 started

how can I fix this? I really appreciate your help.



[drflo]

Interesting. I copied the key_files from /etc/pve/nodes/pve001 to the other /etc/pve/nodes/pve003/ and now it works.

Is this correct or just working accidentally?



[fabian]

'pvecm updatecerts -f' on pve003 will regenerate them properly.



[drflo]

Thank you very much @fabian ! Issue is resolved.
