Hi All,
Fairly new to home lab/pfsense, and below is my current setup

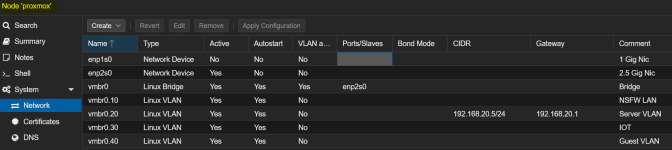

I have pfsense running on proxmox. Proxmox is installed on a Dell Wyse 5070. It has one inbuilt NIC, that I use for WAN and another 2.5 Gig NIC that I use for my LAN. Proxmox has a bridge (vmbr0) that connects to my 2.5 Gig NIC. I have configured Linux vlan's that use that bridge. 10 - NSFW (General Internet allowed), 20 - Server, 30 - IOT and 40 - Guest.

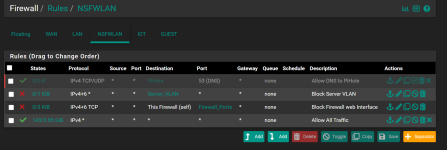

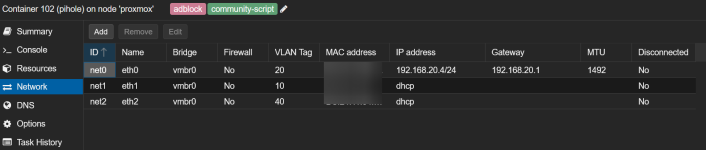

Proxmox IP is 192.168.20.5 and pfsense is 192.168.20.1. Now if I add Pihole (192.168.20.4) as LXC container with vmbr0. Can I use all the VLANs to use the single Pihole server as their DNS, provided I configure a Allow DNS rule (port 53) on each VLAN other than Server. When I had configured it I'm able to test this by placing my laptop on the NSFW lan, but was not able to reach the internet with Pihole as the DNS server. But am able to access the internet when using Pihole as DNS in the server LAN. Server LAN has internet access. When I use Test-NetConnection Powershell command I'm getting success on port 53. Pihole only has one interface. And it's tagged with vlan id 20 which is the server vlan.
Feel free to ask me any questions, any help is greatly appreciated.
