NFS not mounting properly on the Datacentre cluster

[Sujith Arangan]

Hello All,

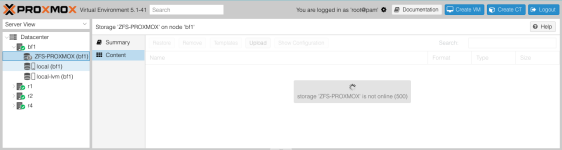

I have created a cluster of 5 Proxmox VEs together. When I am trying to mount an NFS from another server for live migration between the cluster. It shows not online in the storage. Please help me with this?



[michealkd]

I have the exact problem. i tried changing nfs version from 3 to 4, that worked on the master node but not the newly added node. After looking around on the forums i tried what others have such as upgrading the packages, rebooting, all without success. Some assistance with this will be greatly appreciated.

pveversion -v

proxmox-ve: 5.1-41 (running kernel: 4.13.13-2-pve)
pve-manager: 5.1-46 (running version: 5.1-46/ae8241d4)
pve-kernel-4.13.13-6-pve: 4.13.13-41
pve-kernel-4.13.13-2-pve: 4.13.13-33
corosync: 2.4.2-pve3
criu: 2.11.1-1~bpo90
glusterfs-client: 3.8.8-1
ksm-control-daemon: 1.2-2
libjs-extjs: 6.0.1-2
libpve-access-control: 5.0-8
libpve-common-perl: 5.0-28
libpve-guest-common-perl: 2.0-14
libpve-http-server-perl: 2.0-8
libpve-storage-perl: 5.0-17
libqb0: 1.0.1-1
lvm2: 2.02.168-pve6
lxc-pve: 2.1.1-3
lxcfs: 2.0.8-2
novnc-pve: 0.6-4
proxmox-widget-toolkit: 1.0-11
pve-cluster: 5.0-20
pve-container: 2.0-19
pve-docs: 5.1-16
pve-firewall: 3.0-5
pve-firmware: 2.0-3
pve-ha-manager: 2.0-5
pve-i18n: 1.0-4
pve-libspice-server1: 0.12.8-3
pve-qemu-kvm: 2.9.1-9
pve-xtermjs: 1.0-2
qemu-server: 5.0-22
smartmontools: 6.5+svn4324-1
spiceterm: 3.0-5
vncterm: 1.5-3
zfsutils-linux: 0.7.6-pve1~bpo9

/etc/pve/storage.cfg

nfs: freenas02-vms
        export /mnt/zfs/vms
        path /mnt/pve/freenas02-vms
        server 192.168.0.42
        content vztmpl,images,iso,rootdir,backup
        maxfiles 5
        nodes node03,node04
        options vers=4

excerpt from syslog

Mar 06 12:47:02 node04 pvestatd[2035]: mount error: mount.nfs: Protocol not supported
Mar 06 12:47:12 node04 pvestatd[2035]: mount error: mount.nfs: Protocol not supported
Mar 06 12:47:22 node04 pvestatd[2035]: mount error: mount.nfs: Protocol not supported
Mar 06 12:47:32 node04 pvestatd[2035]: mount error: mount.nfs: Protocol not supported
Mar 06 12:47:42 node04 pvestatd[2035]: mount error: mount.nfs: Protocol not supported
Mar 06 12:47:52 node04 pvestatd[2035]: mount error: mount.nfs: Protocol not supported



[michealkd]

I have the exact problem. i tried changing nfs version from 3 to 4, that worked on the master node but not the newly added node. After looking around on the forums i tried what others have such as upgrading the packages, rebooting, all without success. Some assistance with this will be greatly appreciated.

pveversion -v

proxmox-ve: 5.1-41 (running kernel: 4.13.13-2-pve)
pve-manager: 5.1-46 (running version: 5.1-46/ae8241d4)
pve-kernel-4.13.13-6-pve: 4.13.13-41
pve-kernel-4.13.13-2-pve: 4.13.13-33
corosync: 2.4.2-pve3
criu: 2.11.1-1~bpo90
glusterfs-client: 3.8.8-1
ksm-control-daemon: 1.2-2
libjs-extjs: 6.0.1-2
libpve-access-control: 5.0-8
libpve-common-perl: 5.0-28
libpve-guest-common-perl: 2.0-14
libpve-http-server-perl: 2.0-8
libpve-storage-perl: 5.0-17
libqb0: 1.0.1-1
lvm2: 2.02.168-pve6
lxc-pve: 2.1.1-3
lxcfs: 2.0.8-2
novnc-pve: 0.6-4
proxmox-widget-toolkit: 1.0-11
pve-cluster: 5.0-20
pve-container: 2.0-19
pve-docs: 5.1-16
pve-firewall: 3.0-5
pve-firmware: 2.0-3
pve-ha-manager: 2.0-5
pve-i18n: 1.0-4
pve-libspice-server1: 0.12.8-3
pve-qemu-kvm: 2.9.1-9
pve-xtermjs: 1.0-2
qemu-server: 5.0-22
smartmontools: 6.5+svn4324-1
spiceterm: 3.0-5
vncterm: 1.5-3
zfsutils-linux: 0.7.6-pve1~bpo9

/etc/pve/storage.cfg

nfs: freenas02-vms
        export /mnt/zfs/vms
        path /mnt/pve/freenas02-vms
        server 192.168.0.42
        content vztmpl,images,iso,rootdir,backup
        maxfiles 5
        nodes node03,node04
        options vers=4

excerpt from syslog

Mar 06 12:47:02 node04 pvestatd[2035]: mount error: mount.nfs: Protocol not supported
Mar 06 12:47:12 node04 pvestatd[2035]: mount error: mount.nfs: Protocol not supported
Mar 06 12:47:22 node04 pvestatd[2035]: mount error: mount.nfs: Protocol not supported
Mar 06 12:47:32 node04 pvestatd[2035]: mount error: mount.nfs: Protocol not supported
Mar 06 12:47:42 node04 pvestatd[2035]: mount error: mount.nfs: Protocol not supported
Mar 06 12:47:52 node04 pvestatd[2035]: mount error: mount.nfs: Protocol not supported

SOLUTION
Got this working. you have to manually configure "/etc/pve/storage.cfg" on all nodes to:

options vers=3
