Lost Proxmox host connectivity after adding vmbr1, but VMs still working

[john0017]

It was working for the past 1–2 years with 3 Windows 11 VMs and 1 Ubuntu machine running Tailscale. I was using the Ubuntu VM as a gateway to avoid installing Tailscale on each Windows VM individually. IP forwarding and routing were configured on Ubuntu, and everything was working fine up until this point.

About a week ago, I wanted to add another Windows 11 VM and isolate it from the local LAN (no access to other devices, no ping), so I planned to create a separate network using a Class A IP range. The idea was to connect this new network to the Ubuntu VM and handle routing + Tailscale there, while installing Tailscale directly on that new Windows VM.

So I went into Proxmox and:

• Created a new bridge vmbr1
• Did not assign an IP or gateway to vmbr1
• Planned to handle addressing and routing inside Ubuntu

After applying the configuration, I lost connectivity to the Proxmox host.

Current situation:​

• I can access Proxmox via iDRAC/console
• From the Proxmox host, I cannot ping the default gateway

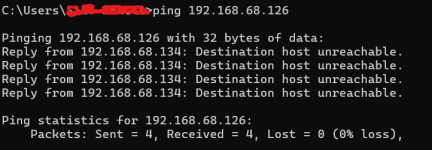

• From other machines, pinging the Proxmox host returns: Destination Host Unreachable
• However, all VMs inside Proxmox are still running fine
• I can still access the VMs remotely (including Ubuntu with Tailscale)

Troubleshooting already performed:​

I have already verified and tested the following:

1. Checked interfaces
   ip a
   ip link show
2. Checked routing
   ip route
3. Checked Proxmox web service
   systemctl status pveproxy
4. Checked port 8006
   ss -tulnp | grep 8006
5. Tested GUI locally
   curl -k https://127.0.0.1:8006
6. Tested connectivity
   ping 192.168.x.x → no response
   ping 192.168.x.x from another machine → Destination Host Unreachable
7. Checked ARP table
   arp -n
   ip neigh
8. Flushed ARP
   ip neigh flush all
9. Bridge + NIC reset
   ip link set vmbr0 down
   ip link set eno2 down
   sleep 02
   ip link set eno2 up
   ip link set vmbr0 up
10. Reloaded network config
    ifreload -a
11. Restarted networking
    systemctl restart networking
12. Full interface reset
    ifdown vmbr0
    ifdown eno2
    ifup eno2
    ifup vmbr0
13. Tried adding default route manually
    ip route add default via 192.168.x.x dev vmbr0
14. Restarted SSH
    systemctl restart ssh
    systemctl enable ssh
15. Rebooted system
16. Reviewed /etc/network/interfaces
17. Physical Removed NIC from Port re-add after 30seconds

All of the above appear to be correctly configured and behaving as expected.

What I suspect:​

At this point, I believe the issue might be related to Layer 2 (bridge / MAC / switch / ARP behavior), possibly triggered after introducing vmbr1.

Questions:​

1. Could adding vmbr1 (even without IP/gateway) disrupt vmbr0 at Layer 2?
2. Is it possible the physical NIC lost proper bridge association even if config looks correct?
3. Could this be a MAC/ARP issue on the upstream router or switch?
4. Should I temporarily remove/comment out vmbr1 to test recovery?
5. What is the recommended way to isolate a VM on a separate subnet while routing through another VM (Ubuntu in this case)?
6. Could this be related to firewall rules (Proxmox host, bridge firewall, or external network)?
7. Are there specific logs (system logs, networking logs, or Proxmox logs) I should check to identify what broke after applying the bridge configuration?

Additional info:​

• vmbr0 → 192.168.x.0/24
• Ubuntu VM handles Tailscale + routing
• Planned new subnet → 10.0.0.0/24 via vmbr1



[heythiscomputes]

Looking at the outputs you have provided, it does seem that you have a second unused NIC in your PVE server. Were you planning to use it? Should eno1or eno2 be the physical NIC you want to associate with vmbr1?

If you are never looking to give these VMs a traditional gateway or outbound access then you could just make a VLAN to put them on even if you don't have a VLAN compatible switch. Simple SDN zones might give you a solution as well if you are not keen on VLANs.

Let me know if that helps. If not, please send the output of /etc/network/interfaces



[john0017]

Looking at the outputs you have provided, it does seem that you have a second unused NIC in your PVE server. Were you planning to use it? Should eno1or eno2 be the physical NIC you want to associate with vmbr1?

If you are never looking to give these VMs a traditional gateway or outbound access then you could just make a VLAN to put them on even if you don't have a VLAN compatible switch. Simple SDN zones might give you a solution as well if you are not keen on VLANs.

Let me know if that helps. If not, please send the output of /etc/network/interfaces

Thanks for your reply.

I think there may be a misunderstanding of the issue I’m facing. The main problem is not about designing the new network, but that I lost connectivity to the Proxmox host itself right after creating vmbr1.

Key symptoms:

• Proxmox host cannot ping the default gateway
• Other machines get “Destination Host Unreachable” when pinging the host
• All VMs are still running and reachable (including via Tailscale)
• Issue started immediately after adding vmbr1

Because of this, I believe the problem is related to vmbr0 / physical NIC / bridge configuration, rather than how to structure the new network.

Your suggestions about VLANs or SDN are useful for network design, but they don’t help diagnose or resolve the current connectivity loss on the host.

Regarding the NIC point: I understand the question about eno1 vs eno2, but I’ve already verified that the intended physical NIC is still associated with vmbr0.

If helpful, I can share my /etc/network/interfaces for a more precise look at what might have broken.



[heythiscomputes]

Let me be more direct. My primary suspicions were:

A: you are trying to use the same physical NIC for both vmbr0 and vmbr1

or

B: you have disassociated the proper physical NIC with vmbr0

So my question is, what NIC is associated with vmbr1 at this time? None?

Pardon me if the following is redundant information to you, but I do want to be sure we are on the same page:

Each vmbrX should be associated with it's own physical NIC or VLAN (or none at all), not the same physical NIC for two separate Linux bridges. Using a tool like the SDN can also streamline the use of this single Linux bridge in a flat network, by leveraging Simple Zones that use NAT for multiple subnets, like I mentioned previously. Essentially, think of a Linux bridge as a flat, dumb switch, without VLAN tagging, everything that comes in by default is going to be treated like it's on the same layer 2. Hence the need for VLANs, NAT, or separate NICs to allow for multiple subnets.

By sending the /etc/network/interfaces file we could at least rule out the possibilities I mentioned above. However, if the possibilities I listed are not the underlying issue in your opinion, please do not hesitate to clarify.



[john0017]

Let me be more direct. My primary suspicions were:

A: you are trying to use the same physical NIC for both vmbr0 and vmbr1

or

B: you have disassociated the proper physical NIC with vmbr0

So my question is, what NIC is associated with vmbr1 at this time? None?

Pardon me if the following is redundant information to you, but I do want to be sure we are on the same page:

Each vmbrX should be associated with it's own physical NIC or VLAN (or none at all), not the same physical NIC for two separate Linux bridges. Using a tool like the SDN can also streamline the use of this single Linux bridge in a flat network, by leveraging Simple Zones that use NAT for multiple subnets, like I mentioned previously. Essentially, think of a Linux bridge as a flat, dumb switch, without VLAN tagging, everything that comes in by default is going to be treated like it's on the same layer 2. Hence the need for VLANs, NAT, or separate NICs to allow for multiple subnets.

By sending the /etc/network/interfaces file we could at least rule out the possibilities I mentioned above. However, if the possibilities I listed are not the underlying issue in your opinion, please do not hesitate to clarify.

Thanks, this clarifies your suspicion and it makes sense.

To answer your question: vmbr1 currently has no physical NIC associated with it — it was intended to be handled entirely inside the Ubuntu VM (routing/NAT).

Also, I am not intentionally using the same physical NIC for both bridges, and from what I can see, the correct NIC is still assigned to vmbr0.

That said, your point about possibly disassociating the NIC from vmbr0 is valid and aligns with the behavior I’m seeing:

• Host lost connectivity to the gateway
• Other machines cannot reach the host
• VMs are still running and reachable

So I agree the issue likely lies in how the physical NIC is bound to vmbr0.

To move forward and rule this out properly, here is my /etc/network/interfaces:



[Onslow]

@john0017
In your screenshot we can see that the gateway address is in a different network (192.168.x.1) than the iface's address (192.16.x.126/24) (note the second octets: 168 != 16)
It has no chance to work



[PaddraighNet]

Onslow spotted it nicely. The typo between 192.168.x.1 as your gateway and 192.16.x.126 as the host IP means the gateway sits in a completely different subnet - the host cannot reach it at all. Since the web UI is not reachable you will need to fix it directly on the machine. If the server has a monitor and keyboard, log in from the console and edit /etc/network/interfaces - find the vmbr0 block and make sure the address line and the gateway line share the same /24 subnet. Then run systemctl restart networking or simply reboot. If you have IPMI or similar out-of-band management, you can do the same remotely through that. Once you correct the IP or gateway to match each other, connectivity should come straight back.



[heythiscomputes]

Thank you for providing the /etc/network/interfaces file. As both of these folks pointed out, a simple typo that can easily be corrected by editing the file and reloading was leading to this headache.

Please provide an update if are facing any further issue.

Cheers



[john0017]

@john0017
In your screenshot we can see that the gateway address is in a different network (192.168.x.1) than the iface's address (192.16.x.126/24) (note the second octets: 168 != 16)
It has no chance to work

Dear Onslow,

I sincerely appreciate your guidance in helping me resolve my Proxmox networking issue. Your advice and insights were invaluable, and thanks to your support, the system is now fully operational.

Thank you again for your time and expertise.

Best regards,
john0017



[Onslow]

@john0017 I'm glad I helped you.

As the issue has been solved, you are welcome to mark the thread so, by selecting the prefix "SOLVED" from the drop-down menu at the topic field .
