Increase in IO pressure after 9.2.3 update

[deebsr]

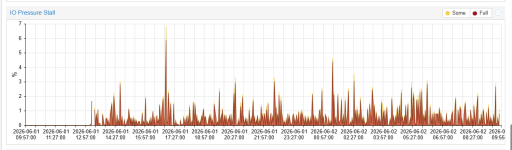

After updating a host from 9.1.4 > 9.2.3 I'm noticing that there is now a noticeable increase in IO pressure.

Update was done an host rebooting at around 2026-06-01@13:00

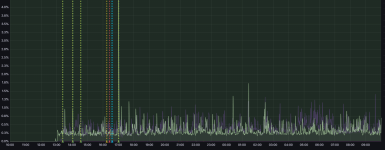

Same thing with IO Delay:



Anyone else who have updated have the same issue?


Thanks for your help



[_derTim]

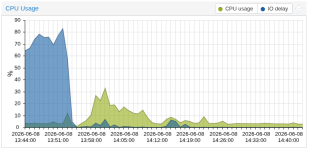

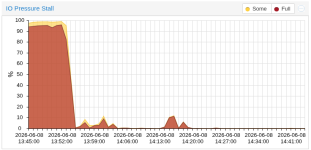

For me its even worse. 70% to 90% IO delay with round about 95% Full IO Pressure on all VMs. Interestingly I don't see IO Pressure on the LXC containers.

iostat shows the iowait as well but the values do not reflect this high utilization rate IMHO:

avg-cpu:  %user   %nice %system %iowait  %steal   %idle
           1.11    0.00    0.41   92.45    0.00    6.04

Device             tps    MB_read/s    MB_wrtn/s    MB_dscd/s    MB_read    MB_wrtn    MB_dscd
nvme0n1          77.50         0.00         0.41         0.00          0          0          0
sda               7.50         0.00         0.04         0.00          0          0          0


avg-cpu:  %user   %nice %system %iowait  %steal   %idle
           1.23    0.00    0.88   91.85    0.00    6.04

Device             tps    MB_read/s    MB_wrtn/s    MB_dscd/s    MB_read    MB_wrtn    MB_dscd
nvme0n1          16.50         0.00         0.07         0.00          0          0          0
sda               6.00         0.00         0.02         0.00          0          0          0


avg-cpu:  %user   %nice %system %iowait  %steal   %idle
           1.23    0.00    0.38   92.33    0.00    6.06

Device             tps    MB_read/s    MB_wrtn/s    MB_dscd/s    MB_read    MB_wrtn    MB_dscd
nvme0n1          17.50         0.00         0.09         0.00          0          0          0
sda               0.50         0.00         0.00         0.00          0          0          0

# pveversion --verbose
proxmox-ve: 9.2.0 (running kernel: 6.14.11-9-pve)
pve-manager: 9.2.3 (running version: 9.2.3/d0fde103346cf89a)
proxmox-kernel-helper: 9.2.0
proxmox-kernel-7.0: 7.0.6-2
proxmox-kernel-7.0.6-2-pve-signed: 7.0.6-2
proxmox-kernel-7.0.0-3-pve-signed: 7.0.0-3
proxmox-kernel-6.17: 6.17.13-13
proxmox-kernel-6.17.13-13-pve-signed: 6.17.13-13
proxmox-kernel-6.14: 6.14.11-9
proxmox-kernel-6.14.11-9-pve-signed: 6.14.11-9
proxmox-kernel-6.14.11-5-pve-signed: 6.14.11-5
proxmox-kernel-6.14.8-2-pve: 6.14.8-2
proxmox-kernel-6.8.12-17-pve: 6.8.12-17
proxmox-kernel-6.8: 6.8.12-17
amd64-microcode: 3.20251202.1~bpo13+1
ceph-fuse: 19.2.3-pve1
corosync: 3.1.10-pve2
criu: 4.1.1-1
frr-pythontools: 10.6.1-1+pve2
ifupdown2: 3.3.0-1+pmx12
ksm-control-daemon: 1.5-1
libjs-extjs: 7.0.0-5
libproxmox-acme-perl: 1.7.1
libproxmox-backup-qemu0: 2.0.2
libproxmox-rs-perl: 0.4.1
libpve-access-control: 9.1.1
libpve-apiclient-perl: 3.4.2
libpve-cluster-api-perl: 9.1.6
libpve-cluster-perl: 9.1.6
libpve-common-perl: 9.1.13
libpve-guest-common-perl: 6.0.3
libpve-http-server-perl: 6.0.5
libpve-network-perl: 1.6.6
libpve-notify-perl: 9.1.6
libpve-rs-perl: 0.15.3
libpve-storage-perl: 9.1.5
libspice-server1: 0.15.2-1+b1
lvm2: 2.03.31-2+pmx1
lxc-pve: 7.0.0-2
lxcfs: 7.0.0-pve1
novnc-pve: 1.7.0-1
proxmox-backup-client: 4.2.1-1
proxmox-backup-file-restore: 4.2.1-1
proxmox-backup-restore-image: 1.0.0
proxmox-firewall: 1.2.3
proxmox-kernel-helper: 9.2.0
proxmox-mail-forward: 1.0.3
proxmox-mini-journalreader: 1.6
proxmox-offline-mirror-helper: 0.7.4
proxmox-widget-toolkit: 5.2.3
pve-cluster: 9.1.6
pve-container: 6.1.10
pve-docs: 9.2.2
pve-edk2-firmware: 4.2025.05-2
pve-esxi-import-tools: 1.0.1
pve-firewall: 6.0.4
pve-firmware: 3.18-4
pve-ha-manager: 5.2.4
pve-i18n: 3.7.5
pve-qemu-kvm: 11.0.0-4
pve-xtermjs: 6.0.0-1
qemu-server: 9.1.16
smartmontools: 7.5-pve2
spiceterm: 3.4.2
swtpm: 0.8.0+pve3
vncterm: 1.9.2
zfsutils-linux: 2.4.2-pve1



[_derTim]

This is a random screenshot of top. I really cannot find any hint what may cause this high iowait. There is just nothing doing heavy io on my server.



[fiona]

Hi @deebsr,
please see:

Post in thread 'Opt-in Linux 7.0 Kernel for Proxmox VE 9 available'

May 26, 2026

Hi,

Everything seems to be working fine. However, since the reboot required to apply the update, I have noticed an increase in “IO Pressure Stall”.
The update correspond to the begin of the "red mountain"

with QEMU 10.2, there was a switch to using io_uring for the IO thread event loops and the IO pressure/wait accounting is set via the io_uring subsystem now. It's a different kernel subsystem from before, so it's not unexpected if it's different.

• fiona



[fiona]

Hi @_derTim,
but it shouldn't be this high unless your guests are actually under pressure. Is the issue still present with newer kernels, i.e. 6.17 or 7.0? Please share your /etc/pve/storage.cfg and example VM configuration(s). What kind of workload is running in the guests?



[_derTim]

Hey @fiona, thanks for your reply. All VMs are affected by this issue, from databases to Home Assistant to web servers or DNS. The workload does not matter.
Since I'll be away for a few days and haven't noticed any significant drop in performance, I'll provide the information early next week.



[deebsr]

Hi @deebsr,
please see:

Post in thread 'Opt-in Linux 7.0 Kernel for Proxmox VE 9 available'

May 26, 2026

Hi,

Everything seems to be working fine. However, since the reboot required to apply the update, I have noticed an increase in “IO Pressure Stall”.
The update correspond to the begin of the "red mountain"

with QEMU 10.2, there was a switch to using io_uring for the IO thread event loops and the IO pressure/wait accounting is set via the io_uring subsystem now. It's a different kernel subsystem from before, so it's not unexpected if it's different.

• fiona

@fiona Ok good to know....Just curious as to what would be acceptable IO Delay? Is it still <=5%? or has this changed?
Can we still have spikes that go over 5% briefly? or is this still not a good sign?



[deebsr]

Hi @deebsr,
please see:

Post in thread 'Opt-in Linux 7.0 Kernel for Proxmox VE 9 available'

May 26, 2026

Hi,

Everything seems to be working fine. However, since the reboot required to apply the update, I have noticed an increase in “IO Pressure Stall”.
The update correspond to the begin of the "red mountain"

with QEMU 10.2, there was a switch to using io_uring for the IO thread event loops and the IO pressure/wait accounting is set via the io_uring subsystem now. It's a different kernel subsystem from before, so it's not unexpected if it's different.

• fiona

@fiona Thanks for the reply.....I was wondering if this kind of thing should be called out in release notes just so others are aware of this change when they update? It seems to be a fundamental shift in how this is reported and seeing a sudden jump could lead to lots of support calls for you team.



[Domino]

I just checked all my upgraded nodes, most are less than 0.05% on IO pressure stall, and IO load barely cracks 1%, its at 0% most the time.

I'm running Epyc's (rome/milan) and 5950x's, guests are doing average workloads, storage tiers are all local nvmes with some via NVMe-oF.

In my case, I feel no difference between pre 9.2 and current.

Also have a couple 13500Ts and a bunch of 8500Ts, same, no issues.



[fiona]

If you don't see an actual performance regression, it's fine. It's just a metric after all, that's highly dependent on the concrete storage setup and workload. Again, it's just a different subsystem that's used and the accounting is done differently there. In fact, if io_uring is faster submitting requests, then the CPU might even wait a larger percentage of its time on the IO, just because it spends less time submitting Still, the values from @_derTim do seem to high and should be investigated.
