About creating new Storage

[vittorio zambon]

I apologize if the question is trivial but for days I have been searching the web but I find no answers. I need to add mass storage to my Proxmox box and I followed this guide in creating a logical volume "inside" a volume group: https://pve.proxmox.com/wiki/Extending_Local_Container_Storage.

However at this point, my Proxmox web-GUI does not yet see any new usable (local) storage. It appears to be empty and "Inactive"

So I tried to follow this guide where, however, I do NOT find any indication how to "connect" the "Proxmox-level-storage" of <ow-storage-pxmx> to the space provided by an LV: https://pve.proxmox.com/wiki/Storage

Maybe it depends on the fact that the state is "inactive"? Unfortunately I can not change this flag.

pvesm status
Name Type Status Total Used Available%
local dir active 17414928 1391252 15116004 7.99%
local-lvm lvmthin active 36261888 0 36261888 0.00%
ow-storage-pxmx lvmthin inactive 0 0 0 0.00%

The following command does not resolve my issue; it seems to be aimed elsewhere.

pvesm set ow-storage-pxmx --disable false

Here is the content of my file: /etc/pve/storage.cfg

lvm: ow-storage-pxmx
thinpool lvol
vgname ow-vg
content images

Thanks!



[dcsapak]

my Proxmox web-GUI does not yet see any new usable (local) storage

where did you expect it to show?
it should show in the tree as ow-storage-pxmx (NODENAME)

can you also post the output of

lvs
vgs



[vittorio zambon]

First of all, thank you for your kind and quick reply !

I did actually see that new storage in the tree area exactly as you expected it. But the matter is that it's icon is associated to a question mark (that replace the usual "fullness-meter" and in the right area it's details show as being unavailable (inactive and with size equal to 0).

But I believe that the reason for this is that I messed up with file /etc/pve/storage.cfg during my experiments. So actually it's no surprise. I was trying to create a Directory-type storage upon an LVM that I had just created; which is probably nonsense. At last I found out that maybe the only way to expand the "directory.type" storage i to expand the pve/root LVM and that no other would do. Am I right?

​

Now, I must admit that I cannot show lvs & vgs any more beacause I deleted that configuration and managed to create one that suits my immediate needs. So my interest now is purely theoretical: how are the entities in LVM-thin (and "Directory", and, NFS, iSCSI, GlusterFS, RBD, RBD, ZFS, rtc...) defined in PVE ?

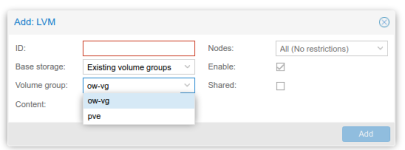

For what concerns LVM (Not Thin) I get the following pop-up that eases my choice:

But how do I provide the other types of PVE-Storage with "logical space"?​

I tried with LVM-thin but I get no options in the Thin-Pool datafield! And I failed to create one....

So, where can I read information concerning how to provide this pop-up storage-space for each different PVE-storage-type ?

Thanks a lot !



[Xahid]

I guess you need to understand the Storage Model of PVE



[vittorio zambon]

You are right, of course! I read that wiki page days ago, but had understood it far too little! Now it's much clearer to me ..... at least in principle. In time I will try the various types of underlying storage.

But still the dir-type is not so explicitly explained, but I guess that the only way of expanding it is:
1) follow this hint from the wiki: You can mount additional storages via standard linux /etc/fstab, and then define a directory storage for that mount point. This way you can use any file system supported by Linux.
2) extend the / (root) partition inside the pve/root LVM somehow (not easy nor advisable, I suppose).

Please let me know if am almost right, Thanks!



[Xahid]

Extending the root partition is depending on your requirement, if you need space at root partition, since its LVM based you can follow any guide to extend the LVM.
