ZFS and real storage usage

[theRealNo]

Hi,

I'm using ZFS with 2 nvme drives showing as 2x 3.8TB in RAID1 (mirroring). I can't make sense of storage usage inside the VMs and storage reported by ZFS. (FOUND WORKING SOLUTION, SEE BELOW)

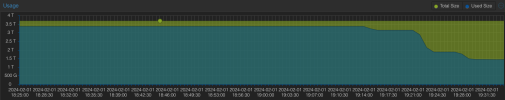

Proxmox GUI shows

zfs list:

NAME                          USED  AVAIL  REFER  MOUNTPOINT
rpool                        2.93T   428G   104K  /rpool
rpool/ROOT                   1.87G   428G    96K  /rpool/ROOT
rpool/ROOT/pve-1             1.87G   428G  1.87G  /
rpool/data                   2.92T   428G    96K  /rpool/data
rpool/data/vm-101-disk-0     1.07G   428G  1.07G  -
rpool/data/vm-203-cloudinit    72K   428G    72K  -
rpool/data/vm-203-disk-0      700G   428G   700G  -
rpool/data/vm-206-cloudinit    72K   428G    72K  -
rpool/data/vm-206-disk-0      854G   428G   854G  -
rpool/data/vm-301-cloudinit    72K   428G    72K  -
rpool/data/vm-301-disk-0      810G   428G   810G  -
rpool/data/vm-302-cloudinit    72K   428G    72K  -
rpool/data/vm-302-disk-0      629G   428G   629G  -
rpool/var-lib-vz             2.61G   428G  2.61G  /var/lib/vz

Inside vm 203:

Filesystem      Size  Used Avail Use% Mounted on
tmpfs           2.4G  1.2M  2.4G   1% /run
/dev/sda1       778G  487G  291G  63% /
tmpfs            12G     0   12G   0% /dev/shm
tmpfs           5.0M     0  5.0M   0% /run/lock
/dev/sda15      105M  6.1M   99M   6% /boot/efi
tmpfs           2.4G  4.0K  2.4G   1% /run/user/1000

Inside vm 206:

Filesystem      Size  Used Avail Use% Mounted on
tmpfs           1.9G  1.5M  1.9G   1% /run
/dev/sda1       958G  494G  464G  52% /
tmpfs           9.4G     0  9.4G   0% /dev/shm
tmpfs           5.0M     0  5.0M   0% /run/lock
/dev/sda15      105M  6.1M   99M   6% /boot/efi
tmpfs           1.9G  4.0K  1.9G   1% /run/user/1001

Inside vm 301:

Filesystem      Size  Used Avail Use% Mounted on
tmpfs           1.7G  1.3M  1.7G   1% /run
/dev/sda1       972G  159G  813G  17% /
tmpfs           8.3G     0  8.3G   0% /dev/shm
tmpfs           5.0M     0  5.0M   0% /run/lock
/dev/sda15      105M  6.1M   99M   6% /boot/efi
tmpfs           1.7G  4.0K  1.7G   1% /run/user/1000

Inside vm 302:

Filesystem      Size  Used Avail Use% Mounted on
tmpfs           1.7G  1.3M  1.7G   1% /run
/dev/sda1       972G  161G  811G  17% /
tmpfs           8.3G     0  8.3G   0% /dev/shm
tmpfs           5.0M     0  5.0M   0% /run/lock
/dev/sda15      105M  6.1M   99M   6% /boot/efi
tmpfs           1.7G  4.0K  1.7G   1% /run/user/1000

Now 494G + 487G + 159G + 161G = 1.3 TB, ZFS shows 2.93TB used, why such huge difference ? I've checked for snapshots, clones or anything that may use storage, but there is nothing, also thin provisioning is enabled and refreservation is none, so it shouldn't use so much space. I also triggered trim manually. I can't find where this usage is coming from.

SOLUTION:
After a bit of research and configuration, I've managed to enable TRIM support such that both the guest and host report the correct space usage, which reflects the actual trimmed and unused space. Here's what I did:

VM Configuration: I ensured that my VM disk controller was set to VirtIO SCSI, which supports TRIM. I also verified that the discard option was enabled for the disks.

Scheduled TRIM: Both the guest and the host systems have fstrim.timer enabled and active, which is scheduled to run weekly. This is a great way to batch discard operations to avoid the performance penalty of synchronous discards.

Manual TRIM Execution: To immediately reclaim space, I ran

sudo fstrim -v /

on the guest, which triggered the TRIM operation and successfully freed up the unused blocks (this worked only after enabling discard and restarting the VMs).

Host Configuration: Initially, I was concerned about the autotrim setting on my ZFS host due to potential performance issues with synchronous TRIM operations. However, the combination of the discard option in the VMs and the scheduled fstrim on both host and guests seems to handle the TRIM operations effectively.

It's satisfying to see the setup working harmoniously and efficiently managing the SSD space!
