Visual information within the GUI for a node in Maintenance mode

unix3

New Member
Oct 30, 2024
3
1
3
Hello,
I have a Proxmox cluster made up of 3 nodes,

Code:
Cluster information
-------------------
Name:             Proxmox-cluster
Config Version:   5
Transport:        knet
Secure auth:      on


Quorum information
------------------
Date:             Wed Nov 13 18:08:47 2024
Quorum provider:  corosync_votequorum
Nodes:            3
Node ID:          0x00000002
Ring ID:          1.120
Quorate:          Yes


Votequorum information
----------------------
Expected votes:   3
Highest expected: 3
Total votes:      3
Quorum:           2
Flags:            Quorate


Membership information
----------------------
    Nodeid      Votes Name
0x00000001          1 10.0.2.10
0x00000002          1 10.0.2.20 (local)
0x00000003          1 10.0.2.30

I wanted to test the maintenance functionality so I created a HA-group named "Cluster-HA" and inserted one VM(vm:200) as a resource to protect.
At this point, from one node I gave the command ha-manager status to check the status

Code:
quorum OK
master proxmox2 (active, Wed Nov 13 18:56:43 2024)
lrm proxmox1 (idle, Wed Nov 13 18:56:49 2024)
lrm proxmox2 (active, Wed Nov 13 18:56:44 2024)
lrm proxmox3 (active, Wed Nov 13 18:56:48 2024)
service vm:200 (proxmox3, started)

so I put the node into mainteance mode

ha-manager crm-command node-maintenance enable proxmox3

and I rechecked the ha-manager status

Code:
quorum OK
master proxmox2 (active, Wed Nov 13 18:57:03 2024)
lrm proxmox1 (idle, Wed Nov 13 18:57:04 2024)
lrm proxmox2 (active, Wed Nov 13 18:57:04 2024)
lrm proxmox3 (maintenance mode, Wed Nov 13 18:56:58 2024)
service vm:200 (proxmox3, migrate)

everything works correctly and the VM is migrated to another node

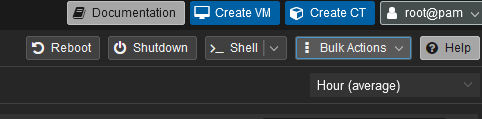

The thing that I find weird is that from the console below a screenshot:


there is no warning or badge indicating that proxmox3 node is in maintenance, it seems like a more serious shortcoming to me!
It seems very simplistic to me to have to go inside Datacenter-->HA to understand the status of a node

am I doing something wrong?
