Hello,
Please help me ASAP to solve this issue after an upgrade to latest Proxmox i got following issue:

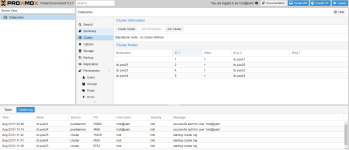

In web interface I cannot see the cluster and even local VM in web interface but on console everything is fine on all four nodes. I tried reboot and restart of services
root@itc-pve21:~# pvecm status
Quorum information
------------------
Date: Thu Aug 23 01:29:34 2018
Quorum provider: corosync_votequorum
Nodes: 4
Node ID: 0x00000001
Ring ID: 1/14256
Quorate: Yes
Votequorum information
----------------------
Expected votes: 4
Highest expected: 4
Total votes: 4
Quorum: 3
Flags: Quorate
Membership information
----------------------
Nodeid Votes Name
0x00000001 1 192.168.30.60 (local)
0x00000004 1 192.168.30.63
0x00000005 1 192.168.30.64
0x00000002 1 192.168.30.67
root@itc-pve21:~# qm list
VMID NAME STATUS MEM(MB) BOOTDISK(GB) PID
112 test-guacamole stopped 2048 80.00 0
129 dev1.syd.lan stopped 4096 0.00 0
130 route-reflector-arista stopped 8196 5.00 0
132 rr-junos stopped 8196 16.00 0
1003 librenms-monitoring-cephn stopped 6144 100.00 0
2200 radius-tacacs stopped 4096 100.00 0
root@itc-pve21:~# pvesh get /nodes
┌───────────┬────────┬───────┬───────┬────────┬───────────┬────────────┬─────────────────────────────────────────────────────────────────────────────────────────────────┬────────────┐
│ node │ status │ cpu │ level │ maxcpu │ maxmem │ mem │ ssl_fingerprint │ uptime │
├───────────┼────────┼───────┼───────┼────────┼───────────┼────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────┼────────────┤
│ itc-pve21 │ online │ 0.49% │ │ 8 │ 15.66 GiB │ 912.53 MiB │ 76:1B:9F:2A:9A:38:4E:CB:3A:58:86:8D
5:CE:85:6C:E5:12:BB:B2:0F:23:C4:4C:17:EB:C9:E9:43:AF:35:C3 │ 1h 29m 2s │
├───────────┼────────┼───────┼───────┼────────┼───────────┼────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────┼────────────┤
│ itc-pve23 │ online │ 0.20% │ │ 16 │ 94.40 GiB │ 1.29 GiB │ 5F:C9:1E:F3:6D
8:44:99:F4:FE:34:92:30:2A:E1:4B:7C:B4:80:1A:FD:10
F:A7:12:6A:13:A6:84:5F:A0:20 │ 37m 43s │
├───────────┼────────┼───────┼───────┼────────┼───────────┼────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────┼────────────┤
│ itc-pve24 │ online │ 0.80% │ │ 16 │ 94.40 GiB │ 1.32 GiB │ 65:2F
B:90:C6:2D:5F:4C:48:5B
3:2E:72:5E:FA:2B:FF:B1:B7:6A:83:BD:1A:CE:3C:70:97:BF:49:42:23:8E │ 27m 29s │
├───────────┼────────┼───────┼───────┼────────┼───────────┼────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────┼────────────┤
│ itc-pve25 │ online │ 0.16% │ │ 16 │ 94.40 GiB │ 1.27 GiB │ 69:5F:44:61:72:00:1F:72:71:0F:F5:54:95:06:F3:01:5C:61:6C:9A:B3:2C:5F:22
7:95:C5:B2:52:B4:B3:68 │ 1h 19m 28s │
└───────────┴────────┴───────┴───────┴────────┴───────────┴────────────┴─────────────────────────────────────────────────────────────────────────────────────────────────┴────────────┘
root@itc-pve21:~# pvesh get /version
┌─────────┬──────────┐
│ key │ value │
├─────────┼──────────┤
│ release │ 7 │
├─────────┼──────────┤
│ repoid │ 8d88e66a │
├─────────┼──────────┤
│ version │ 5.2 │
└─────────┴──────────┘
later edit:
I downgraded pve-manager to 5.2-5 and now shows everything. But the issue is also in 5.2-6.
Please help me ASAP to solve this issue after an upgrade to latest Proxmox i got following issue:
In web interface I cannot see the cluster and even local VM in web interface but on console everything is fine on all four nodes. I tried reboot and restart of services
root@itc-pve21:~# pvecm status
Quorum information
------------------
Date: Thu Aug 23 01:29:34 2018
Quorum provider: corosync_votequorum
Nodes: 4
Node ID: 0x00000001
Ring ID: 1/14256
Quorate: Yes
Votequorum information
----------------------
Expected votes: 4
Highest expected: 4
Total votes: 4
Quorum: 3
Flags: Quorate
Membership information
----------------------
Nodeid Votes Name
0x00000001 1 192.168.30.60 (local)
0x00000004 1 192.168.30.63
0x00000005 1 192.168.30.64
0x00000002 1 192.168.30.67
root@itc-pve21:~# qm list
VMID NAME STATUS MEM(MB) BOOTDISK(GB) PID
112 test-guacamole stopped 2048 80.00 0
129 dev1.syd.lan stopped 4096 0.00 0
130 route-reflector-arista stopped 8196 5.00 0
132 rr-junos stopped 8196 16.00 0
1003 librenms-monitoring-cephn stopped 6144 100.00 0
2200 radius-tacacs stopped 4096 100.00 0
root@itc-pve21:~# pvesh get /nodes
┌───────────┬────────┬───────┬───────┬────────┬───────────┬────────────┬─────────────────────────────────────────────────────────────────────────────────────────────────┬────────────┐
│ node │ status │ cpu │ level │ maxcpu │ maxmem │ mem │ ssl_fingerprint │ uptime │
├───────────┼────────┼───────┼───────┼────────┼───────────┼────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────┼────────────┤
│ itc-pve21 │ online │ 0.49% │ │ 8 │ 15.66 GiB │ 912.53 MiB │ 76:1B:9F:2A:9A:38:4E:CB:3A:58:86:8D
├───────────┼────────┼───────┼───────┼────────┼───────────┼────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────┼────────────┤
│ itc-pve23 │ online │ 0.20% │ │ 16 │ 94.40 GiB │ 1.29 GiB │ 5F:C9:1E:F3:6D
├───────────┼────────┼───────┼───────┼────────┼───────────┼────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────┼────────────┤
│ itc-pve24 │ online │ 0.80% │ │ 16 │ 94.40 GiB │ 1.32 GiB │ 65:2F
├───────────┼────────┼───────┼───────┼────────┼───────────┼────────────┼─────────────────────────────────────────────────────────────────────────────────────────────────┼────────────┤
│ itc-pve25 │ online │ 0.16% │ │ 16 │ 94.40 GiB │ 1.27 GiB │ 69:5F:44:61:72:00:1F:72:71:0F:F5:54:95:06:F3:01:5C:61:6C:9A:B3:2C:5F:22
└───────────┴────────┴───────┴───────┴────────┴───────────┴────────────┴─────────────────────────────────────────────────────────────────────────────────────────────────┴────────────┘
root@itc-pve21:~# pvesh get /version
┌─────────┬──────────┐
│ key │ value │
├─────────┼──────────┤
│ release │ 7 │
├─────────┼──────────┤
│ repoid │ 8d88e66a │
├─────────┼──────────┤
│ version │ 5.2 │
└─────────┴──────────┘
later edit:
I downgraded pve-manager to 5.2-5 and now shows everything. But the issue is also in 5.2-6.
