[SOLVED] Passthrough of MCIO based SATA controller not working. MSIX PBA outside of specified BAR

[scyto]

I have an AMD Epyc 9155 Turin CPU on an ASROCK GENOAD8UD-2T/X550 motherboard.

Two MCIO ports can be configured for SATA mode (each port is then seen as two 4 lane SATA controllers).

When being passed through to a VM the VM would not start with:

error writing '1' to '/sys/bus/pci/devices/0000:42:00.0/reset': Inappropriate ioctl for device
failed to reset PCI device '0000:42:00.0', but trying to continue as not all devices need a reset
kvm: -device vfio-pci,host=0000:42:00.0,id=hostpci0.0,bus=ich9-pcie-port-1,addr=0x0.0,multifunction=on: vfio 0000:42:00.0: hardware reports invalid configuration, MSIX PBA outside of specified BAR
TASK ERROR: start failed: QEMU exited with code 1

this occured for both 42:00.0 and 42:00.1

this is a bug likely caused by invalid MSIX PBA settings for the device on the motherboard as per this comment https://bugs.launchpad.net/qemu/+bug/1894869/comments/4

as in this thread https://forum.proxmox.com/threads/pci-passtrough-a100.143838/

amending my vm conf file to add the following was the solution

args: -set device.hostpci0.x-msix-relocation=bar2 -set device.hostpci1.x-msix-relocation=bar2

where the two SATA devices were defind in the conf like this

hostpci0: 0000:42:00.0,pcie=1
hostpci1: 0000:42:00.1,pcie=1

I am logging this incase anyone else hits this, and for incase i ever forget this and do a google search later



[scyto]

I literally fogot I had hit this and fixed it, I found the thread by search when i hit the same issue an hour or so ago!
(the Feb truenas vitualization blew up shortly after that post IIRC)

So to make this an additive reply

It is also importat that devices like 42:00.0 and 42:00.1 are added as discrete devices, do not use 42:00 and choose to pass all functions, that doesn't work for this motheboard.

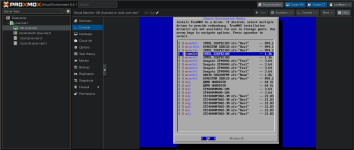

Once i had done this <grin>
