I am getting no internet access from proxmox host, so I have setup OpenWrt VM with IP 10.10.8.1, what I have tried :
- bridged vmbr0 with lan1 lan2 and wan bridge and yet still no internet access
- change the ip of lan1 lan2 bridge with 10.10.8.1/21, now 10.10.8.1 is ping-able, and change proxmox dns into 10.10.8.1 but still not access
Internet access is working fine inside the OpenWrt Network 10.10.8.1/21 lan1 and lan2

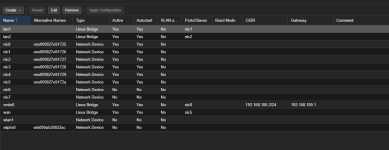

Here is my setup :
VM :
- bridged vmbr0 with lan1 lan2 and wan bridge and yet still no internet access
- change the ip of lan1 lan2 bridge with 10.10.8.1/21, now 10.10.8.1 is ping-able, and change proxmox dns into 10.10.8.1 but still not access
Internet access is working fine inside the OpenWrt Network 10.10.8.1/21 lan1 and lan2
Here is my setup :
VM :
Code:
root@pve:~# cat /etc/resolv.conf
search sentinel.sentinel
nameserver 192.168.100.1
nameserver 10.10.8.1
Code:
root@pve:~# cat /etc/network/interfaces
# network interface settings; autogenerated
# Please do NOT modify this file directly, unless you know what
# you're doing.
#
# If you want to manage parts of the network configuration manually,
# please utilize the 'source' or 'source-directory' directives to do
# so.
# PVE will preserve these directives, but will NOT read its network
# configuration from sourced files, so do not attempt to move any of
# the PVE managed interfaces into external files!
auto lo
iface lo inet loopback
auto nic5
iface nic5 inet manual
auto nic0
iface nic0 inet manual
auto nic1
iface nic1 inet manual
auto nic2
iface nic2 inet manual
auto nic3
iface nic3 inet manual
auto nic4
iface nic4 inet manual
iface nic7 inet manual
iface nic6 inet manual
iface wlan1 inet manual
iface wlp5s0 inet manual
auto vmbr0
iface vmbr0 inet static
address 192.168.100.2/24
gateway 192.168.100.1
bridge-ports nic0
bridge-stp off
bridge-fd 0
auto wan
iface wan inet manual
bridge-ports nic5
bridge-stp off
bridge-fd 0
auto lan1
iface lan1 inet manual
bridge-ports nic1
bridge-stp off
bridge-fd 0
auto lan2
iface lan2 inet manual
bridge-ports nic2
bridge-stp off
bridge-fd 0
source /etc/network/interfaces.d/*
