Hi
We have an EPYC 9554 based Cluster with 3x WD SN650 - NVME PCI-Gen4 15.36TB in each server. all backed by 100G Ethernet on Mellanox 2700 CX4 cards.
output of lspci ---
lspci | grep Ethernet
03:00.0 Ethernet controller: Broadcom Inc. and subsidiaries BCM57416 NetXtreme-E Dual-Media 10G RDMA Ethernet Controller (rev 01)
03:00.1 Ethernet controller: Broadcom Inc. and subsidiaries BCM57416 NetXtreme-E Dual-Media 10G RDMA Ethernet Controller (rev 01)
41:00.0 Ethernet controller: Mellanox Technologies MT27700 Family [ConnectX-4]
41:00.1 Ethernet controller: Mellanox Technologies MT27700 Family [ConnectX-4]
we have the proxmox ceph storage on 100G and the 10G is reserved for Inter VM / Internet communication.
-----------------------------------------------------------------------------------------------------------------------------------------------------------

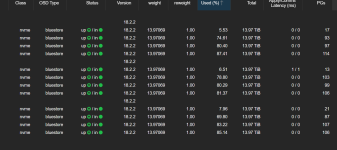

We have added another 15.36 Nvme drive into each server so its 4 drives per server now. (also we have enough RAM at 1.5TB per box - 64GB DDR5 * 24)
![1719795822006.png 1719795822006.png](https://forum.proxmox.com/data/attachments/70/70279-49b14ae2139c146e7318a14142d0121e.jpg)
also increased the PG count from 128 to the 256 recommended by the ceph in proxmox gui in the pools area.
![1719795615145.png 1719795615145.png](https://forum.proxmox.com/data/attachments/70/70277-1b193f9a22f23305be45b08f951ad2e4.jpg)
Since we were short of space and our cluster reached 85% usage we added 3 more 15.36TB NVME dries - 1 in each of the 3 hosts to increase capacity. This resulted in rebalancing
our rebalancing is very slow at 60-100 Mbps only which is very bad considering that there negligbile io in the cluster (so thats not the problem for sure)
![1719795682519.png 1719795682519.png](https://forum.proxmox.com/data/attachments/70/70278-9d78d53ee78fbc54df90e2fd0ff8b678.jpg)
running - the below does not seem to take any effect
ceph config set osd osd_recovery_max_active 16 --force
ceph config set osd osd_max_backfills 4 --force
this is the output of
ceph-conf --show-config | egrep "osd_recovery_max_active|osd_recovery_op_priority|osd_max_backfills"
osd_max_backfills = 1
osd_recovery_max_active = 0
osd_recovery_max_active_hdd = 3
osd_recovery_max_active_ssd = 10
osd_recovery_op_priority = 3
Note: we are running enterprise repo of ceph and proxmox with the latest updates to date.
any ideas on solving this so that we can get a good rebalncing speed.

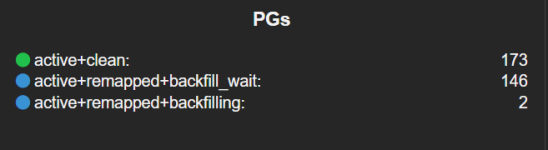

see the below screenshot from the ceph status in the web ui - backfilling - only 2 and even 1 sometimes and then It's back to 2
![1719790585768.png 1719790585768.png](https://forum.proxmox.com/data/attachments/70/70275-9f664376eb9bb7d67afc4e26a63a1406.jpg)
We have an EPYC 9554 based Cluster with 3x WD SN650 - NVME PCI-Gen4 15.36TB in each server. all backed by 100G Ethernet on Mellanox 2700 CX4 cards.
output of lspci ---
lspci | grep Ethernet
03:00.0 Ethernet controller: Broadcom Inc. and subsidiaries BCM57416 NetXtreme-E Dual-Media 10G RDMA Ethernet Controller (rev 01)
03:00.1 Ethernet controller: Broadcom Inc. and subsidiaries BCM57416 NetXtreme-E Dual-Media 10G RDMA Ethernet Controller (rev 01)
41:00.0 Ethernet controller: Mellanox Technologies MT27700 Family [ConnectX-4]
41:00.1 Ethernet controller: Mellanox Technologies MT27700 Family [ConnectX-4]
we have the proxmox ceph storage on 100G and the 10G is reserved for Inter VM / Internet communication.
-----------------------------------------------------------------------------------------------------------------------------------------------------------
We have added another 15.36 Nvme drive into each server so its 4 drives per server now. (also we have enough RAM at 1.5TB per box - 64GB DDR5 * 24)
![1719795822006.png 1719795822006.png](https://forum.proxmox.com/data/attachments/70/70279-49b14ae2139c146e7318a14142d0121e.jpg)
also increased the PG count from 128 to the 256 recommended by the ceph in proxmox gui in the pools area.
![1719795615145.png 1719795615145.png](https://forum.proxmox.com/data/attachments/70/70277-1b193f9a22f23305be45b08f951ad2e4.jpg)
Since we were short of space and our cluster reached 85% usage we added 3 more 15.36TB NVME dries - 1 in each of the 3 hosts to increase capacity. This resulted in rebalancing
our rebalancing is very slow at 60-100 Mbps only which is very bad considering that there negligbile io in the cluster (so thats not the problem for sure)
![1719795682519.png 1719795682519.png](https://forum.proxmox.com/data/attachments/70/70278-9d78d53ee78fbc54df90e2fd0ff8b678.jpg)
running - the below does not seem to take any effect
ceph config set osd osd_recovery_max_active 16 --force
ceph config set osd osd_max_backfills 4 --force
this is the output of
ceph-conf --show-config | egrep "osd_recovery_max_active|osd_recovery_op_priority|osd_max_backfills"
osd_max_backfills = 1
osd_recovery_max_active = 0
osd_recovery_max_active_hdd = 3
osd_recovery_max_active_ssd = 10
osd_recovery_op_priority = 3
Note: we are running enterprise repo of ceph and proxmox with the latest updates to date.
any ideas on solving this so that we can get a good rebalncing speed.
see the below screenshot from the ceph status in the web ui - backfilling - only 2 and even 1 sometimes and then It's back to 2
![1719790585768.png 1719790585768.png](https://forum.proxmox.com/data/attachments/70/70275-9f664376eb9bb7d67afc4e26a63a1406.jpg)
Last edited:
