100G Mellanox Connect-5 on AMD Epyc 7302P

[f.sennj]

Hello All,

i run an LACP Bond (layer 2 logic) 2 x 100GB with different VLAns. i want to Use vlan 230 with MTU of 9000 enabled for linstor/drbd. But we only get a bandwith of around 21GB not matter if i use iperf or iperf3 (also with 4 simultaniously threads).

i amended the cpu states like this:
https://forum.proxmox.com/threads/mellanox-connectx-5-en-100g-running-at-40g.106095/

updated the mellanox firmware to latest available like this:
https://www.thomas-krenn.com/de/wiki/Mellanox_Firmware_Tools_-_Firmware_Upgrade_unter_Linux

also installed these helpers to use rdma
apt install -y infiniband-diags opensm ibutils rdma-core rdmacm-utils &&
modprobe ib_umad &&
modprobe ib_ipoib

switchwise also LACP Bond for sure with mtu 9000 and PFC enabled for loosless communication.

ethtool bond0
Settings for bond0:
Supported ports: [ ]
Supported link modes: Not reported
Supported pause frame use: No
Supports auto-negotiation: No
Supported FEC modes: Not reported
Advertised link modes: Not reported
Advertised pause frame use: No
Advertised auto-negotiation: No
Advertised FEC modes: Not reported
Speed: 200000Mb/s
Duplex: Full
Auto-negotiation: off
Port: Other
PHYAD: 0
Transceiver: internal
Link detected: yes

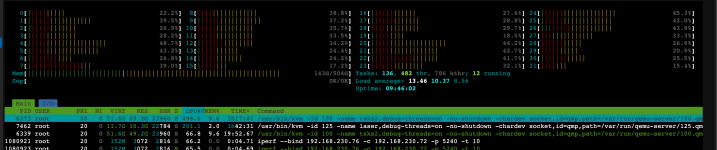

attached a picture of the systemload, so there is not a single thread limiting.

root@pve2:~# iperf --bind 192.168.230.76 -c 192.168.230.72 -p 5240 -t 10
------------------------------------------------------------
Client connecting to 192.168.230.72, TCP port 5240
TCP window size: 16.0 KByte (default)
------------------------------------------------------------
[ 1] local 192.168.230.76 port 42397 connected with 192.168.230.72 port 5240 (icwnd/mss/irtt=87/8948/183)
[ ID] Interval Transfer Bandwidth
[ 1] 0.0000-10.0140 sec 21.0 GBytes 18.0 Gbits/sec


and here is my network setting:

iface enp6s0f1 inet manual

iface enp5s0 inet manual

auto eno1
iface eno1 inet manual
#Quorum

auto eno2
iface eno2 inet manual
#Quorum

iface enxbe3af2b6059f inet manual

auto bond0
iface bond0 inet manual
bond-slaves enp1s0f0np0 enp1s0f1np1
bond-miimon 100
bond-mode 802.3ad
bond-xmit-hash-policy layer2
mtu 9000

auto bond1
iface bond1 inet static
address 10.10.10.76/24
bond-slaves eno1 eno2
bond-miimon 100
bond-mode 802.3ad
bond-xmit-hash-policy layer2+3
#quorum

auto vmbr1
iface vmbr1 inet manual
bridge-ports bond0
bridge-stp off
bridge-fd 0
bridge-vlan-aware yes
bridge-vids 2-4094
mtu 9000
#100G_Bond_Bridge_Vlan

auto vmbr1.160
iface vmbr1.160 inet manual
mtu 1500
#CNC_160

auto vmbr1.170
iface vmbr1.170 inet manual
mtu 1500
#Video_170

auto vmbr1.180
iface vmbr1.180 inet manual
mtu 1500
#DMZ_180

auto vmbr1.199
iface vmbr1.199 inet manual
mtu 1500
#VOIP_199

auto vmbr1.201
iface vmbr1.201 inet static
address 192.168.201.76/24
gateway 192.168.201.254
mtu 1500
#MGMT_201

auto vmbr1.202
iface vmbr1.202 inet manual
mtu 1500
#WLAN_202

auto vmbr1.1
iface vmbr1.1 inet manual
mtu 1500
#IINTERN

auto vmbr1.230
iface vmbr1.230 inet static
address 192.168.230.76/24
mtu 9000
#CEPH_LINBIT_230


also with iperf3 we see a lot of retries:
root@pve2:/etc/pve# iperf3 --bind 192.168.230.76 -c 192.168.230.72 -p 22222 -t 10
Connecting to host 192.168.230.72, port 22222
[ 5] local 192.168.230.76 port 44521 connected to 192.168.230.72 port 22222
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 2.11 GBytes 18.1 Gbits/sec 732 1.08 MBytes
[ 5] 1.00-2.00 sec 1.99 GBytes 17.1 Gbits/sec 874 516 KBytes
[ 5] 2.00-3.00 sec 1.99 GBytes 17.1 Gbits/sec 992 577 KBytes
[ 5] 3.00-4.00 sec 1.93 GBytes 16.6 Gbits/sec 703 481 KBytes
[ 5] 4.00-5.00 sec 1.86 GBytes 16.0 Gbits/sec 986 524 KBytes
[ 5] 5.00-6.00 sec 1.99 GBytes 17.2 Gbits/sec 762 533 KBytes
[ 5] 6.00-7.00 sec 2.01 GBytes 17.3 Gbits/sec 715 516 KBytes
[ 5] 7.00-8.00 sec 2.04 GBytes 17.5 Gbits/sec 1007 498 KBytes
[ 5] 8.00-9.00 sec 2.11 GBytes 18.1 Gbits/sec 917 446 KBytes
[ 5] 9.00-10.00 sec 2.17 GBytes 18.6 Gbits/sec 469 402 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 20.2 GBytes 17.4 Gbits/sec 8157 sender
[ 5] 0.00-10.00 sec 20.2 GBytes 17.4 Gbits/sec receiver



funny enough on the same mellanox ConnectX-5 CArd but with only 2 x 25GBE i hardly see any retries.



[spirit]

iperf3 is not multithreaded (until recently before 3.16), so maybe you could be core limited.

(Try to use iperf2 with -P option or launch multiple iperf3 in //)

and try to increase windows size, to be sure to not be pps limited.



[f.sennj]

iperf2 is not available anymore to install only iperf and and iperf3 (which i used with 8 threads)

root@pve2:~# iperf --bind 192.168.230.76 -c 192.168.230.72 -p 22222 -t 60
------------------------------------------------------------
Client connecting to 192.168.230.72, TCP port 22222
TCP window size: 16.0 KByte (default)
------------------------------------------------------------
[ 1] local 192.168.230.76 port 57843 connected with 192.168.230.72 port 22222 (icwnd/mss/irtt=87/8948/168)
[ ID] Interval Transfer Bandwidth
[ 1] 0.0000-60.0074 sec 127 GBytes 18.2 Gbits/sec
root@pve2:~#


root@pve2:~# iperf3 --bind 192.168.230.76 -c 192.168.230.72 -p 22222 -P 8 -t 60
Connecting to host 192.168.230.72, port 22222
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-60.00 sec 21.0 GBytes 3.01 Gbits/sec 9068 sender
[ 5] 0.00-60.00 sec 21.0 GBytes 3.00 Gbits/sec receiver
[ 7] 0.00-60.00 sec 21.4 GBytes 3.06 Gbits/sec 10411 sender
[ 7] 0.00-60.00 sec 21.4 GBytes 3.06 Gbits/sec receiver
[ 9] 0.00-60.00 sec 21.2 GBytes 3.03 Gbits/sec 10753 sender
[ 9] 0.00-60.00 sec 21.2 GBytes 3.03 Gbits/sec receiver
[ 11] 0.00-60.00 sec 19.5 GBytes 2.79 Gbits/sec 8706 sender
[ 11] 0.00-60.00 sec 19.5 GBytes 2.78 Gbits/sec receiver
[ 13] 0.00-60.00 sec 17.7 GBytes 2.53 Gbits/sec 6642 sender
[ 13] 0.00-60.00 sec 17.7 GBytes 2.53 Gbits/sec receiver
[ 15] 0.00-60.00 sec 17.7 GBytes 2.53 Gbits/sec 7015 sender
[ 15] 0.00-60.00 sec 17.7 GBytes 2.53 Gbits/sec receiver
[ 17] 0.00-60.00 sec 19.9 GBytes 2.85 Gbits/sec 8613 sender
[ 17] 0.00-60.00 sec 19.9 GBytes 2.85 Gbits/sec receiver
[ 19] 0.00-60.00 sec 18.9 GBytes 2.70 Gbits/sec 7483 sender
[ 19] 0.00-60.00 sec 18.8 GBytes 2.70 Gbits/sec receiver
[SUM] 0.00-60.00 sec 157 GBytes 22.5 Gbits/sec 68691 sender
[SUM] 0.00-60.00 sec 157 GBytes 22.5 Gbits/sec receiver



[f.sennj]

iperf3 is not multithreaded (until recently before 3.16), so maybe you could be core limited.

(Try to use iperf2 with -P option or launch multiple iperf3 in //)

and try to increase windows size, to be sure to not be pps limited.

what you my be windows size?



[f.sennj]

Hi Spirit, i found the failure for whatever reason the supermicro board we use is degrading performance on the pci express lanes used for the 100G adapter.

root@pve1:~# lspci | grep ConnectX-5
c2:00.0 Ethernet controller: Mellanox Technologies MT27800 Family [ConnectX-5]
c2:00.1 Ethernet controller: Mellanox Technologies MT27800 Family [ConnectX-5]
root@pve1:~# lspci -s c2:00.1 -vvv | grep Speed
LnkCap: Port #0, Speed 8GT/s, Width x16, ASPM not supported
LnkSta: Speed 8GT/s, Width x4 (downgraded)
root@pve1:~# lspci -s c2:00.0 -vvv | grep Speed
LnkCap: Port #0, Speed 8GT/s, Width x16, ASPM not supported
LnkSta: Speed 8GT/s, Width x4 (downgraded)
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
root@pve1:~#


root@pve4:~# lspci | grep ConnectX-5
c1:00.0 Ethernet controller: Mellanox Technologies MT27800 Family [ConnectX-5]
c1:00.1 Ethernet controller: Mellanox Technologies MT27800 Family [ConnectX-5]
root@pve4:~# lspci -s c1:00.1 -vvv | grep Speed
LnkCap: Port #0, Speed 8GT/s, Width x16, ASPM not supported
LnkSta: Speed 8GT/s, Width x16
root@pve4:~# lspci -s c1:00.0 -vvv | grep Speed
LnkCap: Port #0, Speed 8GT/s, Width x16, ASPM not supported
LnkSta: Speed 8GT/s, Width x16
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
root@pve4:~#


root@pve2:~# lspci -s c1:00.1 -vvv | grep Speed
LnkCap: Port #0, Speed 16GT/s, Width x16, ASPM L0s L1, Exit Latency L0s <512ns, L1 <4us
LnkSta: Speed 2.5GT/s (downgraded), Width x16
root@pve2:~# lspci -s c1:00.0 -vvv | grep Speed
LnkCap: Port #0, Speed 16GT/s, Width x16, ASPM L0s L1, Exit Latency L0s <512ns, L1 <16us
LnkSta: Speed 2.5GT/s (downgraded), Width x16
LnkCap2: Supported Link Speeds: 2.5-16GT/s, Crosslink- Retimer+ 2Retimers+ DRS-
LnkCtl2: Target Link Speed: 16GT/s, EnterCompliance- SpeedDis-
root@pve2:~#


root@pve3:~# lspci -s c1:00.1 -vvv | grep Speed
LnkCap: Port #0, Speed 8GT/s, Width x16, ASPM not supported
LnkSta: Speed 8GT/s, Width x16
root@pve3:~# lspci -s c1:00.0 -vvv | grep Speed
LnkCap: Port #0, Speed 8GT/s, Width x16, ASPM not supported
LnkSta: Speed 8GT/s, Width x16
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
root@pve3:~#
