Very slow I/O speed with kernel 6.14

[seanr22a]

I updated from kernel 6.8.12-11-pve to the latest 6.14 available today 6.14.5-1-bpo12.

The disk I/O speed dropped from read: IOPS=123k to read: IOPS=37.3k. I rebooted into kernel 6.8.12-11-pve and I have IOPS=123k again - something is wrong with the 6.14 kernel or maybe the ZFS fixes made for the 6.14 kernel or maybe I’m missing something.

A little background:
Supermicro server, dual Xeon E5-2696 v4 with 1TB memory.
Broadcom/LSI SAS3224 SAS-3 HBA
16pcs 7200RPM WD Enterprise SAS3 HDD in a ZFS Raid-10


This is the fio command run on the host:
fio job-cpu1.fio | grep "read:\|write:\|READ:\|WRITE:"

The job-cpu1.fio file:
# This job file tries to mimic the Intel IOMeter File Server Access Pattern
[global]
description=Emulation of Intel IOmeter File Server Access Pattern

[iometer]
bssplit=512/10:1k/5:2k/5:4k/60:8k/2:16k/4:32k/4:64k/10
rw=randrw
rwmixread=80
direct=1
size=4g
numjobs=1
ioengine=libaio
# IOMeter defines the server loads as the following:
# iodepth=1 Linear
# iodepth=4 Very Light
# iodepth=8 Light
# iodepth=64 Moderate
# iodepth=256 Heavy
iodepth=64
cpus_allowed=0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65

With kernel 6.14:
read: IOPS=37.3k, BW=171MiB/s (179MB/s)(3279MiB/19178msec)
write: IOPS=9356, BW=42.6MiB/s (44.6MB/s)(817MiB/19178msec); 0 zone resets
READ: bw=171MiB/s (179MB/s), 171MiB/s-171MiB/s (179MB/s-179MB/s), io=3279MiB (3439MB), run=19178-19178msec
WRITE: bw=42.6MiB/s (44.6MB/s), 42.6MiB/s-42.6MiB/s (44.6MB/s-44.6MB/s), io=817MiB (856MB), run=19178-19178msec

With kernel 6.8.12-11
read: IOPS=123k, BW=566MiB/s (593MB/s)(3279MiB/5795msec)
write: IOPS=31.0k, BW=141MiB/s (148MB/s)(817MiB/5795msec); 0 zone resets
READ: bw=566MiB/s (593MB/s), 566MiB/s-566MiB/s (593MB/s-593MB/s), io=3279MiB (3439MB), run=5795-5795msec
WRITE: bw=141MiB/s (148MB/s), 141MiB/s-141MiB/s (148MB/s-148MB/s), io=817MiB (856MB), run=5795-5795msec

I've rebooted between the kernels a couple of times but the difference stays the same.
Is there something I'm doing wrong or is it kernel 6.14 that is buggy?



[seanr22a]

Looks like I'm the only one .... just to get something to compare with I updated to the 614 kernel on a small Xeon D-1541 server, it has 4 SATA drives in a ZFS Raid10. Exactly the same thing with about the same percentage in performace diff between 6.8 and 6.14 as I posted here yesterday. When I go back to 6.8 performance are back to normal.

I removed the 6.14 on both servers and continue running with 6.8.12-11 its working just fine. I hope the issues with ZFS performance are solved when 6.14 becomes the standard kernel.



[icepicknz]

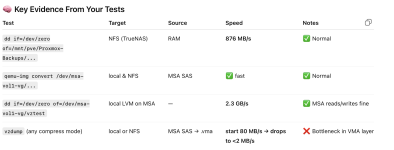

I'm having similar issues... pretty much any backups are running fast read from source, then slow write to NFS or local disk.
But if I run via CLI dd etc etc fine. Have this issue on 3 hosts running proxmox 9 with 6.14.11-2-pve or 6.14.11-4-pve and even tried an older kernel.

I thought, ok this might be the hardware raid1, so I reinstalled proxmox with zfs HBA disks and same issue.

INFO: include disk 'scsi0' 'msa-vol1:vm-705-disk-0' 50G
INFO: include disk 'scsi1' 'msa-vol2:vm-705-disk-0' 250G
INFO: creating vzdump archive '/mnt/pve/Proxmox-Backups/dump/vzdump-qemu-705-2025_10_27-18_17_36.vma.zst'
INFO: starting kvm to execute backup task
INFO: started backup task 'a43dc7aa-2ba5-4648-b053-0b12b03b515e'
INFO:   0% (623.5 MiB of 300.0 GiB) in 3s, read: 207.8 MiB/s, write: 96.8 MiB/s
INFO:   1% (5.9 GiB of 300.0 GiB) in 6s, read: 1.8 GiB/s, write: 6.3 MiB/s
INFO:   3% (11.5 GiB of 300.0 GiB) in 9s, read: 1.9 GiB/s, write: 430.7 KiB/s
INFO:   4% (12.8 GiB of 300.0 GiB) in 12s, read: 415.9 MiB/s, write: 2.7 KiB/s
INFO:   5% (15.7 GiB of 300.0 GiB) in 15s, read: 1016.4 MiB/s, write: 50.7 KiB/s
