[SOLVED] Snapshot Rollback failed threshold reached kvm fails to restore

Thom Luxford

New Member
Mar 14, 2018
9
2
1
49
PVE 4.4-1/eb2d6f1e
I tried to rollback a snapshot (id 505) and it failed saying "disk threshold reached, not going to create a new volume" or somesuch...

I deleted other unused VMs and deleted snapshots from other VMs to make space. VM 505 was still locked so I used the shell qm unlock utility to try to start or continue with rollback. I've rebooted the proxmox server as well in case this was needed for the filesystem to see the available disk resources.

It seems that in the roll back, vm505 has unreferenced the lvm partitions it disks were pointing to and when I try to rollback or start it does not have a base reference point.

lvremove 'pve/vm-505-disk-1' error: Failed to find logical volume "pve/vm-505-disk-1"

Does anyone know how to manually remap these lvm volumes so I can get it to run? As you can see form the output of two lvdisplay commands below, vm-505-disk-1 is here but only as a snapshot. I would guess that the rollback operation unlinked disk-, but disk-1 shows below because it never got that far.

root@maz-pve58:/dev/pve# lvdisplay|grep vm-505-disk-2

LV Path /dev/pve/vm-505-disk-2

LV Name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s1

LV Name snap_vm-505-disk-2_s1

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s2

LV Name snap_vm-505-disk-2_s2

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s3

LV Name snap_vm-505-disk-2_s3

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s4

LV Name snap_vm-505-disk-2_s4

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s5

LV Name snap_vm-505-disk-2_s5

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s6

LV Name snap_vm-505-disk-2_s6

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s7

LV Name snap_vm-505-disk-2_s7

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s8

LV Name snap_vm-505-disk-2_s8

LV Thin origin name vm-505-disk-2

root@maz-pve58:/dev/pve# lvdisplay|grep vm-505-disk-1

LV Path /dev/pve/snap_vm-505-disk-1_s1

LV Name snap_vm-505-disk-1_s1

LV Path /dev/pve/snap_vm-505-disk-1_s2

LV Name snap_vm-505-disk-1_s2

LV Path /dev/pve/snap_vm-505-disk-1_s3

LV Name snap_vm-505-disk-1_s3

LV Path /dev/pve/snap_vm-505-disk-1_s4

LV Name snap_vm-505-disk-1_s4

LV Path /dev/pve/snap_vm-505-disk-1_s5

LV Name snap_vm-505-disk-1_s5

LV Path /dev/pve/snap_vm-505-disk-1_s6

LV Name snap_vm-505-disk-1_s6

LV Path /dev/pve/snap_vm-505-disk-1_s7

LV Name snap_vm-505-disk-1_s7

LV Path /dev/pve/snap_vm-505-disk-1_s8

LV Name snap_vm-505-disk-1_s8

PVE 4.4-1/eb2d6f1e
I tried to rollback a snapshot (id 505) and it failed saying "disk threshold reached, not going to create a new volume" or somesuch...

I deleted other unused VMs and deleted snapshots from other VMs to make space. VM 505 was still locked so I used the shell qm unlock utility to try to start or continue with rollback. I've rebooted the proxmox server as well in case this was needed for the filesystem to see the available disk resources.

It seems that in the roll back, vm505 has unreferenced the lvm partitions it disks were pointing to and when I try to rollback or start it does not have a base reference point.

lvremove 'pve/vm-505-disk-1' error: Failed to find logical volume "pve/vm-505-disk-1"

Does anyone know how to manually remap these lvm volumes so I can get it to run? As you can see form the output of two lvdisplay commands below, vm-505-disk-1 is here but only as a snapshot. I would guess that the rollback operation unlinked disk-, but disk-1 shows below because it never got that far.

root@maz-pve58:/dev/pve# lvdisplay|grep vm-505-disk-2

LV Path /dev/pve/vm-505-disk-2

LV Name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s1

LV Name snap_vm-505-disk-2_s1

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s2

LV Name snap_vm-505-disk-2_s2

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s3

LV Name snap_vm-505-disk-2_s3

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s4

LV Name snap_vm-505-disk-2_s4

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s5

LV Name snap_vm-505-disk-2_s5

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s6

LV Name snap_vm-505-disk-2_s6

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s7

LV Name snap_vm-505-disk-2_s7

LV Thin origin name vm-505-disk-2

LV Path /dev/pve/snap_vm-505-disk-2_s8

LV Name snap_vm-505-disk-2_s8

LV Thin origin name vm-505-disk-2

root@maz-pve58:/dev/pve# lvdisplay|grep vm-505-disk-1

LV Path /dev/pve/snap_vm-505-disk-1_s1

LV Name snap_vm-505-disk-1_s1

LV Path /dev/pve/snap_vm-505-disk-1_s2

LV Name snap_vm-505-disk-1_s2

LV Path /dev/pve/snap_vm-505-disk-1_s3

LV Name snap_vm-505-disk-1_s3

LV Path /dev/pve/snap_vm-505-disk-1_s4

LV Name snap_vm-505-disk-1_s4

LV Path /dev/pve/snap_vm-505-disk-1_s5

LV Name snap_vm-505-disk-1_s5

LV Path /dev/pve/snap_vm-505-disk-1_s6

LV Name snap_vm-505-disk-1_s6

LV Path /dev/pve/snap_vm-505-disk-1_s7

LV Name snap_vm-505-disk-1_s7

LV Path /dev/pve/snap_vm-505-disk-1_s8

LV Name snap_vm-505-disk-1_s8
This seems to be on the right path with source code to these processes:
http://narkive.com/aEe5siOR

I suspected that the logical volume was deleted when the rollback failed snapshot volume wasn't restored.

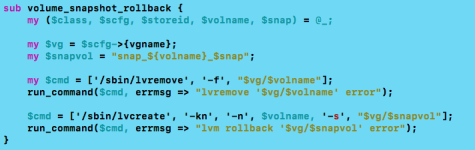

I found source in here: PVE/Storage/LvmThinPlugin.pm
So I restored it manually so it wouldn't error out at the rollback step.

After this I went back to the PVE UI and rolled it back to s7 fully and was able to boot it.

  • Like
Reactions: rd2023
