Screen Icon off on one cluster node

[hpcraith]

Can anybody explain this behavior?

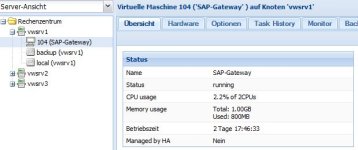

Running the web gui on vwsvr1 the machine status is running and the screen icon is white.

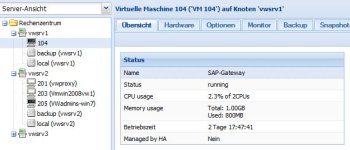

Running the webgui on vwsrv2 and/or vwsrv3 the machine status is running but the screen icon is black and no name besides 104.

Regards
Dieter



[dietmar]

Please can you post the output of

# pveversion -v

and

# pvecm status



[hpcraith]

I was out of office for some days. Following the data You requested.
Regards
Dieter

root@vwsrv1:~# pveversion -v
pve-manager: 2.3-13 (pve-manager/2.3/7946f1f1)
running kernel: 2.6.32-18-pve
proxmox-ve-2.6.32: 2.3-88
pve-kernel-2.6.32-18-pve: 2.6.32-88
lvm2: 2.02.95-1pve2
clvm: 2.02.95-1pve2
corosync-pve: 1.4.4-4
openais-pve: 1.1.4-2
libqb: 0.10.1-2
redhat-cluster-pve: 3.1.93-2
resource-agents-pve: 3.9.2-3
fence-agents-pve: 3.1.9-1
pve-cluster: 1.0-36
qemu-server: 2.3-17
pve-firmware: 1.0-21
libpve-common-perl: 1.0-48
libpve-access-control: 1.0-26
libpve-storage-perl: 2.3-6
vncterm: 1.0-3
vzctl: 4.0-1pve2
vzprocps: 2.0.11-2
vzquota: 3.1-1
ksm-control-daemon: 1.1-1
pve-qemu-kvm: 1.4-6

root@vwsrv1:~# pvecm status
Version: 6.2.0
Config Version: 5
Cluster Name: VW-Cluster
Cluster Id: 17844
Cluster Member: Yes
Cluster Generation: 212
Membership state: Cluster-Member
Nodes: 3
Expected votes: 3
Total votes: 3
Node votes: 1
Quorum: 2
Active subsystems: 5
Flags:
Ports Bound: 0
Node name: vwsrv1
Node ID: 3
Multicast addresses: 239.192.69.249
Node addresses: 141.58.4.248
root@vwsrv1:~#
#############################
root@vwsrv2:~# pveversion -v
pve-manager: 2.2-32 (pve-manager/2.2/3089a616)
running kernel: 2.6.32-17-pve
proxmox-ve-2.6.32: 2.2-83
pve-kernel-2.6.32-17-pve: 2.6.32-83
lvm2: 2.02.95-1pve2
clvm: 2.02.95-1pve2
corosync-pve: 1.4.4-1
openais-pve: 1.1.4-2
libqb: 0.10.1-2
redhat-cluster-pve: 3.1.93-2
resource-agents-pve: 3.9.2-3
fence-agents-pve: 3.1.9-1
pve-cluster: 1.0-34
qemu-server: 2.0-72
pve-firmware: 1.0-21
libpve-common-perl: 1.0-41
libpve-access-control: 1.0-25
libpve-storage-perl: 2.0-36
vncterm: 1.0-3
vzctl: 4.0-1pve2
vzprocps: 2.0.11-2
vzquota: 3.1-1
pve-qemu-kvm: 1.3-10
ksm-control-daemon: 1.1-1
root@vwsrv2:~# pvecm status
Version: 6.2.0
Config Version: 5
Cluster Name: VW-Cluster
Cluster Id: 17844
Cluster Member: Yes
Cluster Generation: 212
Membership state: Cluster-Member
Nodes: 3
Expected votes: 3
Total votes: 3
Node votes: 1
Quorum: 2
Active subsystems: 5
Flags:
Ports Bound: 0
Node name: vwsrv2
Node ID: 1
Multicast addresses: 239.192.69.249
Node addresses: 141.58.4.251
root@vwsrv2:~#
###################################
root@vwsrv3:~# pveversion -v
pve-manager: 2.2-32 (pve-manager/2.2/3089a616)
running kernel: 2.6.32-17-pve
proxmox-ve-2.6.32: 2.2-83
pve-kernel-2.6.32-11-pve: 2.6.32-66
pve-kernel-2.6.32-14-pve: 2.6.32-74
pve-kernel-2.6.32-17-pve: 2.6.32-83
lvm2: 2.02.95-1pve2
clvm: 2.02.95-1pve2
corosync-pve: 1.4.4-1
openais-pve: 1.1.4-2
libqb: 0.10.1-2
redhat-cluster-pve: 3.1.93-2
resource-agents-pve: 3.9.2-3
fence-agents-pve: 3.1.9-1
pve-cluster: 1.0-34
qemu-server: 2.0-72
pve-firmware: 1.0-21
libpve-common-perl: 1.0-41
libpve-access-control: 1.0-25
libpve-storage-perl: 2.0-36
vncterm: 1.0-3
vzctl: 4.0-1pve2
vzprocps: 2.0.11-2
vzquota: 3.1-1
pve-qemu-kvm: 1.3-10
ksm-control-daemon: 1.1-1
root@vwsrv3:~# pvecm status
Version: 6.2.0
Config Version: 5
Cluster Name: VW-Cluster
Cluster Id: 17844
Cluster Member: Yes
Cluster Generation: 212
Membership state: Cluster-Member
Nodes: 3
Expected votes: 3
Total votes: 3
Node votes: 1
Quorum: 2
Active subsystems: 5
Flags:
Ports Bound: 0
Node name: vwsrv3
Node ID: 2
Multicast addresses: 239.192.69.249
Node addresses: 141.58.4.250
root@vwsrv3:~#



[dietmar]

root@vwsrv2:~# pveversion -v
pve-manager: 2.2-32 (pve-manager/2.2/3089a616)

Please update this node



[hpcraith]

Updating was successful although I did not rebboot yet.
Hope the new kernel will not cause problems.
Thank You
