Proxmox single Nic Guidance

[Jimmy Brown]

Hello all,

Need some advise on my setup. I am not sure if I have setup it correctly. I am unsure if this pihole, ubiquiti or ME issue.

I was trying to use one NIC to host multiple VLANS and register devices into pihole. This works for IoT devices but not Trusted Devices.
I checked from my window device and can do nslookup and it shows the pihole address and I can ping the piehole.

C:\Users\admin>nslookup google.com
Server:  UnKnown
Address:  10.10.53.5

Non-authoritative answer:
Name:    google.com
Addresses:  2a00:1450:4009:c0b::66
          2a00:1450:4009:c0b::8a
          2a00:1450:4009:c0b::8b
          2a00:1450:4009:c0b::64
          192.178.223.113
          192.178.223.139
          192.178.223.100
          192.178.223.138
          192.178.223.101
          192.178.223.102


C:\Users\admin>

Hardware:

1. Cloud Gateway Fiber
2. USW Pro HD 24 PoE
3. Lenovo ThinkCentre M73 Tiny (One Network Interface).

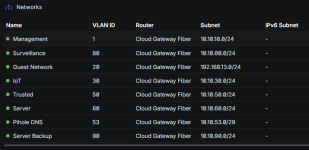

Network VLANS:

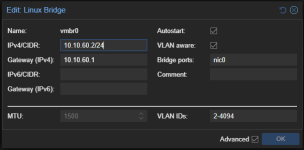

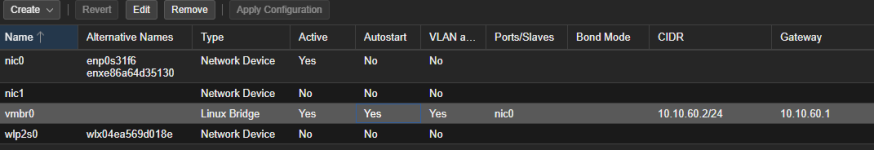

I have Proxmox plugged into Switch port 14 and its set setup on VLAN my server VLAN 60 and from the PVE network tab, I have enabled "VLAN aware" for

vmbr0

I installed pihole as a container and set the static IP of 10.10.53.5.

I have changed all the Network DNS zone to the pihole address.
Why does it only registers the IoT Vlan?


I am at the point of confusion.
