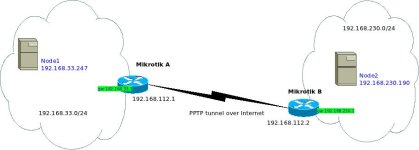

Hi All. I know that there is a posibility to create cluster over OpenVPN. But i'm trying to do over pptp (or this can be any other tunneling proto). So my shceme is:
I've setup multicast routing over pptp tunnel, and it works. I've tested multicast as is described here http://pve.proxmox.com/wiki/Multicast_notes.
Here my pings from Node2 to Node1:
Here my pings from Node1 to Node2:
As we can see, multicast is working in both ways. But when i'm trying to add Node2 to Node1 cluster
On node1:
So is it network problem or i was something else?
I've setup multicast routing over pptp tunnel, and it works. I've tested multicast as is described here http://pve.proxmox.com/wiki/Multicast_notes.
Here my pings from Node2 to Node1:
Code:
asmping 224.0.2.1 192.168.33.247
asmping joined (S,G) = (*,224.0.2.234)
pinging 192.168.33.247 from 192.168.233.190
unicast from 192.168.33.247, seq=1 dist=2 time=89.962 ms
multicast from 192.168.33.247, seq=1 dist=1 time=93.188 ms
unicast from 192.168.33.247, seq=2 dist=2 time=89.580 ms
multicast from 192.168.33.247, seq=2 dist=1 time=90.543 ms
unicast from 192.168.33.247, seq=3 dist=2 time=90.414 ms
multicast from 192.168.33.247, seq=3 dist=1 time=91.279 ms
unicast from 192.168.33.247, seq=4 dist=2 time=90.316 ms
multicast from 192.168.33.247, seq=4 dist=1 time=90.928 ms
^C
--- 192.168.33.247 statistics ---
4 packets transmitted, time 3220 ms
unicast:
4 packets received, 0% packet loss
rtt min/avg/max/std-dev = 89.580/90.068/90.414/0.328 ms
multicast:
4 packets received, 0% packet loss since first mc packet (seq 1) recvd
rtt min/avg/max/std-dev = 90.543/91.484/93.188/1.061 ms
Here my pings from Node1 to Node2:
Code:
asmping 224.0.2.1 192.168.233.190
asmping joined (S,G) = (*,224.0.2.234)
pinging 192.168.233.190 from 192.168.33.247
unicast from 192.168.233.190, seq=1 dist=2 time=90.138 ms
unicast from 192.168.233.190, seq=2 dist=2 time=89.952 ms
multicast from 192.168.233.190, seq=2 dist=2 time=90.402 ms
unicast from 192.168.233.190, seq=3 dist=2 time=90.354 ms
multicast from 192.168.233.190, seq=3 dist=2 time=90.402 ms
unicast from 192.168.233.190, seq=4 dist=2 time=89.824 ms
multicast from 192.168.233.190, seq=4 dist=2 time=89.872 ms
^C
--- 192.168.233.190 statistics ---
4 packets transmitted, time 3397 ms
unicast:
4 packets received, 0% packet loss
rtt min/avg/max/std-dev = 89.824/90.067/90.354/0.199 ms
multicast:
3 packets received, 0% packet loss since first mc packet (seq 2) recvd
rtt min/avg/max/std-dev = 89.872/90.225/90.402/0.350 ms
As we can see, multicast is working in both ways. But when i'm trying to add Node2 to Node1 cluster
Code:
root@Node2:~# /etc/init.d/cman start
Starting cluster:
Checking if cluster has been disabled at boot... [ OK ]
Checking Network Manager... [ OK ]
Global setup... [ OK ]
Loading kernel modules... [ OK ]
Mounting configfs... [ OK ]
Starting cman... [ OK ]
Waiting for quorum...
Waiting for quorum... Timed-out waiting for cluster
[FAILED]
Code:
root@node1:~# pvecm nodes
Node Sts Inc Joined Name
1 M 64 2012-08-02 08:13:42 node1
2 X 0 Node2
So is it network problem or i was something else?
