Proxhost root disk filling up, can't find culprit

P

paddyirishman

New Member
Jun 22, 2023
3
1
3
Hello,

My proxhost has been purring nicely for some time so I haven't been needing to do much of anything. Just working on the docker/portainer host nested on there for container fun, using plex and so on. I came to update the host today and noticed the root disk (a single nvme 1tb ssd) had 96% usage. Disk is way above whats actually registering as being used.

Ive ran a systemfile check, updates, cleared temp folders, caches, removed stale dump files. I've run lengthy scans to reveal the largest files in / along with ncdu -x / output shown below. There should be approx <=300gb total usage on this drive. Rebooted also of course.

Other notes:

I don't use snaps shots
Its single node setup using a mini PC connected to a QNAP NAS
I have the 6.5.13 kernel pinned for transcoding on the N305 chip via Plex
I have 2 daily backup jobs running 1 to NAS-SSD and 1 local. Retention is set to keep daily 1 on both.

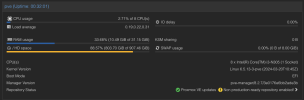

I am really lost now at this point. See the screenshot here showing the /var/lib/vz usage jumping up essentially from 300 - 600 then 600 - 900... 300gb jumps.. Any help here is greatly appreciated chaps.

Thanks.
A confused Irishman :)


Screenshot 2024-10-27 at 14.31.35.pngScreenshot 2024-10-27 at 14.58.44.png


Code:
ncdu shows

--- / --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
  197.2 GiB [##################################] /var
    4.5 GiB [                                  ] /usr
  405.8 MiB [                                  ] /root
  276.0 MiB [                                  ] /boot
    5.2 MiB [                                  ] /etc
   36.0 KiB [                                  ] /tmp
   20.0 KiB [                                  ] /mnt
e  16.0 KiB [                                  ] /lost+found
e   4.0 KiB [                                  ] /srv
e   4.0 KiB [                                  ] /opt
e   4.0 KiB [                                  ] /media
e   4.0 KiB [                                  ] /home
@   0.0   B [                                  ]  lib64
@   0.0   B [                                  ]  sbin
@   0.0   B [                                  ]  lib
@   0.0   B [                                  ]  bin
>   0.0   B [                                  ] /sys
>   0.0   B [                                  ] /run
>   0.0   B [                                  ] /proc
>   0.0   B [                                  ] /dev

contents of mount

root@pve:~# mount
sysfs on /sys type sysfs (rw,nosuid,nodev,noexec,relatime)
proc on /proc type proc (rw,relatime)
udev on /dev type devtmpfs (rw,nosuid,relatime,size=16297924k,nr_inodes=4074481,mode=755,inode64)
devpts on /dev/pts type devpts (rw,nosuid,noexec,relatime,gid=5,mode=620,ptmxmode=000)
tmpfs on /run type tmpfs (rw,nosuid,nodev,noexec,relatime,size=3266328k,mode=755,inode64)
/dev/mapper/pve-root on / type ext4 (rw,relatime,errors=remount-ro)
securityfs on /sys/kernel/security type securityfs (rw,nosuid,nodev,noexec,relatime)
tmpfs on /dev/shm type tmpfs (rw,nosuid,nodev,inode64)
tmpfs on /run/lock type tmpfs (rw,nosuid,nodev,noexec,relatime,size=5120k,inode64)
cgroup2 on /sys/fs/cgroup type cgroup2 (rw,nosuid,nodev,noexec,relatime)
pstore on /sys/fs/pstore type pstore (rw,nosuid,nodev,noexec,relatime)
efivarfs on /sys/firmware/efi/efivars type efivarfs (rw,nosuid,nodev,noexec,relatime)
bpf on /sys/fs/bpf type bpf (rw,nosuid,nodev,noexec,relatime,mode=700)
systemd-1 on /proc/sys/fs/binfmt_misc type autofs (rw,relatime,fd=30,pgrp=1,timeout=0,minproto=5,maxproto=5,direct,pipe_ino=24588)
hugetlbfs on /dev/hugepages type hugetlbfs (rw,relatime,pagesize=2M)
mqueue on /dev/mqueue type mqueue (rw,nosuid,nodev,noexec,relatime)
debugfs on /sys/kernel/debug type debugfs (rw,nosuid,nodev,noexec,relatime)
tracefs on /sys/kernel/tracing type tracefs (rw,nosuid,nodev,noexec,relatime)
fusectl on /sys/fs/fuse/connections type fusectl (rw,nosuid,nodev,noexec,relatime)
configfs on /sys/kernel/config type configfs (rw,nosuid,nodev,noexec,relatime)
ramfs on /run/credentials/systemd-sysusers.service type ramfs (ro,nosuid,nodev,noexec,relatime,mode=700)
ramfs on /run/credentials/systemd-tmpfiles-setup-dev.service type ramfs (ro,nosuid,nodev,noexec,relatime,mode=700)
/dev/nvme0n1p2 on /boot/efi type vfat (rw,relatime,fmask=0022,dmask=0022,codepage=437,iocharset=iso8859-1,shortname=mixed,errors=remount-ro)
ramfs on /run/credentials/systemd-sysctl.service type ramfs (ro,nosuid,nodev,noexec,relatime,mode=700)
ramfs on /run/credentials/systemd-tmpfiles-setup.service type ramfs (ro,nosuid,nodev,noexec,relatime,mode=700)
binfmt_misc on /proc/sys/fs/binfmt_misc type binfmt_misc (rw,nosuid,nodev,noexec,relatime)
sunrpc on /run/rpc_pipefs type rpc_pipefs (rw,relatime)
lxcfs on /var/lib/lxcfs type fuse.lxcfs (rw,nosuid,nodev,relatime,user_id=0,group_id=0,allow_other)
/dev/fuse on /etc/pve type fuse (rw,nosuid,nodev,relatime,user_id=0,group_id=0,default_permissions,allow_other)
10.242.30.10:/ssd on /mnt/pve/thegaf-ssd type nfs4 (rw,relatime,vers=4.1,rsize=1048576,wsize=1048576,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=10.242.30.11,local_lock=none,addr=10.242.30.10)
tracefs on /sys/kernel/debug/tracing type tracefs (rw,nosuid,nodev,noexec,relatime)
10.242.30.10:/Multimedia on /mnt/pve/thegaf-nas type nfs4 (rw,relatime,vers=4.1,rsize=1048576,wsize=1048576,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=10.242.30.11,local_lock=none,addr=10.242.30.10)
tmpfs on /run/user/0 type tmpfs (rw,nosuid,nodev,relatime,size=3266324k,nr_inodes=816581,mode=700,inode64)

storage.cfg file

dir: local
        path /var/lib/vz
        content rootdir,iso,vztmpl,snippets,images,backup
        prune-backups keep-last=1
        shared 0

nfs: thegaf-nas
        export /Multimedia
        path /mnt/pve/thegaf-nas
        server 10.242.30.10
        content backup
        prune-backups keep-weekly=1

nfs: thegaf-ssd
        export /ssd
        path /mnt/pve/thegaf-ssd
        server 10.242.30.10
        content backup
        prune-backups keep-weekly=1


root@pve:~# df -h



Filesystem                Size  Used Avail Use% Mounted on

udev                       16G     0   16G   0% /dev

tmpfs                     3.2G  2.1M  3.2G   1% /run

/dev/mapper/pve-root      908G  804G   66G  93% /

tmpfs                      16G   34M   16G   1% /dev/shm

tmpfs                     5.0M     0  5.0M   0% /run/lock

efivarfs                  192K   87K  101K  47% /sys/firmware/efi/efivars

/dev/nvme0n1p2           1022M   12M 1011M   2% /boot/efi

/dev/fuse                 128M   24K  128M   1% /etc/pve

10.242.30.10:/Multimedia   22T   17T  5.0T  77% /mnt/pve/thegaf-nas

10.242.30.10:/ssd         1.8T   74G  1.7T   5% /mnt/pve/thegaf-ssd

tmpfs                     3.2G     0  3.2G   0% /run/user/0



root@pve:~# du -hxd 1 /

4.0K    /media

4.0K    /home

5.2M    /etc

16K     /lost+found

20K     /mnt

36K     /tmp

276M    /boot

4.0K    /srv

4.6G    /usr

406M    /root

198G    /var

4.0K    /opt

203G    /

root@pve:~# fdisk -l

Disk /dev/loop0: 50 GiB, 53687091200 bytes, 104857600 sectors

Units: sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes





Disk /dev/loop1: 52 GiB, 55834574848 bytes, 109051904 sectors

Units: sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes





Disk /dev/loop2: 50 GiB, 53687091200 bytes, 104857600 sectors

Units: sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes





Disk /dev/loop3: 10 GiB, 10737418240 bytes, 20971520 sectors

Units: sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes





Disk /dev/nvme0n1: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors

Disk model: CT1000P3PSSD8

Units: sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Disklabel type: gpt

Disk identifier: CB20CEAB-EDAC-4B5A-855B-4398D145DFC7



Device           Start        End    Sectors   Size Type

/dev/nvme0n1p1      34       2047       2014  1007K BIOS boot

/dev/nvme0n1p2    2048    2099199    2097152     1G EFI System

/dev/nvme0n1p3 2099200 1953525134 1951425935 930.5G Linux LVM





Disk /dev/mapper/pve-swap: 8 GiB, 8589934592 bytes, 16777216 sectors

Units: sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes





Disk /dev/mapper/pve-root: 922.51 GiB, 990535221248 bytes, 1934639104 sectors

Units: sectors of 1 * 512 = 512 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Last edited:
After some more digging I found the issue... My NAS went down and writes were still going to the /mnt/nas folders but locally as drives weren't mounted.

Solved with umount then rm then remounting.

yay.
