Hi, I need a little help with this.
I have set up a high availability proxmox cluster with 2 nodes, with a raspberry as refeere to keep the quorum (qnetd daemon).

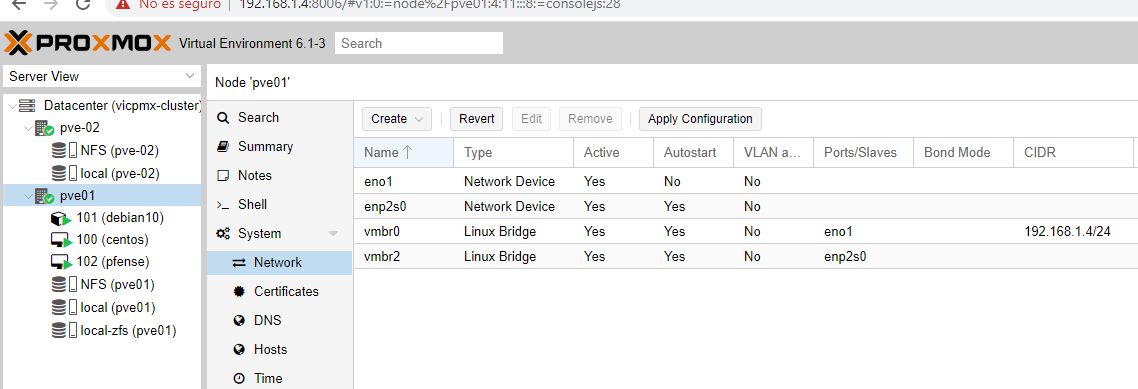

On node1 (pve01) I have 2 NICs (WAN and LAN) connected to the vmbr0 and vmbr2 bridges respectively. Both network interfaces are connected to a switch, and it is connected to the isp router.
Node 2 (pve-02) has a NIC connected to the vmbr0 bridge and to the Switch.
pve01 and pve-02 are in the 192.168.1.0/24 network (WAN / vmbr0) with the IP's 192.168.1.4 192.168.1.5 respectively, for administration.

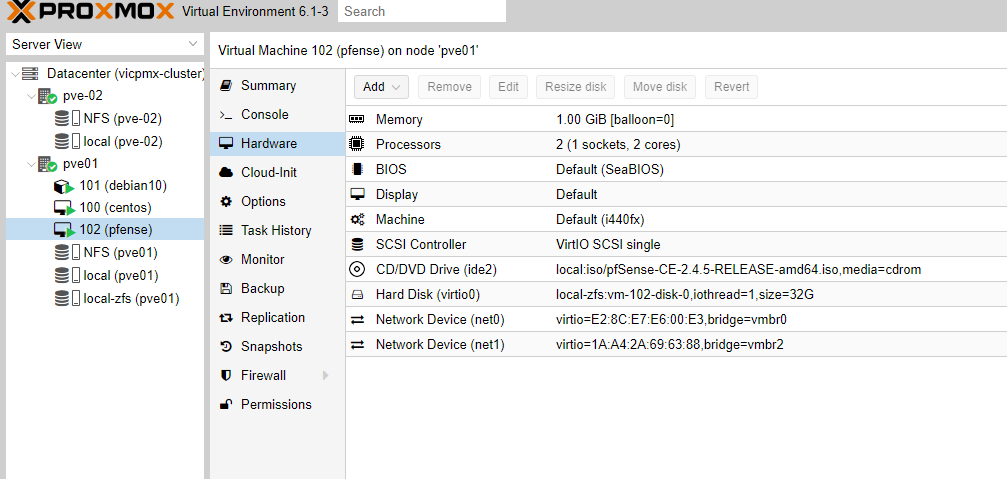

pve01 have a VM with pfsense to control WAN / LAN traffic to and from virtual machines within the lan network.

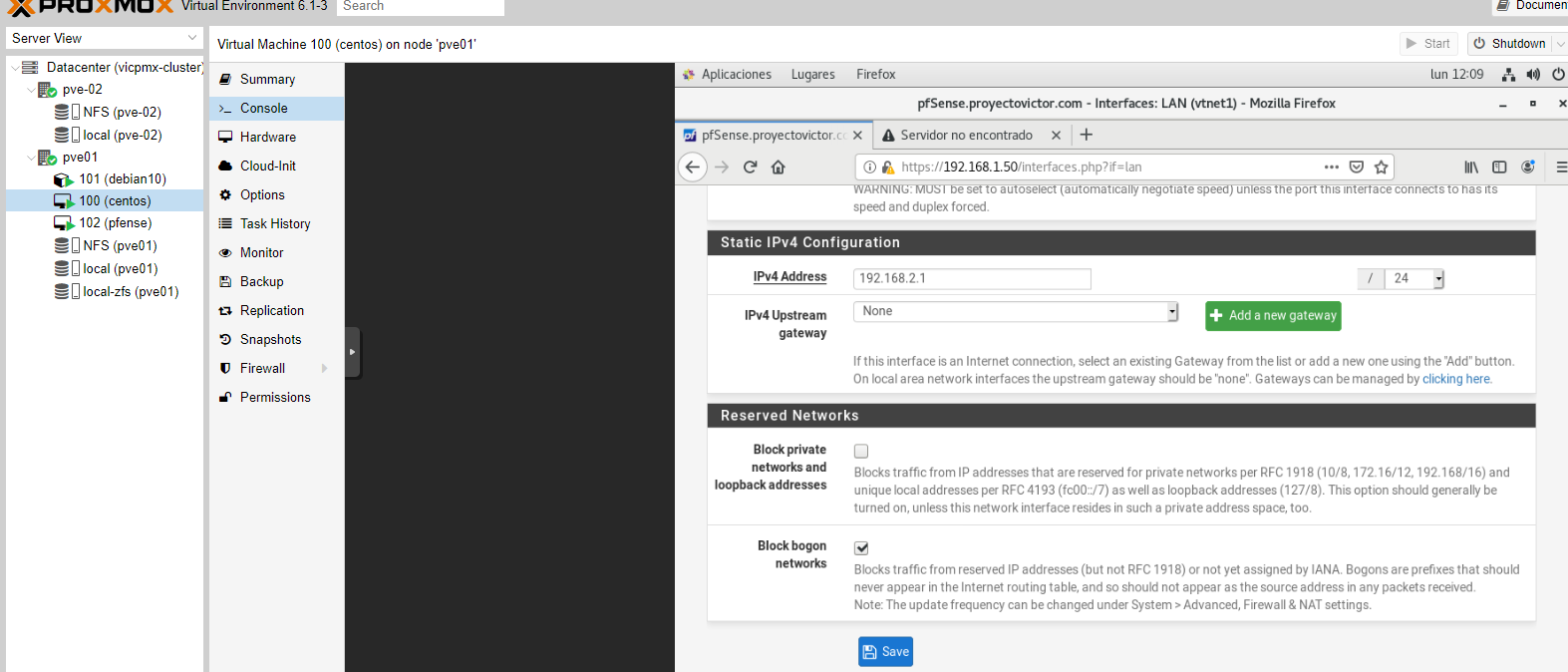

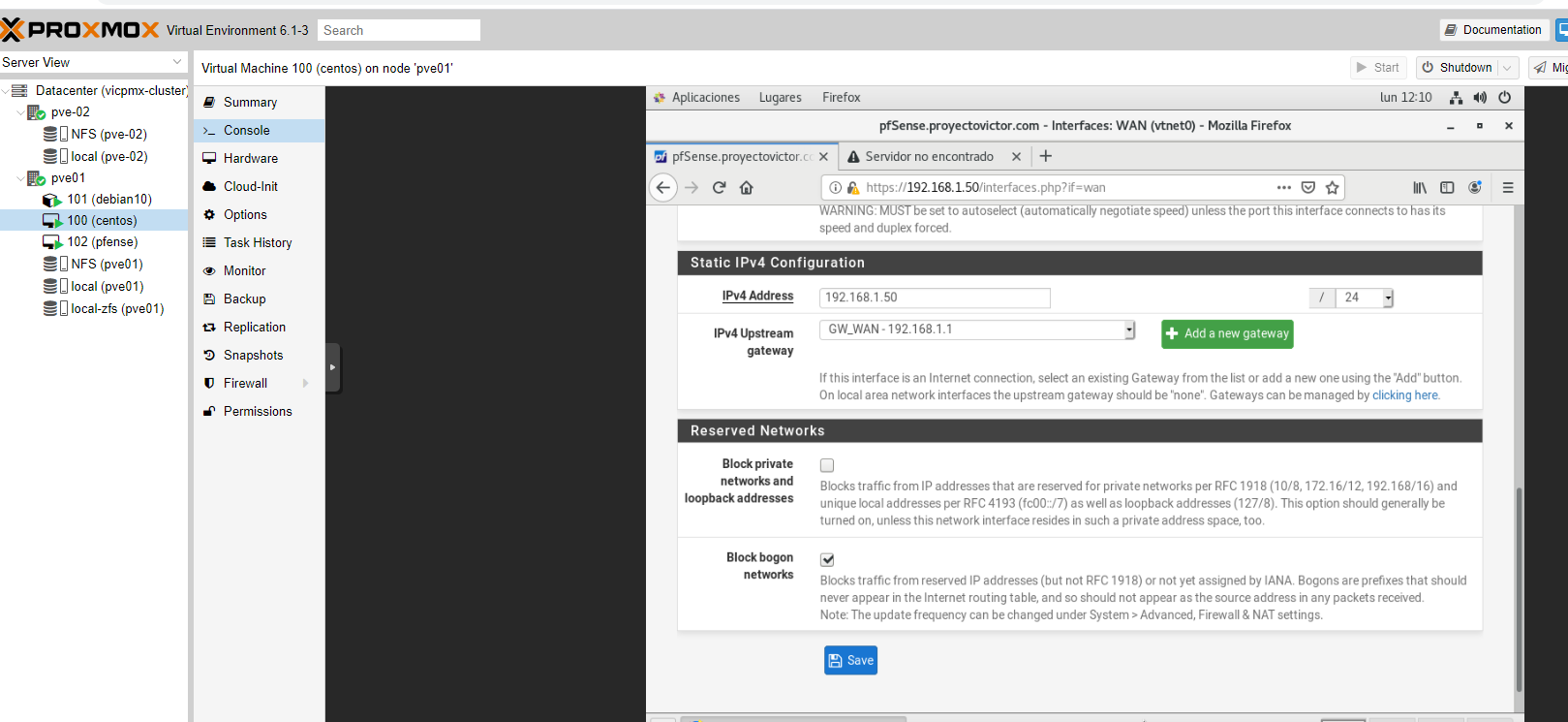

When creating the pfSense machine I have associated the NIC of the WAN with the IP 192.168.1.50/gw 192.168.1.1 (router) for administration, and the LAN with the IP 192.168.2.1/gw 192.168.1.1
I also have two MV's connected to the vmbr2 bridge.
CentOS 192.168.2.2 gw 192.168.2.1
Debian 192.168.2.3 gw 192.168.2.1
When I create and apply any WAN or LAN rule in pfsense, it doesn't works.
Is the problem due to poor configuration or connections to devices?.

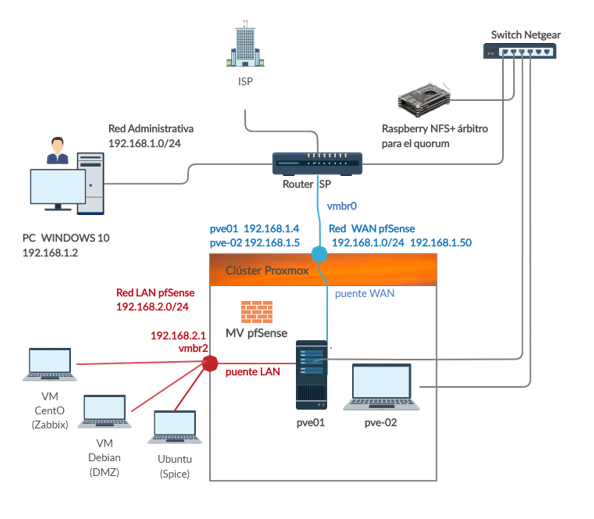

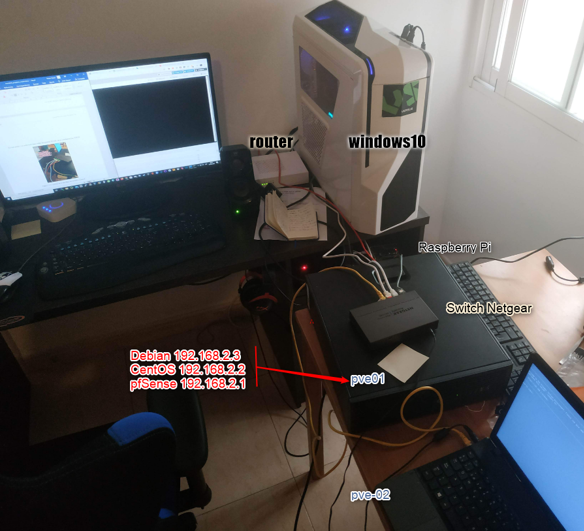

I have attached the network diagram, the physical topologies, and the network configuration.
Thank you very much.
https://i.gyazo.com/c654bdbcc5abf1f80e0d1e7560c5840e.png
https://i.gyazo.com/df02f0a0984d4317da37e510099d75ff.png
https://i.gyazo.com/a290bf66ee9c99a749ff5657ed05b72f.png
https://i.gyazo.com/1cf47364360ba0592648ae3940c57347.png
https://i.gyazo.com/753786bbc217ce14ae570bbb5338c82b.png
https://i.gyazo.com/19f04276b3a00395f364f1e8b0575f25.png
https://i.gyazo.com/c69851028bf9a7b8d8094a657878dda7.png
https://i.gyazo.com/104a30c2fda2bf19249055a1f39837e7.png
https://i.gyazo.com/1c0d91394aee03e4d0b1acf83140ff60.png
