New installed Proxmox VE 8.2 no web connection

[t.m]

Hi i'm new on proxmox.
I installed proxmox on my second laptop (lenovo thinkpad l430) then i start it and log in, then reboot it and log in again, go to next room to get wired connection to my router. My main laptop i connected by wifi to the same router. I try to connect to web GUI via "https://192.168.100.2/8006" as showed on the proxmox. but i get:

This site can’t be reached​

192.168.100.2 took too long to respond.


Try:

• Checking the connection
• Checking the proxy and the firewall
• Running Windows Network Diagnostics

ERR_CONNECTION_TIMED_OUT

how do i fix this ?
do i have to use cable with my main laptop too ?



[cheiss]

Hi,

can you ping the Proxmox VE host?
are you sure 192.168.100.2 is a free IP in your network and not some DHCP-reserved range?
Also, what is the IP address of your laptop? Have you checked whether they are really the same network?

You can also log in on the Proxmox VE host directly on the console and check it's network, by running e.g. ip address. You can also post the output if you unsure, a (readable!) photo works too.



[t.m]

Hi,

can you ping the Proxmox VE host?
are you sure 192.168.100.2 is a free IP in your network and not some DHCP-reserved range?
Also, what is the IP address of your laptop? Have you checked whether they are really the same network?

You can also log in on the Proxmox VE host directly on the console and check it's network, by running e.g. ip address. You can also post the output if you unsure, a (readable!) photo works too.

Nope when i use ping in cmd on windows I get this:
"ping 192.168.100.2

Pinging 192.168.100.2 with 32 bytes of data:
Request timed out.
Request timed out.
Request timed out.
Request timed out.

Ping statistics for 192.168.100.2:
Packets: Sent = 4, Received = 0, Lost = 4 (100% loss)"
so this ip is free.

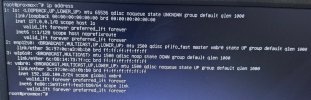

this is the output of "ip address"



[cheiss]

What network is your WiFi/Laptop on?
Is it on the same segment? If not, do you have appropriate routing set up?



[t.m]

What network is your WiFi/Laptop on?
Is it on the same segment? If not, do you have appropriate routing set up?

same network as the proxmox is connected
i don't know how to find are they on the same segment and its basic tplink router nothing special(home network)



[cheiss]

The IP address / netmask of your Laptop would be helpful in determining that.

Also, can you reach your router and/or the internet (e.g. ping 1.1.1.1) from the Proxmox VE host?



[t.m]

The IP address / netmask of your Laptop would be helpful in determining that.

Also, can you reach your router and/or the internet (e.g. ping 1.1.1.1) from the Proxmox VE host?

On my laptop:
from cmd "ipconfig"
Ethernet adapter VirtualBox Host-Only Network:

Connection-specific DNS Suffix . :
Link-local IPv6 Address . . . . . : fe80::5f7:c2c:41c6:5fe3%12
IPv4 Address. . . . . . . . . . . : 192.168.56.1
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . :

Wireless LAN adapter Local Area Connection* 1:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :

Wireless LAN adapter Local Area Connection* 10:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :

Ethernet adapter Ethernet:

Connection-specific DNS Suffix . :
Link-local IPv6 Address . . . . . : fe80::62a6:640b:59d7:3e8d%13
IPv4 Address. . . . . . . . . . . : 192.168.1.109
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . : 192.168.1.1

Wireless LAN adapter Wi-Fi:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix .


When i ping 1.1.1.1 from proxmox ve host i get:
From 192.168.10.2 icmp_seq=1 Destination host unreachable
..............
--- 1.1.1.1 ping statistics--
7 packets transmitted, 0 received, +6 errors, 100% packet loss time 6184ms
pipe 4


this is from my cable connection with my router on my laptop
Connection-specific DNS Suffix:
Description: Realtek PCIe GbE Family Controller
DHCP Enabled: Yes
IPv4 Address: 192.168.1.109
IPv4 Subnet Mask: 255.255.255.0
IPv4 Default Gateway: 192.168.1.1
IPv4 DHCP Server: 192.168.1.1
IPv4 DNS Server: 192.168.1.1
IPv4 WINS Server:
NetBIOS over Tcpip Enabled: Yes
Link-local IPv6 Address: fe80::62a6:640b:59d7:3e8d%13
IPv6 Default Gateway:
IPv6 DNS Server:


this is from my tplink router settings:
IP Address:77.76.186.47(Dynamic IP)
Subnet Mask:255.255.255.0
Default Gateway:77.76.186.1
DNS Server:77.76.140.2 8.8.8.8
