Hello,
as part of an ongoing study to migrate our VMware Vsan 6.7 virtual platform to Proxmox version 8, I have a few questions to ask in the network section:
First and foremost, my Vsan cluster contains 5 nodes: 3 HP proliant DL 380 gen 9 servers and 2 HP proliant DL 380 gen 10 servers, each containing 4 1G network cards and 2 10g network cards.
The 4 physical network cards are linked by a virtual switch vswitch0 connected with the prod VLANs and with the VMkernel management and vMotion adapters, the other two 10g network cards are reserved for the VSAN storage flow.

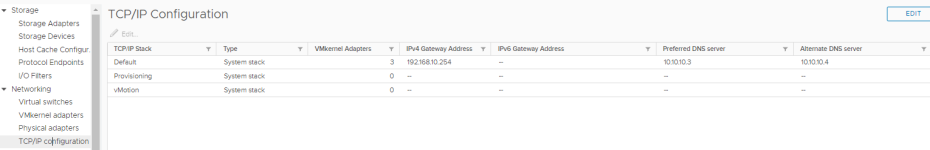

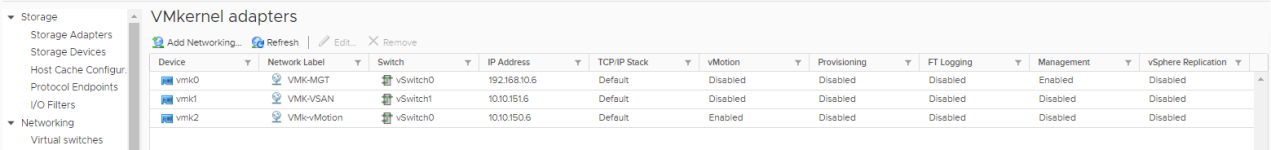

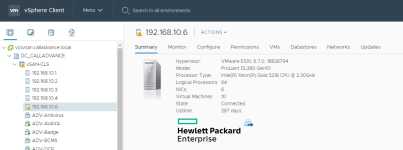

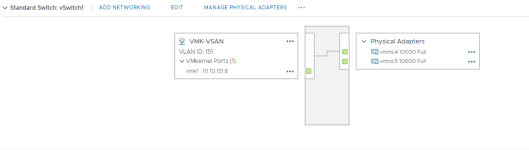

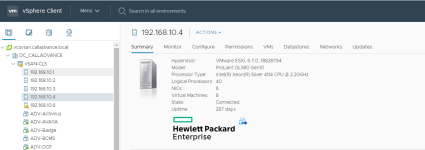

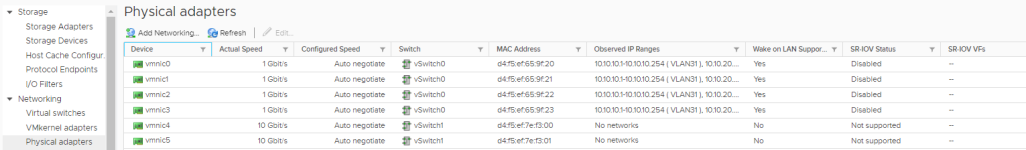

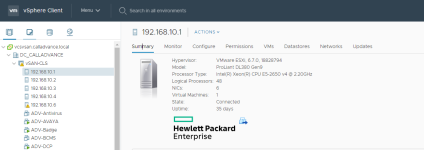

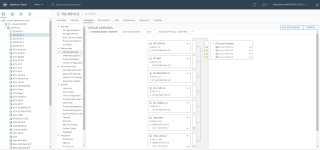

I'd like to know if this high network availability configuration is also possible in proxmox with all the options shown in the attached screenshots.
Thanks for your help
Cordially
as part of an ongoing study to migrate our VMware Vsan 6.7 virtual platform to Proxmox version 8, I have a few questions to ask in the network section:
First and foremost, my Vsan cluster contains 5 nodes: 3 HP proliant DL 380 gen 9 servers and 2 HP proliant DL 380 gen 10 servers, each containing 4 1G network cards and 2 10g network cards.
The 4 physical network cards are linked by a virtual switch vswitch0 connected with the prod VLANs and with the VMkernel management and vMotion adapters, the other two 10g network cards are reserved for the VSAN storage flow.
I'd like to know if this high network availability configuration is also possible in proxmox with all the options shown in the attached screenshots.
Thanks for your help
Cordially
