Inaccesible boot device

B

Borja

New Member
Nov 7, 2023
7
0
1
I have migrated a computer with Windows 2022 Standard from VMWare ESXI to Proxmox and when I try to boot it I get the error 'inaccessible boot device'. Before doing the migration I had uninstalled the VMWare Tools from the server. I have tried changing the disk from SATA to IDE and still the same thing happens. I have been reading dozens of pages that talk about this problem and I have consulted with some AI but no matter how hard I try I can't get it to boot, can anyone help me?

The funny thing is that the other day I imported another server with similar characteristics and it booted without problems.

I have done the migration with the wizard that incorporates Proxmox connecting before directly to VMWare ESXI. I have tried several times to do it, in some occasions I have tried uninstalling previously the VMWare Tools, installing before the migration the VirtIO drivers. In all cases the result has been the same.

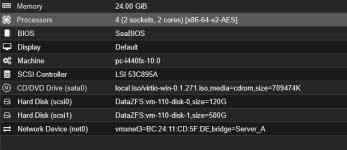

I put screen with the details of the last migration.


Attachments

  • Import.PNG
    21.8 KB · Views: 7
Borja said:
uninstalling previously the VMWare Tools, installing before the migration the VirtIO drivers
Click to expand...
it's not mandatory.
VirtIO SCSI driver cannot be "pre-installed", it's installed only within Windows running on PVE when a SCSI drive is present / attached.

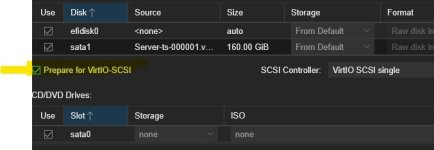

That's why the recommended way is boot once with sata, to post install VirtIO SCSI driver with a dummy temporary SCSI drive attached.

You can try the alternative "offline" VirtIO SCSI driver injecting / adding :
G

[SOLVED] Post in thread 'Migrating a VMware Windows 2019 to Proxmox using Veeam'

Jaques said:
>drvload vioscsi.inf
Click to expand...
Yes AFAIK that only loads the driver - but doesn't install it to your Windows install.

I believe you need to use the dism command to actually install the drivers. See an example here through Windows Recovery.

Last edited:
Hi, I have followed the steps in the link, the problem I see is that the hard disk volumes do not have letters assigned (I put the image), I have booted the main disk as SATA and I have added a 1Gb SCSI dummy disk. When I load the driver with drvload I can see that it has loaded the SCSI disk but I can't run DISM because I have no letter assigned.


Attachments

  • diskpart.PNG
    8.8 KB · Views: 4
I assigned the letter C: to the drive where the Windows folder is (first image), I executed the DISM command to install the vioscsi driver and I got the error of image 2. I tried to remove the Hidden and Read-Only attributes of Volume 1 and then it installed the driver. When I reboot the machine again I get Windows Boot Manager saying that the device is not connected or cannot access (third image).


Attachments

  • 1.PNG
    9.2 KB · Views: 11
  • 2.PNG
    8.2 KB · Views: 11
  • 3.PNG
    23.2 KB · Views: 11
Hello, I have followed the steps you have told me, I attach screenshots of the results. Thank you very much.


Attachments

  • 5.PNG
    122.9 KB · Views: 7
  • 4.PNG
    116.7 KB · Views: 5
  • 3.PNG
    102.2 KB · Views: 6
  • 2.PNG
    12.1 KB · Views: 6
  • 1.PNG
    28.5 KB · Views: 7
  • 6.PNG
    66.7 KB · Views: 7
If you can see the disk below, then there seems to be a problem with the bcd.

dism /image:c: /add-driver /driver:d:¥amd64

I guess I need to fix it with bcdboot or bootrec or something.

I don't think it's a driver thing as it also occurs with sata and ide.

Last edited:
uzumo said:
I don't think it's a driver thing as it also occurs with sata and ide.
Click to expand...
indeed. it's something else.
I don't think it's boot manager as we can see Windows Boot Manager in #9

Weird thing is VirtIO SCSI Driver offline installation was successful in #11 (so screenshots of Log are pointless) where in #9 not.
Try now detach/attach boot disk as scsi.

By the way, it's not a PVE scope, it's job for a Windows guy and not over a forum as there is endless of combinations.

_gabriel said:
By the way, it's not a PVE scope, it's job for a Windows guy and not over a forum as there is endless of combinations.
Click to expand...
I agree. It is no longer something to be discussed here.
_gabriel said:
indeed. it's something else.
I don't think it's boot manager as we can see Windows Boot Manager in #9
Click to expand...
I believe it is a setting in Windows Boot Manager, so it is necessary to rewrite it with bootrec or bcdboot to the correct content.
