HA cluster problem VM migration

[odmicnheg]

Hi all!
I have two node
node1 - 192.168.0.1 (Proxmox 2.1)
node2 - 192.168.0.2 (Proxmox 2.1)

I have problem with my cluster.
I created two node cluster (same as in manual)
# cat /etc/pve/cluster.conf

<?xml version="1.0"?>
<cluster config_version="15" name="my-cluster">
<cman expected_votes="1" keyfile="/var/lib/pve-cluster/corosync.authkey" two_node="1"/>
<fencedevices>
<fencedevice agent="fence_intelmodular" ipaddr="192.168.0.2" login="admin" name="ims" passwd="123456" snmp_auth_prot="SHA" snmp_sec_level="auth" snmp_version="3"/>
</fencedevices>
<clusternodes>
<clusternode name="node1" nodeid="1" votes="1">
<fence>
<method name="1">
<device name="ims" port="1"/>
</method>
</fence>
</clusternode>
<clusternode name="node2" nodeid="2" votes="1">
<fence>
<method name="1">
<device name="ims" port="2"/>
</method>
</fence>
</clusternode>
</clusternodes>
<rm>
<pvevm autostart="1" vmid="124"/>
</rm>
</cluster>

I created DRBD and and VM (vmid=124) managed by HA.
VM on node1 with Hard Disk

Migrated VM on node2 without Hard Disk

When I stoping RGManager VM migrate to node2, but I can`t see Hard Disk here.
On first node all right.

Storage where VM created are with drbd and shared

When Vm migrate to node2 on both nodes I see this
node1
# lvscan |grep 124
inactive '/dev/drbdvg/vm-124-disk-1' [32.00 GiB] inherit

node2
# lvscan |grep 124
inactive '/dev/drbdvg/vm-124-disk-1' [32.00 GiB] inherit

Where is my problem? What am I doing wrong?



[dietmar]

Where is my problem? What am I doing wrong?

Most likely the cluster was never in sync?



[odmicnheg]

Most likely the cluster was never in sync?

How can I check this?
DRBD is synced



[dietmar]

How can I check this?

# pvecm status



[odmicnheg]

# pvecm status

root@node1:~# pvecm status
Version: 6.2.0
Config Version: 15
Cluster Name: my-cluster
Cluster Id: 180
Cluster Member: Yes
Cluster Generation: 180
Membership state: Cluster-Member
Nodes: 2
Expected votes: 1
Total votes: 2
Node votes: 1
Quorum: 1
Active subsystems: 6
Flags: 2node
Ports Bound: 0 177
Node name: node1
Node ID: 1
Multicast addresses: 239.192.0.180
Node addresses: 192.168.0.1
root@node1:~#

Node2 status
root@node2:~# pvecm status
Version: 6.2.0
Config Version: 15
Cluster Name: my-cluster
Cluster Id: 180
Cluster Member: Yes
Cluster Generation: 180
Membership state: Cluster-Member
Nodes: 2
Expected votes: 1
Total votes: 2
Node votes: 1
Quorum: 1
Active subsystems: 5
Flags: 2node
Ports Bound: 0
Node name: node2
Node ID: 2
Multicast addresses: 239.192.0.180
Node addresses: 192.168.0.2



[dietmar]

What is the output of

# md5sum /etc/pve/qemu-server/124.conf

on both nodes?



[odmicnheg]

What is the output of

# md5sum /etc/pve/qemu-server/124.conf

on both nodes?

When VM on node1

root@node1:~# md5sum /etc/pve/qemu-server/124.conf
caef4dd6dadee21c2263c05db96f68a5 /etc/pve/qemu-server/124.conf

root@node2:~# md5sum /etc/pve/qemu-server/124.conf
md5sum: /etc/pve/qemu-server/124.conf: No such file or directory
root@node2:~# ls -alh /etc/pve/qemu-server
lrwxr-x--- 1 root www-data 0 Jan 1 1970 /etc/pve/qemu-server -> nodes/node2/qemu-server
root@node2:~# md5sum /etc/pve/nodes/node1/qemu-server/124.conf
caef4dd6dadee21c2263c05db96f68a5 124.conf

After migration, they are different
root@node2:/etc/pve# md5sum /etc/pve/qemu-server/124.conf
2056a1b3b31db7126623a9d64e5bc9c7 /etc/pve/qemu-server/124.conf



[dietmar]

After migration, they are different

never saw that - I have no idea who/what removes the drive from the config?



[odmicnheg]

root@node1:~# clustat
Cluster Status for my-cluster @ Thu Oct 18 15:28:54 2012
Member Status: Quorate


Member Name ID Status
------ ---- ---- ------
node1 1 Online, Local, rgmanager
node2 2 Online


Service Name Owner (Last) State
------- ---- ----- ------ -----
pvevm:124 node1 started



[odmicnheg]

Can you show me working cluster.conf file?

Step by step what I did:

1. Created cluster and added node2.
node1# pvecm create my-cluster
node2# pvecm add MY_CLUSTER_IP

2. Created DRBD storage and sync

3. In proxmox
Datacenter -> Storage -> Add -> LVM Group
ID: drbd
VolumeGroup: drbdvg
Shared: yes

4. Create cluster.conf with fence

5. Create VM on drbd lvm.

6. Stop rgmanager for migrate VM. (On node2 VM without storage ((( )



[dietmar]

6. Stop rgmanager for migrate VM. (On node2 VM without storage ((( )

Not sure what you are trying to do, but you use 'two_node=1'. So either kill/fence a node, or keep both nodes running. Everything between is very dangerours!



[WaltervdSchee]

I had allmost the same issue before, I came down to the CDROM image not being available on the second node local storage iso directory.
Either synching up the iso storage directory or removing the cdrom image from the VM storage (not needed anymore since the OS is already installed anyway)
fixed it for me...



[odmicnheg]

I had allmost the same issue before, I came down to the CDROM image not being available on the second node local storage iso directory.
Either synching up the iso storage directory or removing the cdrom image from the VM storage (not needed anymore since the OS is already installed anyway)
fixed it for me...

Thanks. Yes, when I removed the cd-rom it worked. But now I have another problem. When I am adding new storage to the VM after migration it don't migrate with this VM.

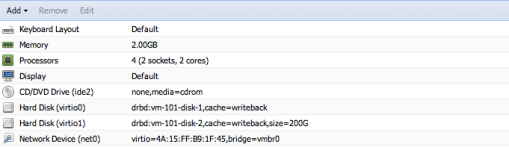

Before migrate


After migrate
