Error server EXT4-fs error (device dm1) ext4_jurnal_check_start:64

[Андрей]

Hello!

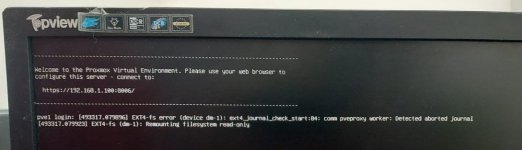

Error "EXT4-fs error (device dm1) ext4_jurnal_check_start:64" in proxmox 8.3.2
Proxmox 8.3.2
Linux pve1 6.8.12-5-pve #1 SMP PREEMPT_DYNAMIC PMX 6.8.12-5 (2024-12-03T10:26Z) x86_64

The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
Last login: Fri Nov 29 15:17:18 +07 2024 on pts/0
root@pve1:~# fdisk -l
Disk /dev/nvme0n1: 1.82 TiB, 2000398934016 bytes, 3907029168 sectors
Disk model: Samsung SSD 990 PRO with Heatsink 2TB
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: 14DE26AE-9692-4B0E-ADAB-83F8F00DA96B

Device Start End Sectors Size Type
/dev/nvme0n1p1 34 2047 2014 1007K BIOS boot
/dev/nvme0n1p2 2048 2099199 2097152 1G EFI System
/dev/nvme0n1p3 2099200 3907029134 3904929935 1.8T Linux LVM


Disk /dev/mapper/pve-swap: 8 GiB, 8589934592 bytes, 16777216 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/mapper/pve-root: 96 GiB, 103079215104 bytes, 201326592 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/sda: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors
Disk model: Samsung SSD 870
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/sdb: 3.64 TiB, 4000787030016 bytes, 7814037168 sectors
Disk model: TOSHIBA MG08ADA4
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/mapper/SSD-vm--100--disk--0: 931 GiB, 999653638144 bytes, 1952448512 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: D01FC996-DA11-4472-81D3-7B88384ABF79

Device Start End Sectors Size Type
/dev/mapper/SSD-vm--100--disk--0-part1 34 32767 32734 16M Microsoft reserved
/dev/mapper/SSD-vm--100--disk--0-part2 32768 1952444415 1952411648 931G Microsoft basic data


Disk /dev/mapper/Backup-vm--100--disk--0: 3.64 TiB, 3999688294400 bytes, 7811891200 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: 9973224F-ABCF-4D24-B670-4E30FCAD494A

Device Start End Sectors Size Type
/dev/mapper/Backup-vm--100--disk--0-part1 34 32767 32734 16M Microsoft reserved
/dev/mapper/Backup-vm--100--disk--0-part2 32768 7811620863 7811588096 3.6T Microsoft basic data


Disk /dev/mapper/pve-vm--100--disk--0: 300 GiB, 322122547200 bytes, 629145600 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 65536 bytes / 65536 bytes
Disklabel type: dos
Disk identifier: 0xbfb637b1

Device Boot Start End Sectors Size Id Type
/dev/mapper/pve-vm--100--disk--0-part1 * 2048 1126399 1124352 549M 7 HPFS/NTFS/exFAT
/dev/mapper/pve-vm--100--disk--0-part2 1126400 629039103 627912704 299.4G 7 HPFS/NTFS/exFAT
/dev/mapper/pve-vm--100--disk--0-part3 629039104 629141503 102400 50M e W95 FAT16 (LBA)


Disk /dev/mapper/pve-vm--101--disk--0: 200 GiB, 214748364800 bytes, 419430400 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 65536 bytes / 65536 bytes
Disklabel type: dos
Disk identifier: 0x59f80405

Device Boot Start End Sectors Size Id Type
/dev/mapper/pve-vm--101--disk--0-part1 * 2048 1126399 1124352 549M 7 HPFS/NTFS/exFAT
/dev/mapper/pve-vm--101--disk--0-part2 1126400 419325951 418199552 199.4G 7 HPFS/NTFS/exFAT
/dev/mapper/pve-vm--101--disk--0-part3 419325952 419426303 100352 49M e W95 FAT16 (LBA)



[l.leahu-vladucu]

Hello Андрей! It sounds like a failing drive. Is this a new server you installed PVE on? I would recommend the following:

1. Try to check the drive S.M.A.R.T. values to see if it shows any errors.
2. Check the journal shortly before the issues started to happen (use journalctl --since with a time shortly before the issues started to happen, e.g. 30 minutes before).



[Андрей]

Hello Андрей! It sounds like a failing drive. Is this a new server you installed PVE on? I would recommend the following:

1. Try to check the drive S.M.A.R.T. values to see if it shows any errors.
2. Check the journal shortly before the issues started to happen (use journalctl --since with a time shortly before the issues started to happen, e.g. 30 minutes before).

Hi!
The disk is new. New system PVE installed. New power supply.



[l.leahu-vladucu]

Do you see any error messages in the journal? (see my last message)



[Андрей]

Jan 21 09:35:37 pve1 kernel: ata6: SATA max UDMA/133 abar m2048@0xf732b000 port 0xf732b380 irq 132 lpm-pol 0
Jan 21 09:35:37 pve1 kernel: ata2: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
Jan 21 09:35:37 pve1 kernel: ata1: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
Jan 21 09:35:37 pve1 kernel: ata6: SATA link down (SStatus 4 SControl 300)
Jan 21 09:35:37 pve1 kernel: ata3: SATA link down (SStatus 4 SControl 300)
Jan 21 09:35:37 pve1 kernel: ata4: SATA link down (SStatus 4 SControl 300)
Jan 21 09:35:37 pve1 kernel: ata5: SATA link down (SStatus 4 SControl 300)
Jan 21 09:35:37 pve1 kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.PCI0.SAT0.PRT0._GTF.DSSP], AE_NOT_FOUND (20230628/psargs-330)
Jan 21 09:35:37 pve1 kernel:
Jan 21 09:35:37 pve1 kernel: No Local Variables are initialized for Method [_GTF]
Jan 21 09:35:37 pve1 kernel:
Jan 21 09:35:37 pve1 kernel: No Arguments are initialized for method [_GTF]
Jan 21 09:35:37 pve1 kernel:
Jan 21 09:35:37 pve1 kernel: ACPI Error: Aborting method \_SB.PCI0.SAT0.PRT0._GTF due to previous error (AE_NOT_FOUND) (20230628/psparse-529)
Jan 21 09:35:37 pve1 kernel: ata1.00: supports DRM functions and may not be fully accessible
Jan 21 09:35:37 pve1 kernel: ata1.00: ATA-11: Samsung SSD 870 EVO 1TB, SVT02B6Q, max UDMA/133
Jan 21 09:35:37 pve1 kernel: ata1.00: 1953525168 sectors, multi 1: LBA48 NCQ (depth 32), AA
Jan 21 09:35:37 pve1 kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.PCI0.SAT0.PRT1._GTF.DSSP], AE_NOT_FOUND (20230628/psargs-330)
Jan 21 09:35:37 pve1 kernel:
Jan 21 09:35:37 pve1 kernel: No Local Variables are initialized for Method [_GTF]
Jan 21 09:35:37 pve1 kernel:
Jan 21 09:35:37 pve1 kernel: No Arguments are initialized for method [_GTF]
Jan 21 09:35:37 pve1 kernel:
Jan 21 09:35:37 pve1 kernel: ACPI Error: Aborting method \_SB.PCI0.SAT0.PRT1._GTF due to previous error (AE_NOT_FOUND) (20230628/psparse-529)
Jan 21 09:35:37 pve1 kernel: ata2.00: ATA-10: TOSHIBA MG08ADA400N, 4304, max UDMA/133
Jan 21 09:35:37 pve1 kernel: ata2.00: 7814037168 sectors, multi 16: LBA48 NCQ (depth 32), AA
Jan 21 09:35:37 pve1 kernel: ata2.00: Features: NCQ-prio
Jan 21 09:35:37 pve1 kernel: ata1.00: Features: Trust Dev-Sleep NCQ-sndrcv
Jan 21 09:35:37 pve1 kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.PCI0.SAT0.PRT0._GTF.DSSP], AE_NOT_FOUND (20230628/psargs-330)
Jan 21 09:35:37 pve1 kernel:
Jan 21 09:35:37 pve1 kernel: No Local Variables are initialized for Method [_GTF]
Jan 21 09:35:37 pve1 kernel:
Jan 21 09:35:37 pve1 kernel: No Arguments are initialized for method [_GTF]
Jan 21 09:35:37 pve1 kernel:
Jan 21 09:35:37 pve1 kernel: ACPI Error: Aborting method \_SB.PCI0.SAT0.PRT0._GTF due to previous error (AE_NOT_FOUND) (20230628/psparse-529)
Jan 21 09:35:37 pve1 kernel: ata1.00: supports DRM functions and may not be fully accessible
Jan 21 09:35:37 pve1 kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.PCI0.SAT0.PRT1._GTF.DSSP], AE_NOT_FOUND (20230628/psargs-330)
Jan 21 09:35:37 pve1 kernel:
Jan 21 09:35:37 pve1 kernel: No Local Variables are initialized for Method [_GTF]
Jan 21 09:35:37 pve1 kernel:
Jan 21 09:35:37 pve1 kernel: No Arguments are initialized for method [_GTF]
Jan 21 09:35:37 pve1 kernel:
Jan 21 09:35:37 pve1 kernel: ACPI Error: Aborting method \_SB.PCI0.SAT0.PRT1._GTF due to previous error (AE_NOT_FOUND) (20230628/psparse-529)
