Hi there,
I am having trouble with OSD latency, ranging inbetween 4 to 20 milliseconds:
The Servers are somewhat old, I just moved an existing Setup from VMware to Proxmox.
Hardware Setup:
- 4 Servers (2x Intel Xeon 4214, 256GB DDR4, Mellanox Connectx-3 40Gbit/s, 4x 2TB Samsung 990 Pro NVMe, 2x 256 SATA SSD on HW Raid1 for OS)
- 2x Juniper QFX 5100, Virtual Chassis mode, (2x 40 GBit/s via DAC per Host, 4x 40 Gbit/s DAC VC interconnect)
Network Setup:
LACP Bond --> VLAN --> Bridges --> VMs/Ceph.
I am having separate VLANs for Ceph Frontend/Backend.
Software Setup / Tuning:
- PVE 9.1.2 with Ceph 19.2.3, Size 3, 1024 PGs
- IOMMU and all Energy saving features (C-States) deactivated.
- Switches in "cut through" forwarding mode, latency under 0,1 ms.
- Iperf shows 50Gbit+ between Hosts.
- Local NVMe performance as expected.
Its just a bit slowish IOPS-Wise:
One Queue 4K results in ~ 5K IOPS.
A Queue of 64 yields a harvest of about 60K IOPS.
Sequential RW Bandwith is somewhere between 5 and 10 GB/Sec, as expected.
Tests are performed from within a Windows 11 VM, VirtIO, Cache mode Write Back.
So everything is fine, its just not what I expect from 16 NVMe dives.
So I try to bring the OSD latency down, at least I think that this is my problem.

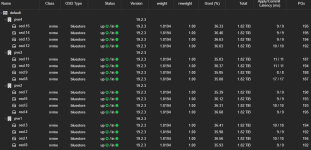

I am having trouble with OSD latency, ranging inbetween 4 to 20 milliseconds:
Code:
root@pve2:~# ceph osd perf
osd commit_latency(ms) apply_latency(ms)
3 11 11
0 12 12
2 10 10
4 12 12
5 11 11
6 12 12
7 13 13
8 13 13
9 11 11
10 15 15
11 12 12
12 12 12
13 11 11
14 11 11
1 17 17
15 9 9The Servers are somewhat old, I just moved an existing Setup from VMware to Proxmox.
Hardware Setup:
- 4 Servers (2x Intel Xeon 4214, 256GB DDR4, Mellanox Connectx-3 40Gbit/s, 4x 2TB Samsung 990 Pro NVMe, 2x 256 SATA SSD on HW Raid1 for OS)
- 2x Juniper QFX 5100, Virtual Chassis mode, (2x 40 GBit/s via DAC per Host, 4x 40 Gbit/s DAC VC interconnect)
Network Setup:
LACP Bond --> VLAN --> Bridges --> VMs/Ceph.
I am having separate VLANs for Ceph Frontend/Backend.
Software Setup / Tuning:
- PVE 9.1.2 with Ceph 19.2.3, Size 3, 1024 PGs
- IOMMU and all Energy saving features (C-States) deactivated.
- Switches in "cut through" forwarding mode, latency under 0,1 ms.
- Iperf shows 50Gbit+ between Hosts.
- Local NVMe performance as expected.
Its just a bit slowish IOPS-Wise:
One Queue 4K results in ~ 5K IOPS.
A Queue of 64 yields a harvest of about 60K IOPS.
Sequential RW Bandwith is somewhere between 5 and 10 GB/Sec, as expected.
Tests are performed from within a Windows 11 VM, VirtIO, Cache mode Write Back.
So everything is fine, its just not what I expect from 16 NVMe dives.
So I try to bring the OSD latency down, at least I think that this is my problem.
