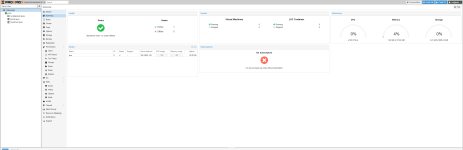

Hello. I have a fresh Proxmox installation, but the "HD space" is Node summary is displaying 93.93GB but I have a 1TB HDD disk. It displays correct in datacenter summary.

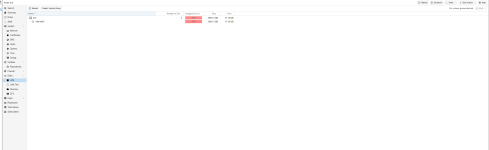

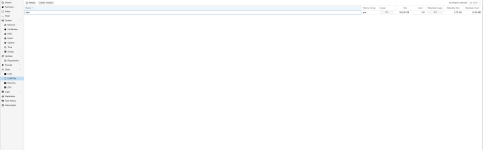

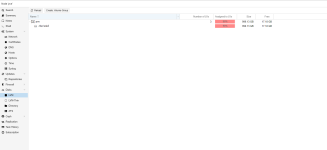

Photos:

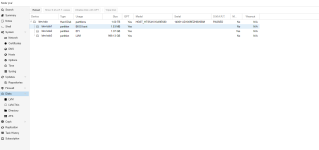

Looks like you have an LVM setup. That is the default if you set up PVE on a machine with only one disk. Note the "usage" column of /dev/sda3.
Your root filesystem is set up as a logical volume on the "pve" volume group. That is the 94 GB "hd space" that PVE displays on the summary screen and is where the OS itself resides. There is also a "data" volume of 853 GB, that is where your virtual drives for virtual machines and containers will be placed. All of your storage is accounted for as far as I can tell.
