Error EXT4-FS in VM

zero.

New Member
Jun 9, 2023
9
2
3
Hello,
I'm running a VM with Debian 12 on Proxmox, and I'm getting some errors related with the hard drive. Apparently the HDD is healthy according to smart.

It has one mechanical HDD by passed through by ID. The controller is SCSI.

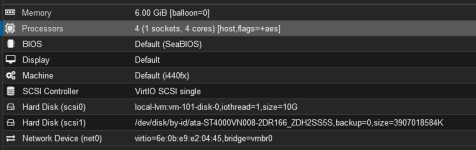

The config of the vm is as follows:

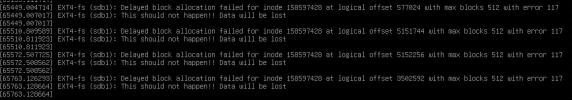

These are the errors.

I would like to know if my configuration is wrong and what I could do to solve this problem.
I've tried to run fsck on the vm and after a few weeks of running the vm the errors appear again.


Attachments

  • 1710749119960.png
    43.1 KB · Views: 3
  • 1710749655449.png
    18.4 KB · Views: 3
  • 1710749581777.png
    4.3 KB · Views: 3
Can't see anything wrong.
Is there a specific reason you're using a processor type Host with aes flag, instead of x86-64-v2-AES?
Is your PVE fully updated?

I've tried to run fsck on the vm and after a few weeks of running the vm the errors appear again.
Do you have dmesg errors for that drive (scsi1) on your PVE host?

Since you passthrough that disk (scisi1) directly to your VM. Is this specific disk uses by any other type of datastore or vm/lxc?

edit: whats the output of fsck and smartctl? Of scsi1 on your PVE?

Last edited:
Do you have dmesg errors for that drive (scsi1) on your PVE host?

Since you passthrough that disk (scisi1) directly to your VM. Is this specific disk uses by any other type of datastore or vm/lxc?

edit: whats the output of fsck and smartctl? Of scsi1 on your PVE?
Output for dmesg

smartctl the result is PASSED
Code:
root@pve:~# smartctl -a /dev/sda1
smartctl 7.3 2022-02-28 r5338 [x86_64-linux-6.5.13-1-pve] (local build)
Copyright (C) 2002-22, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST4000VN008-2DR166
Serial Number:    ZDH2SS5S
LU WWN Device Id: 5 000c50 0a5e102d1
Firmware Version: SC60
User Capacity:    4,000,787,030,016 bytes [4.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5980 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database 7.3/5319
ATA Version is:   ACS-3 T13/2161-D revision 5
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 1.5 Gb/s)
Local Time is:    Mon Mar 18 09:56:13 2024 CET
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  581) seconds.
Offline data collection
capabilities:                    (0x73) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        No Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        ( 613) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x50bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000f   079   064   044    Pre-fail  Always       -       80835536
  3 Spin_Up_Time            0x0003   098   093   000    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   097   097   020    Old_age   Always       -       3762
  5 Reallocated_Sector_Ct   0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000f   092   060   045    Pre-fail  Always       -       1494868200
  9 Power_On_Hours          0x0032   063   063   000    Old_age   Always       -       32435 (105 88 0)
 10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       193
184 End-to-End_Error        0x0032   100   100   099    Old_age   Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   100   000    Old_age   Always       -       0
189 High_Fly_Writes         0x003a   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel 0x0022   069   054   040    Old_age   Always       -       31 (Min/Max 31/33)
191 G-Sense_Error_Rate      0x0032   100   100   000    Old_age   Always       -       0
192 Power-Off_Retract_Count 0x0032   099   099   000    Old_age   Always       -       3580
193 Load_Cycle_Count        0x0032   001   001   000    Old_age   Always       -       286076
194 Temperature_Celsius     0x0022   031   046   000    Old_age   Always       -       31 (0 14 0 0 0)
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       30007h+37m+59.049s
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       98704340031
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       88989233101

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%     32362         -
# 2  Short offline       Completed without error       00%         1         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

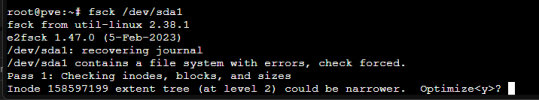

fsck
