Hello,

I am trying to install Proxmox 5.2 on a server with LSI 9341-4i and a LSI HBA. Two Disks for my OS are configured as Raid 1 on the 9341.

On the HD-selection menu during install the installer shows all of the HBA-Disks but none connected to the 9341. (I've checked a Ubuntu install and the controller / raid is recognised)

What I am doing wrong?

Is there a way to inject a dreiver during install. Does anyone has experience with proxmox and 9341?

Thanks in advance
ewuew



[wolfgang]

Hi,

please check if your firmware is updated to the latest available version.
Proxmox VE 5.2 iso works on an LSI 3108 Chip without a problem in UEFI and Bios mode.
Tested on a MegaRaid 6361-4i what is nearly the same card.
If this does not work, you can install PVE on a Debian 9
https://pve.proxmox.com/wiki/Install_Proxmox_VE_on_Debian_Stretch



[MrAsp]

@ewuewu , did you solve this?
I'm to having problem with with a LSI MegaRaid 9341-4i configured as RAID1.
Latest FW on controller. Gives the following


EDIT:
With LSI/AVAGO MegaRAID 9341-4i UEFI doesn't work. Only Legacy boot mode works.

HW-spec:
Supermicro SuperChassis 721TQ-250B
Xeon-D 1541 8-core 2GHz
LSI/AVAGO MegaRAID 9341-4i
2 Samsung 860 EVO as RAID1.

Media:
proxmox-ve_5.4-1.iso



[MrAsp]

@ewuewu , did you solve this?
I'm to having problem with with a LSI MegaRaid 9341-4i configured as RAID1.
Latest FW on controller. Gives the following

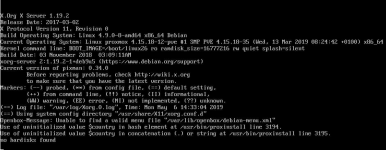

View attachment 10209

EDIT:
With LSI/AVAGO MegaRAID 9341-4i UEFI doesn't work. Only Legacy boot mode works.

HW-spec:
Supermicro SuperChassis 721TQ-250B
Xeon-D 1541 8-core 2GHz
LSI/AVAGO MegaRAID 9341-4i
2 Samsung 860 EVO as RAID1.

Media:
proxmox-ve_5.4-1.iso

sorry for the bump..

For the future, if someone(myself included) stumble upon this problem. ( I'm not able to edit my previous post).

I have a Supermicro X10SDV-TLN4F motherboard.
If I booted the installationmedia on non uefi, the installation found my raid. But not when booting UEFI.
Error message i got when looking closer was
Init cmd return status FAILED for SCSI Failed from megasas_init_fw 6459

So for me the solution was to enter bios, "Advanced -> PCIe/PCI/PnP Configuration", and force the PCI-E slot to only accept EFI.
Then boot on 7.1 iso.
