problem with configuring network devices igb and e1000e on Proxmox 2.2

[seriivolk1]

Hi I have problem with configuring network devices on Proxmox 2.2 . I have 2 cards, both PCI-E. Intel i350 and Intel PRO/1000 PT server adapter. But Proxmox web configurator doesn't see igb or e1000e, only e1000. I installed igb-4.0.17, pve-kernel-2.6.32-16-pve_2.6.32-82_amd64.deb, pve-headers-2.6.32-16-pve, libpve-common-perl_1.0-39_all.deb.
The system see them:

# PCI device 0x10ec:0x8168 (r8169)
SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{address}=="bc:5f:f4:47:e6:9a", ATTR{dev_id}=="0x0", ATTR{type}=="1", KERNEL=="eth*", NAME="eth0"

# PCI device 0x8086:0x1521 (igb)
SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{address}=="a0:36:9f:0e:03:a9", ATTR{dev_id}=="0x0", ATTR{type}=="1", KERNEL=="eth*", NAME="eth2"

# PCI device 0x8086:0x1521 (igb)
SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{address}=="a0:36:9f:0e:03:a8", ATTR{dev_id}=="0x0", ATTR{type}=="1", KERNEL=="eth*", NAME="eth1"

# PCI device 0x8086:0x100e (e1000)
SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{address}=="00:07:e9:0b:ee:0b", ATTR{dev_id}=="0x0", ATTR{type}=="1", KERNEL=="eth*", NAME="eth3"

# PCI device 0x8086:0x107d (e1000e)
SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{address}=="00:1b:21:a8:95:fc", ATTR{dev_id}=="0x0", ATTR{type}=="1", KERNEL=="eth*", NAME="eth4"

mainboard asrock z75 pro3. Realtek and Intel pro/1000 MT (e1000) works normally


pveversion -v
pve-manager: 2.2-26 (pve-manager/2.2/c1614c8c)
running kernel: 2.6.32-16-pve
proxmox-ve-2.6.32: 2.2-80
pve-kernel-2.6.32-10-pve: 2.6.32-63
pve-kernel-2.6.32-11-pve: 2.6.32-66
pve-kernel-2.6.32-16-pve: 2.6.32-80
pve-kernel-2.6.32-13-pve: 2.6.32-72
pve-kernel-2.6.32-12-pve: 2.6.32-68
pve-kernel-2.6.32-14-pve: 2.6.32-74
lvm2: 2.02.95-1pve2
clvm: 2.02.95-1pve2
corosync-pve: 1.4.4-1
openais-pve: 1.1.4-2
libqb: 0.10.1-2
redhat-cluster-pve: 3.1.93-1
resource-agents-pve: 3.9.2-3
fence-agents-pve: 3.1.9-1
pve-cluster: 1.0-28
qemu-server: 2.0-64
pve-firmware: 1.0-21
libpve-common-perl: 1.0-39
libpve-access-control: 1.0-25
libpve-storage-perl: 2.0-34
vncterm: 1.0-3
vzctl: 4.0-1pve2
vzprocps: 2.0.11-2
vzquota: 3.1-1
pve-qemu-kvm: 1.2-7
ksm-control-daemon: 1.1-1



[tom]

igb 4.0.17 is default in proxmox ve 2.2, seems I do not understand your post.



[dietmar]

What is the output of

# cat /proc/net/dev



[seriivolk1]

I know that igb 4.0.17 is default. I reinstalled it because i can't view the cards here



[seriivolk1]

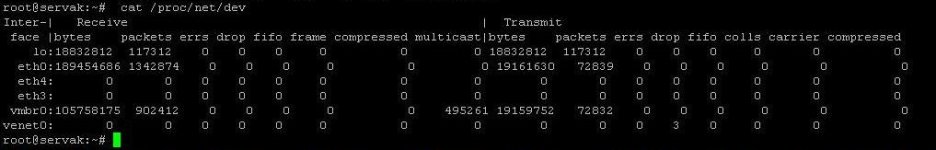

cat /proc/net/dev
Inter-| Receive | Transmit
face |bytes packets errs drop fifo frame compressed multicast|bytes packe ts errs drop fifo colls carrier compressed
lo:16300406 101542 0 0 0 0 0 0 16300406 1015 42 0 0 0 0 0 0
eth0:164725560 1162773 0 0 0 0 0 0 16568567 63 051 0 0 0 0 0 0
eth4: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
eth3: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
vmbr0:91878031 779385 0 0 0 0 0 430017 16566689 630 44 0 0 0 0 0 0
venet0: 0 0 0 0 0 0 0 0 0 0 0 3 0 0 0 0


hwinfo --short
cpu:
Intel(R) Core(TM) i5-3470 CPU @ 3.20GHz, 3200 MHz
Intel(R) Core(TM) i5-3470 CPU @ 3.20GHz, 3200 MHz
Intel(R) Core(TM) i5-3470 CPU @ 3.20GHz, 3200 MHz
Intel(R) Core(TM) i5-3470 CPU @ 3.20GHz, 3200 MHz
mouse:
/dev/input/mice Macintosh mouse button emulation
graphics card:
Intel VGA compatible controller
sound:
Intel Audio device
storage:
Intel SATA controller
network:
eth4 Intel PRO/1000 PT Server Adapter
eth3 Intel PRO/1000 MT Desktop Adapter
eth0 Realtek RTL8111/8168B PCI Express Gigabit Ethernet controller
network interface:
lo Loopback network interface
eth0 Ethernet network interface
eth4 Ethernet network interface
eth3 Ethernet network interface
vmbr0 Ethernet network interface
venet0 Network Interface
disk:
/dev/sda Generic SD/MMC
/dev/sdb Generic Compact Flash
/dev/sdc Generic SM/xD-Picture
/dev/sdd Generic MS/MS-Pro
/dev/sde ST2000DM001-9YN1
partition:
/dev/sde1 Partition
/dev/sde2 Partition
cdrom:
/dev/sr0 PIONEER DVD-RW DVR-220L
usb controller:
Intel USB Controller
Intel USB Controller
Intel USB Controller
bios:
BIOS
bridge:
Intel Host bridge
Intel PCI bridge
Intel 82801 PCI Bridge
Intel PCI bridge
Intel ISA bridge
PCI bridge
hub:
Linux 2.6.32-16-pve ehci_hcd EHCI Host Controller
Linux 2.6.32-16-pve ehci_hcd EHCI Host Controller
Hub
Hub
Linux 2.6.32-16-pve xhci_hcd xHCI Host Controller
Linux 2.6.32-16-pve xhci_hcd xHCI Host Controller
memory:
Main Memory
unknown:
FPU
DMA controller
PIC
Timer
Keyboard controller
Intel Communication controller
Intel SMBus
/dev/ttyS0 16550A
Alcor Micro Mass Storage Device



[dietmar]

Virtualized network drivers and network cards on the host are something completely different!



[tom]

this screenshot shows the selection of emulated NIC for KVM guests - this is totally unrelated to the physical nics.



[seriivolk1]



[seriivolk1]

this screenshot shows the selection of emulated NIC for KVM guests - this is totally unrelated to the physical nics.

I'm newbie in proxmox and i can't give Intel PRO/1000 PT Server Adapter to KVM guest. With realtek and intel PRO/1000 MT everything is well.



[tom]

you need to understand the difference between physical nics and virtual nics.

so we talk here about physical nics on the proxmox ve host or about virtual disks for KVM?



[seriivolk1]

Thanks a lot. I resolved my problem.
