Ceph BlueStore - Not always faster than FileStore

Jun 8, 2016
341
65
48
46
Johannesburg, South Africa
Ceph Luminous now defaults to creating BlueStore OSDs, instead of FileStore. Whilst this avoids the double write penalty and promises a 100% increase in speed, it will probably frustrate a lot of people when their resulting throughput is multitudes slower than it was previously.

We trawled countless discussion forums before investing in tin to setup our first Ceph cluster approximately 1.5 years ago. We didn't have huge storage capacity requirements but wanted a highly available and linearly scalable architecture. We acquired 3 x 1U Intel Wildcat Pass server systems with 4 x 64 GB LR-DIMMs (expandable to 1.5TB), Dual Intel Xeon 2640v4 CPUs (40 Hyper Threaded cores per 1U), 2 x 10GbE UTP and 2 x 10GbE SFP+ interfaces. We like Intel original equipment as we are familiar with its quirks, are happy with their support and long firmware update history and particularly as the chassis ships with empty caddies (yuck to HP & Dell). The drives are natively accessible via AHCI and we've purchased the NVMe conversion kits to eventually be able to upgrade to faster storage. Each system still has empty PCIe slots for future use and there is out of band management to avoid unnecessary trips to the DC.

The 1U chassis only provides 8 x 2.5 inch bays, so we installed 2 x 480 GB Intel DC S3610 SSDs and 4 x 2TB Seagate 4Kn discs. The SSDs are partitioned to provide a 8 GB software RAID-1 for Proxmox, 256 GB software RAID-1 for swap and 3 x 60GB partitions to serve as SSD journals. Each FileStore OSD subsequently had its journal residing in a partition on the SSDs and performance was... surprisingly good.

The PVE 5.1 and Ceph Luminous upgrade process was painless, so we were excited to migrate our OSDs to BlueStore. My understanding of BlueStore was that it doesn't require a journal, due to writes to the hdd OSDs being atomic. Information previously stored in extended attributes is now stored in RocksDB and that relatively tiny database has its own WAL (write ahead log). The WAL is automatically located together with the DB, but can be split out, should the system additionally have NVMe or 3D X-Point memory.

After validating that Ceph was healthy (3/2 replica pools) we destroyed the FileStore OSDs on a given host and then re-created them by placing RocksDB in the SSD journal partitions. After waiting for replication to complete, we moved on to the next host. Our cluster had in the interim grown to 6 nodes and we only initiated this work after 6pm, so this process took approximately a week to complete.

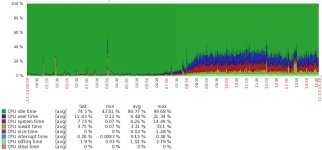

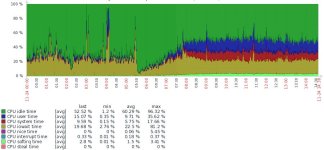

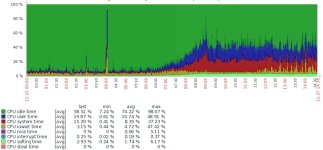

The following graph shows a breakdown of CPU activity of a guest VM in our cluster. Upgrading PVE and Ceph started early evening on the 18th of November and the spike there is objects being moved around due to tuneables being changed to optimal.:

This virtual machine runs Check Point vSEC and is essentially part of a firewall-as-a-service offering. The problem here is that Check Point are still using a relatively ancient kernel, specifically 2.6.18 from RHEL5. Whilst Ceph RBD has the ability to run in writeback mode, to buffer random writes, it runs in writethrough mode until the VM sends its first flush command. The flush function is however only available in 2.6.32 or later, so RBD permanently runs in writethrough mode.

The impact wasn't noticeable previously, as writes were returned as having completed when they were absorbed by the SSD journals. BlueStore OSDs don't journal writes, they exclusively use RocksDB for object metadata. This means that any writes need to land on the spinning discs for them to be acknowledged.

It unfortunately takes time for people to speak up, so when we got our first reports of degraded performance on Wednesday afternoon we were well committed to the conversion process.

I spent virtually all of Thursday identifying the problem and trying to find of a solution. bcache's ability to use the random access advantages of a SSD, by absorbing read and write requests, prior to sequentially draining its cache to slower bulk storage looked promising. bcache was merged in to the 3.9 kernel and Debian stretch (PVE 5) includes bcache-tools as a pre-built package. Kernel 4.13 (PVE 5.1) also now includes the ability to partition bcache block devices, so we had a solution.

After destroying OSDs on a host again, creating bcache block devices using the HDDs, repartitioning our SSDs and subsequently attaching partitions on the SSDs as caches to the bcache block devices we initially gained... nothing... It didn't take too long for us to realise that bcache comes from a time when SSDs were fast at random read/write but slow on sequential data transfer. bcache subsequently stops caching writes when writing 4MB or more sequential data, the default Ceph object size. After disabling that feature we had good performance and completed the process on the rest of the nodes over the weekend.

Notes:
  • Although these benchmarks were run on a Sunday morning there was still workload being serviced by aproximately 134 virtuals, so each test was run thrice to overcome bursts affecting benchmarks.
  • Nice thing is that trim/discard is passed through the VM to Ceph, which could reclaim unused storage if contiguous blocks of discarded data cover underlying Ceph objects (4 MB).
  • Cluster comprises of 5 Hyper-converged hosts containing 2 x Intel DC S3610 480 GB SATA SSDs and 4 x Seagate ST2000NX0243 discs (2TB 4Kn SATA).
  • Tripple replication, so cluster provides 12 TB of storage.
  • SATA hdd OSDs have their BlueStore RocksDB, RocksDB WAL (write ahead log) and bcache partitions on a SSD (2:1 ratio).
  • SATA ssd failure will take down associated hdd OSDs (sda = sdc & sde; sdb = sdd & sdf)

Ceph Luminous BlueStore hdd OSDs with RocksDB, its WAL and bcache on SSD (2:1 ratio)

Layout:
Code:
  sda1  sdb1          : 1 MB FakeMBR
  sda2  sdb2          : 8 GB mdraid1 OS
  sda3  sdb3          : 30 GB RocksDB and WAL for sdc and sdd
  sda4  sdb4          : 30 GB RocksDB and WAL for sde and sdf
  sda5  sdb5          : 60GB bcache for sdc and sdd
  sda6  sdb6          : 60GB bcache for sde and sdf
  sda7  sdb7          : 256GB mdraid1 swap with discard
  sdc  sdd  sde  sdf  : BlueStore hdd OSDs

Physical chassis view:
Code:
  sdb  sdd  sdf   x
  sda  sdc  sde   x
    x = reserved for dedicated NVMe or SSD BlueStore OSDs

Resulting disc, partition and bcache block device layout:
Code:
[admin@kvm5e ~]# lsblk
NAME            MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
sda               8:32   0 447.1G  0 disk
├─sda1            8:33   0     1M  0 part
├─sda2            8:34   0   7.8G  0 part
│ └─md0           9:0    0   7.8G  0 raid1 /
├─sda3            8:35   0    30G  0 part
├─sda4            8:36   0    30G  0 part
├─sda5            8:37   0    60G  0 part
│ └─bcache0     251:32   0   1.8T  0 disk
│   ├─bcache0p1 251:33   0   100M  0 part  /var/lib/ceph/osd/ceph-16
│   └─bcache0p2 251:34   0   1.8T  0 part
├─sda6            8:38   0    60G  0 part
│ └─bcache2     251:0    0   1.8T  0 disk
│   ├─bcache2p1 251:1    0   100M  0 part  /var/lib/ceph/osd/ceph-18
│   └─bcache2p2 251:2    0   1.8T  0 part
└─sda7            8:39   0   256G  0 part
  └─md1           9:1    0 255.9G  0 raid1 [SWAP]
sdb               8:48   0 447.1G  0 disk
├─sdb1            8:49   0     1M  0 part
├─sdb2            8:50   0   7.8G  0 part
│ └─md0           9:0    0   7.8G  0 raid1 /
├─sdb3            8:51   0    30G  0 part
├─sdb4            8:52   0    30G  0 part
├─sdb5            8:53   0    60G  0 part
│ └─bcache1     251:48   0   1.8T  0 disk
│   ├─bcache1p1 251:49   0   100M  0 part  /var/lib/ceph/osd/ceph-17
│   └─bcache1p2 251:50   0   1.8T  0 part
├─sdb6            8:54   0    60G  0 part
│ └─bcache3     251:16   0   1.8T  0 disk
│   ├─bcache3p1 251:17   0   100M  0 part  /var/lib/ceph/osd/ceph-19
│   └─bcache3p2 251:18   0   1.8T  0 part
└─sdb7            8:55   0   256G  0 part
  └─md1           9:1    0 255.9G  0 raid1 [SWAP]
sdc               8:64   0   1.8T  0 disk
└─bcache0       251:32   0   1.8T  0 disk
  ├─bcache0p1   251:33   0   100M  0 part  /var/lib/ceph/osd/ceph-16
  └─bcache0p2   251:34   0   1.8T  0 part
sdd               8:80   0   1.8T  0 disk
└─bcache1       251:48   0   1.8T  0 disk
  ├─bcache1p1   251:49   0   100M  0 part  /var/lib/ceph/osd/ceph-17
  └─bcache1p2   251:50   0   1.8T  0 part
sde               8:0    0   1.8T  0 disk
└─bcache2       251:0    0   1.8T  0 disk
  ├─bcache2p1   251:1    0   100M  0 part  /var/lib/ceph/osd/ceph-18
  └─bcache2p2   251:2    0   1.8T  0 part
sdf               8:16   0   1.8T  0 disk
└─bcache3       251:16   0   1.8T  0 disk
  ├─bcache3p1   251:17   0   100M  0 part  /var/lib/ceph/osd/ceph-19
  └─bcache3p2   251:18   0   1.8T  0 part

Construction:
Code:
Proxmox 5.1
apt-get install bcache-tools;
modprobe bcache;
[ ! -d /sys/fs/bcache ] && echo "Warning, kernel module not loaded!";

for f in c d e f; do
  wipefs -a /dev/sd$f;
  make-bcache -B /dev/sd$f;
done
sleep 5;
#make-bcache -C -b2MB -w4k --discard --wipe-bcache /dev/sda5;    # bcache 0 (sdc)
  # sector size 4k
  # bucket = SSD's erase block size (2MB should fit even multiples for MLC and SLC, not TLC though)
  # Possible bcache bug, does not attach when using custom bucket and sector size
make-bcache -C /dev/sda5 --wipe-bcache;    # bcache 0 (sdc)
make-bcache -C /dev/sdb5 --wipe-bcache;    # bcache 1 (sdd)
make-bcache -C /dev/sda6 --wipe-bcache;    # bcache 2 (sde)
make-bcache -C /dev/sdb6 --wipe-bcache;    # bcache 3 (sdf)
bcache-super-show /dev/sda5 | grep cset | awk '{print $2}' > /sys/block/bcache0/bcache/attach;
bcache-super-show /dev/sdb5 | grep cset | awk '{print $2}' > /sys/block/bcache1/bcache/attach;
bcache-super-show /dev/sda6 | grep cset | awk '{print $2}' > /sys/block/bcache2/bcache/attach;
bcache-super-show /dev/sdb6 | grep cset | awk '{print $2}' > /sys/block/bcache3/bcache/attach;
for f in /sys/block/bcache?/bcache; do
  echo 0 > $f/sequential_cutoff;
  echo writeback > $f/cache_mode;
done
cat >> /etc/rc.local <<EOF
# Unset sequential store cut off:
for f in /sys/block/bcache?/bcache; do
  echo 0 > $f/sequential_cutoff;
done
EOF
vi /etc/rc.local;
  # Ensure 'exit' comes after additions

ID=16
DEVICE=/dev/bcache0 #sdc
JOURNAL=`blkid /dev/sda3 | perl -pe 's/.*PARTUUID=.(.*?).$/\/dev\/disk\/by-partuuid\/\1/'`;
  echo $ID; ls -l $DEVICE $JOURNAL;
    ceph-disk prepare --bluestore $DEVICE --block.db $JOURNAL --osd-id $ID; sleep 20;
    ceph osd metadata $ID;
ID=17
DEVICE=/dev/bcache1 #sdd
JOURNAL=`blkid /dev/sdb3 | perl -pe 's/.*PARTUUID=.(.*?).$/\/dev\/disk\/by-partuuid\/\1/'`;
  echo $ID; ls -l $DEVICE $JOURNAL;
    ceph-disk prepare --bluestore $DEVICE --block.db $JOURNAL --osd-id $ID; sleep 20;
    ceph osd metadata $ID;
ID=18
DEVICE=/dev/bcache2 #sde
JOURNAL=`blkid /dev/sda4 | perl -pe 's/.*PARTUUID=.(.*?).$/\/dev\/disk\/by-partuuid\/\1/'`;
  echo $ID; ls -l $DEVICE $JOURNAL;
    ceph-disk prepare --bluestore $DEVICE --block.db $JOURNAL --osd-id $ID; sleep 20;
    ceph osd metadata $ID;
ID=19
DEVICE=/dev/bcache3 #sdf
JOURNAL=`blkid /dev/sdb4 | perl -pe 's/.*PARTUUID=.(.*?).$/\/dev\/disk\/by-partuuid\/\1/'`;
  echo $ID; ls -l $DEVICE $JOURNAL;
    ceph-disk prepare --bluestore $DEVICE --block.db $JOURNAL --osd-id $ID; sleep 20;
    ceph osd metadata $ID;


Ceph RBD benchmarks:
Code:
rados bench -p rbd 120 write --no-cleanup # MBps throughput: 376/480/220  latency: 0.2s/0.9s/0.0s (avg/max/min)
rados bench -p rbd 120 rand               # MBps throughput: 1167         latency: 0.1s/1.1s/0.0s (avg/max/min)
rados bench -p rbd 120 seq                # MBps throughput: 1086         latency: 0.1s/1.4s/0.0s (avg/max/min)
rados bench -p rbd 120 write              # MBps throughput: 395/516/184  latency: 0.2s/1.2s/0.0s (avg/max/min)


Technet's DiskSpd benchmark utility, run within VM:
https://gallery.technet.microsoft.com/DiskSpd-a-robust-storage-6cd2f223
Code:
DiskSpd v2.0.17 command:
  diskspd -b256K -d60 -h -L -o2 -t4 -r -w30 -c250M c:\io.dat

VM specs:
  2 x Haswell-noTSX NUMA cores (host runs 2 x Intel E5-2640 v4 @ 2.40GHz with HyperThreading enabled)
  4 GB RAM (LoadReduced-DIMMs)


Ceph Luminous BlueStore hdd OSDs with RocksDB, its WAL and bcache on SSD (2:1 ratio):

Windows 2012r2 - VirtIO SCSI (vioscsi) with KRBD:
  1 read    : 453.90 MBps   1816 IOPs    write    : 195.40 MBps   770 IOPs
  2 read    : 400.85 MBps   1603 IOPs    write    : 173.17 MBps   693 IOPs
  3 read    : 427.26 MBps   1709 IOPs    write    : 184.16 MBps   737 IOPs



Ceph Jewel FileStore hdd OSDs with SSD journals (2:1 ratio):

Windows 2012r2 - After deployment:
  1 read    : 305.15 MBps  1220 IOPs    write    : 131.15 MBps   524 IOPs
  2 read    : 274.90 MBps  1099 IOPs    write    : 118.10 MBps   472 IOPs
  3 read    : 290.14 MBps  1161 IOPs    write    : 124.87 MBps   499 IOPs
Disabled AntiVirus:
  4 read    : 300.95 MBps  1204 IOPs    write    : 129.48 MBps   518 IOPs
  5 read    : 284.69 MBps  1139 IOPs    write    : 122.40 MBps   490 IOPs
  6 read    : 307.37 MBps  1230 IOPs    write    : 132.03 MBps   528 IOPs

Windows 2012r2 - Updated drivers (Viostor):
  1 read    : 305.15 MBps  1222 IOPs    write    : 131.55 MBps   526 IOPs
  2 read    : 297.86 MBps  1191 IOPs    write    : 128.04 MBps   512 IOPs
  3 read    : 296.38 MBps  1186 IOPs    write    : 127.40 MBps   510 IOPs

Windows 2012r2 - VirtIO SCSI (vioscsi):
  1 read    : 313.74 MBps  1255 IOPs    write    : 135.16 MBps   541 IOPs
  2 read    : 314.29 MBps  1257 IOPs    write    : 135.20 MBps   541 IOPs
  3 read    : 296.30 MBps  1185 IOPs    write    : 127.60 MBps   510 IOPs

Windows 2012r2 - VirtIO SCSI (vioscsi) with KRBD:
  1 read    : 446.36 MBps  1785 IOPs    write    : 192.46 MBps   770 IOPs
  2 read    : 460.62 MBps  1842 IOPs    write    : 198.19 MBps   793 IOPs
  3 read    : 405.94 MBps  1624 IOPs    write    : 175.20 MBps   701 IOPs

Windows 2012r2 - Updated drivers (Viostor) with KRBD:
  1 read    : 448.84 MBps  1795 IOPs    write    : 193.12 MBps   772 IOPs
  2 read    : 428.78 MBps  1715 IOPs    write    : 185.19 MBps   741 IOPs
  3 read    : 482.75 MBps  1931 IOPs    write    : 207.37 MBps   829 IOPs

Windows 2012r2 - Updated drivers (Viostor) with KRBD - writeback caching:
  1 read    : 205.00 MBps  820 IOPs        write    :  88.38 MBps   354 IOPs
  2 read    : 206.60 MBps  826 IOPs        write    :  89.12 MBps   356 IOPs
  3 read    : 201.35 MBps  805 IOPs        write    :  86.87 MBps   347 IOPs

Windows 2012r2 - Updated drivers (Viostor) with KRBD - writeback (unsafe) caching:
  1 read    : 4611.13 MBps  18445 IOPs    write    : 1973.78 MBps   7895 IOPs
  2 read    : 5098.30 MBps  20393 IOPs    write    : 2181.72 MBps   8727 IOPs
  3 read    : 5084.54 MBps  20338 IOPs    write    : 2175.36 MBps   8701 IOPs

Last edited:
Jun 8, 2016
341
65
48
46
Johannesburg, South Africa
I need to say that BlueStore should yield a big performance improvement for single device SSD, NVMe or 3D X-Point OSDs, as they would be writing half the amount of data and don't have the random access speed problems of spinning rust.

ie: A pure BlueStore SSD OSD (everything on one block device) would be twice as fast as a pure FileStore SSD OSD.

Last edited:
  • Like
Reactions: chrone
Jun 8, 2016
341
65
48
46
Johannesburg, South Africa
Something I didn't explain is that 11 systems with old kernels, in a cluster of 150+, had a huge impact on overall performance of Ceph. On weekends or evenings the cluster processes approximately 1600 IOPS, totally only 8MB/s. Reviewing individual VMs shows only a few KB being committed, although constant. The impact is that these constantly interrupt sequential writes on the hdd OSDs and subsequently cause the hosts and virtuals to spend a lot of their allocated CPU time waiting on storage I/O requests.

Well behaved VMs running with RBD in writeback mode will periodically send flush instructions so these will also pause whilst they wait for writes to be comitted. There is an overall benefit to buffering these random writes to SSDs, which subsequently drain to hdd OSDs sequentially.

All in all we'll most probably convert hdd OSDs back to FileStore with SSD journalling, as the current setup is really complicated. The nice thing with bcache is that one can detach and reattach caching block devices, so we'll probably leave the HDDs 'formatted' as bcache block devices, so that we can add NVMe or 3D X-Point (eg Intel Optane) caching later.

Last edited:
  • Like
Reactions: AlexLup
Jun 8, 2016
341
65
48
46
Johannesburg, South Africa
Herewith some of my speed notes and a nice reference:
https://dshcherb.github.io/2017/08/12/ceph-bluestore-and-bcache.html

Some additional notes:
  • bcache in kernel 4.13 (PVE 5.1) requires a separate cache block device for each underlying block device. This appears to have been different in the past as several guides reference being able to use a single caching partition for multiple bcache block devices.
  • There is a lot of reference material on the internet, with regards to optimising discards on SSDs to match the physical layout of the erase blocks. I assume modern DC SSDs now track this internally so the make-bcache tool no longer documents the switches for this. Using switches I collected on the internet resulted in the devices not automatically registering and not attaching when we registered them manually. We subsequently prepared the caching block devices with the tool, letting it either use defaults or calculating values automatically.

Show block device components associated with each bcache block device:
Code:
for f in /sys/block/bcache*/slaves; do echo -e "\n$f:"; dir $f; done

Show bcache UUIDs - The actual block devices:
Code:
ls /sys/block/bcache?/bcache -l;

Show bcache UUIDs - The caching devices:
Code:
ls /sys/fs/bcache/*/cache0 -l;

Show key values:
Code:
for f in /sys/block/bcache?/bcache; do
  echo $f:
  for g in state cache_mode writeback_percent sequential_cutoff dirty_data; do
    printf "\t%18s: %s\n" "$g" "`cat $f/$g`";
  done
done

How much data needs to be flushed from the cache:
Code:
watch cat /sys/block/bcache?/bcache/dirty_data;

Manually register (not necessary on PVE 5.1):
Code:
echo /dev/disk/by-uuid/03d47d2c-92cb-46f2-b581-f7e6079d4604 > /sys/fs/bcache/register;
ls /sys/fs/bcache/  #get uuid
echo 766e3ca5-f2db-44c9-97cc-13a97b32d348 > /sys/block/bcache0/bcache/attach

Show bcache 'slave' device information:
Code:
bcache-super-show -f /dev/sdd5;

Monitor cache statistics:
Code:
tail /sys/block/bcache?/bcache/stats_five_minute/*;

Detach cache device:
Code:
for f in /sys/block/bcache*/slaves; do echo -e "\n$f:"; dir $f; done
    bcache-super-show /dev/sdc5 | grep cset | awk '{print $2}' > /sys/block/bcache0/bcache/detach;
    bcache-super-show /dev/sdc6 | grep cset | awk '{print $2}' > /sys/block/bcache2/bcache/detach;
    bcache-super-show /dev/sdd5 | grep cset | awk '{print $2}' > /sys/block/bcache1/bcache/detach;
    bcache-super-show /dev/sdd6 | grep cset | awk '{print $2}' > /sys/block/bcache3/bcache/detach;
    watch cat /sys/block/bcache?/bcache/dirty_data;
      # wait until 0
    cat /sys/block/bcache?/bcache/state;
      # confirm 'no cache'
    for f in /sys/block/bcache*/slaves; do echo -e "\n$f:"; dir $f; done
      # confirm caching devices have detached
    for f in sdc5 sdc6 sdd5 sdd6; do echo 1 > /sys/fs/bcache/`bcache-super-show /dev/$f | grep cset | awk '{print $2}'`/unregister;
done

Disassemble bcache devices and (optionally) wipe bcache signatures:
Code:
for f in /sys/block/bcache?/bcache/stop; do echo 1 > $f; done;
for f in /sys/fs/bcache/*-*-*/unregister; do echo 1 > $f; done;
sleep 5;
rmmod bcache;

#for f in sda5 sda6 sdb5 sdb6 sdc sdd sde sdf; do
#  wipefs -a /dev/$f;
#done

Last edited:
Jun 8, 2016
341
65
48
46
Johannesburg, South Africa
The following are speed notes to:
  • Fail OSDs 8, 9, 10 and 11 and ensure no placement groups are 'inactive', 'unfound' or 'unknown'.
  • Destroy OSDs.
  • Disassemble bcache block devices and destroy.
  • Repartition SSDs (3 x 60GB partitions with 512 byte size sector count (eg: (142606335-16777216+1)*512/1024/1024/1024 = 60GB).
  • Discard all data within SSD journal partitions.
  • Recreate OSDs using FileStore, with journal on SSD partition (using partition UUIDs, Proxmox appears to default to device name).
Code:
    df -h | grep ceph | sort;
    #for f in /var/lib/ceph/osd/ceph-?/journal; do echo -ne "$f:\t"; a=`ls -l $f`; dir ${a#* -> }; done;

OSDs='8 9 10 11';
    for ID in $OSDs; do
      ceph osd out $ID;
    done
watch ceph -s;
    for ID in $OSDs; do
      systemctl stop ceph-osd@$ID.service;
      umount /var/lib/ceph/osd/ceph-$ID;
      ceph osd destroy $ID --yes-i-really-mean-it;
    done
    ceph-disk zap /dev/bcache0;
    ceph-disk zap /dev/bcache1;
    ceph-disk zap /dev/bcache2;
    ceph-disk zap /dev/bcache3;

    for f in /sys/block/bcache?/bcache/stop; do echo 1 > $f; done;
    for f in /sys/fs/bcache/*-*-*/unregister; do echo 1 > $f; done;
    sleep 5;
    rmmod bcache;
  for f in sda5 sda6 sdb5 sdb6 sdc sdd sde sdf; do
      wipefs -a /dev/$f;
    done

  for f in sda sdb; do
      parted --script /dev/$f rm 3;
      parted --script /dev/$f rm 4;
      parted --script /dev/$f rm 5;
      parted --script /dev/$f rm 6;
      parted --script /dev/$f mkpart non-fs 16777216s 142606335s;
      parted --script /dev/$f mkpart non-fs 142606336s 268435455s;
      parted --script /dev/$f mkpart non-fs 268435456s 394264575s;
      sleep 5;
      for p in 3 4 5; do
        sgdisk -t $p:45b0969e-9b03-4f30-b4c6-b4b80ceff106 /dev/$f;
        chown ceph: /dev/$f$p;
      done
    done
  for f in sda3 sda4 sda5 sdb3 sdb4 sdb5; do
      blkdiscard /dev/$f;
    done

ID=8
DEVICE=/dev/sdc
JOURNAL=`blkid /dev/sda3 | perl -pe 's/.*PARTUUID=.(.*?).$/\/dev\/disk\/by-partuuid\/\1/'`;
  echo $ID; ls -l $DEVICE $JOURNAL;
    ceph-disk zap $DEVICE;
    ceph-disk prepare --osd-id $ID --filestore --data-dev --journal-dev $DEVICE $JOURNAL;
    ceph osd metadata $ID;
ID=9
DEVICE=/dev/sdd
JOURNAL=`blkid /dev/sdb3 | perl -pe 's/.*PARTUUID=.(.*?).$/\/dev\/disk\/by-partuuid\/\1/'`;
  echo $ID; ls -l $DEVICE $JOURNAL;
    ceph-disk zap $DEVICE;
    ceph-disk prepare --osd-id $ID --filestore --data-dev --journal-dev $DEVICE $JOURNAL;
    ceph osd metadata $ID;
ID=10
DEVICE=/dev/sde
JOURNAL=`blkid /dev/sda4 | perl -pe 's/.*PARTUUID=.(.*?).$/\/dev\/disk\/by-partuuid\/\1/'`;
  echo $ID; ls -l $DEVICE $JOURNAL;
    ceph-disk zap $DEVICE;
    ceph-disk prepare --osd-id $ID --filestore --data-dev --journal-dev $DEVICE $JOURNAL;
    ceph osd metadata $ID;
ID=11
DEVICE=/dev/sdf
JOURNAL=`blkid /dev/sdb4 | perl -pe 's/.*PARTUUID=.(.*?).$/\/dev\/disk\/by-partuuid\/\1/'`;
  echo $ID; ls -l $DEVICE $JOURNAL;
    ceph-disk zap $DEVICE;
    ceph-disk prepare --osd-id $ID --filestore --data-dev --journal-dev $DEVICE $JOURNAL;
    ceph osd metadata $ID;


vi /etc/rc.local;
  # Remove bcache settings

Slow down recovery:
  ceph tell osd.* injectargs '--osd_max_backfills 1';
  ceph tell osd.* injectargs '--osd_recovery_max_active 1';
  ceph tell osd.* injectargs '--osd_recovery_max_single_start 1';

Restore standard (Ceph Luminous):
  ceph tell osd.* injectargs '--osd_max_backfills 1';
  ceph tell osd.* injectargs '--osd_recovery_max_active 3';
  ceph tell osd.* injectargs '--osd_recovery_max_single_start 1';

Accelerate recovery:
  ceph tell osd.* injectargs '--osd_max_backfills 4';
  ceph tell osd.* injectargs '--osd_recovery_max_active 4';
  ceph tell osd.* injectargs '--osd_recovery_max_single_start 4';

Last edited:

Drkrieger

New Member
Jul 27, 2018
13
7
3
38
@David Herselman , just curious if you see a major performance increase using bcache versus not. I'm in the process right now of building a PoC for our company, just a small cluster of 3 nodes but in production will be 5. I'm seeing 'slow requests blocked' errors every now and then when running HDD benchmarks in a VM, and I was hoping that using a bcache would solve the issue. Our systems configs are very simple/low end: i5-8400 (locked at 4GHz all 6 cores, no C-States/Speedstep), 16GB DDR4 2666, Z370 motherboard, 250GB WD Black NVMe (OS Drive), Samsung PM953 Enterprise M.2 NVMe journal drive (960GB), and 4x 4TB Seagate 7200rpm 3.5" drives. The setup is using Filestore with 100GB journals per OSD. We're running Debian 9.5, PVE 5.2, Ceph Luminous. The Ceph cluster is just used for Ceph, not VM's (using a separate box, all nodes connected via 10Gb fiber on an HP 5604zl switch).

The test VM (single at the moment) seems very responsive until I put a heavy HDD load on it (example, CrystalDiskMark). During the write tests, it seems to choke on the 4KiB/Q8T8 and the rest of the write tests.

I'd like to experiment with using a bcache, but I can't seem to find any instructions on how to set one up to use with Proxmox/Ceph. I'm trying to understand what you've got for coding on the posts above, but what is the correct steps to create an OSD with an existing bcache?


AlexLup

Member
Mar 19, 2018
215
12
23
40
Massive post! Should be sent to the ceph users mailingslist. Also, I really am aching to enable bcache to see those write improvements!

PS. Mind telling us how you disabled the 4mb feature? DS.

It didn't take too long for us to realise that bcache comes from a time when SSDs were fast at random read/write but slow on sequential data transfer. bcache subsequently stops caching writes when writing 4MB or more sequential data, the default Ceph object size. After disabling that feature we had good performance and completed the process on the rest of the nodes over the weekend.


Drkrieger

New Member
Jul 27, 2018
13
7
3
38
"PS. Mind telling us how you disabled the 4mb feature? DS."

This step is done after setting up the bcache and attaching the cache device, run this command:

echo 0 > /sys/block/bcache<number of bcache device>/bcache/sequential_cuttoff

If you have several bcache devices, you can do them all at the same time like this:
for f in /sys/block/bcache?/bcache; do echo 0 > $f/sequential_cuttoff; done

Basically, you tell the bcache to use a 'zero' size for caching blocks, in other words, anything.
I did get the bcache running, but I still need to experiment with Bluestore without a WAL versus Filestore with journal. The bcache significantly improved write speeds (3-4x), but I lost ~5% read speed (sequential and random). Performance is still quite respectable with 8 VM's hammering on Ceph using IOMeter.

  • Like
Reactions: AlexLup

About

The Proxmox community has been around for many years and offers help and support for Proxmox VE, Proxmox Backup Server, and Proxmox Mail Gateway.
We think our community is one of the best thanks to people like you!

Get your subscription!

The Proxmox team works very hard to make sure you are running the best software and getting stable updates and security enhancements, as well as quick enterprise support. Tens of thousands of happy customers have a Proxmox subscription. Get your own in 60 seconds.

Buy now!
