Adding harddisk - to Directory Storage

S

sohaib

Well-Known Member
May 14, 2011
124
0
56
hello, I have a secondary hard drive which proxmox detect during install, I just wanted to add that hard disk to my local storage directory so I can install VM in there, I just run fdisk -l and it display the following.

Disk /dev/sdc: 146.8 GB, 146815733760 bytes
255 heads, 63 sectors/track, 17849 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x49e2fd2f

Device Boot Start End Blocks Id System
/dev/sdc1 1 17849 143372061 83 Linux


I would like to know how I can format that and add to my storage so I can install VM in to that hard drive as that drive has 15K RPM.

Please help.

Thanks.

use this guide if you have just one server (not a cluster) and want to store HDD images for KVM guests:
http://pve.proxmox.com/wiki/Storage_Model#LVM_Groups_with_Local_Backing
it's pretty simple, just 2 console commands and a few clicks in the web interface
Something like:
pvcreate /dev/sdc1
vgcreate localstor /dev/sdc1

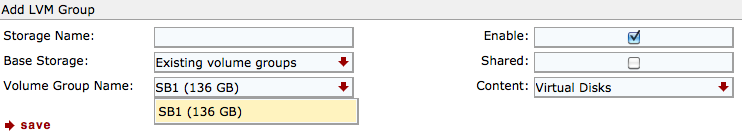

ghen in the web ui go to storage - click 'add LVM Group', put in a name, select localstor from the list and press 'save'.

The problem is when I click on LVM Group I get an error message

Code:
 [B]Internal Server Error[/B]

 The server encountered an internal error or misconfiguration and was unable to complete your request. Please contact the server administrator, root and inform them of the  time the error occurred, and anything you might have done that may have  caused the error.
    [4195]ERR:  24:  Error in Perl code: command '/sbin/vgs --separator :  --noheadings --units k --unbuffered --nosuffix --options  vg_name,vg_size,vg_free' failed with exit code 5

 Apache Embperl 2.2.0 [Tue May 17 08:45:11 2011]

I run that command and I get an error


pvcreate /dev/sdc
Device /dev/sdc not found (or ignored by filtering).

strange. that's some bug, the command runs fine on my PVE hosts:
proxmox2:~# /sbin/vgs --separator : --noheadings --units k --unbuffered --nosuffix --options vg_name,vg_size,vg_free
lvmstor:488382464.00:454828032.00
pve:155762688.00:4190208.00
Click to expand...

I run this command first

mkfs.ext3 /dev/sdc & then pvcreate /dev/sdc

Physical volume "/dev/sdc" successfully created

But when I visited my GUI for LVM Group I got a error Internal Server error message its a fresh install of PROXMOX, I dont know why this problem can any one from proxmox help me here.

sohaib said:
I run this command first

mkfs.ext3 /dev/sdc & then pvcreate /dev/sdc

Physical volume "/dev/sdc" successfully created

But when I visited my GUI for LVM Group I got a error Internal Server error message its a fresh install of PROXMOX, I dont know why this problem can any one from proxmox help me here.
Click to expand...

if you use a block device like /dev/sdc you do NOT need to format it. second, if you want to use a device like /dev/sdc you should create a partition first (e.g. with fdisk /dev/sdc) and then use this partition as physical volume (e.g. /dev/sdc1)

Hello

I have created a partition now its showing as

Device Boot Start End Blocks Id System
/dev/sdc1 1 17849 143372061 83 Linux


BUt again when I CLICK ON LVM Group I get INTERNAL SERVER ERROR.

Internal Server Error

The server encountered an internal error or misconfiguration and was unable to complete your request. Please contact the server administrator, root and inform them of the time the error occurred, and anything you might have done that may have caused the error.
[4195]ERR: 24: Error in Perl code: command '/sbin/vgs --separator : --noheadings --units k --unbuffered --nosuffix --options vg_name,vg_size,vg_free' failed with exit code 5

Apache Embperl 2.2.0 [Tue May 17 11:57:12 2011]

sohaib said:
Internal Server Error

The server encountered an internal error or misconfiguration and was unable to complete your request. Please contact the server administrator, root and inform them of the time the error occurred, and anything you might have done that may have caused the error.
[4195]ERR: 24: Error in Perl code: command '/sbin/vgs --separator : --noheadings --units k --unbuffered --nosuffix --options vg_name,vg_size,vg_free' failed with exit code 5

Apache Embperl 2.2.0 [Tue May 17 11:57:12 2011]
Click to expand...
Hi,
perhaps something wrong with the vg-naming?
BTW. a lvm-partition should have the type 8e and not 83 - that's you later know what kind of partition this is.

Please post the full output of following commands:
Code:
fdisk -l
pvdisplay
vgdisplay
lvdisplay
cat /etc/pve/storage.cfg
Udo

Last edited:
xen1:~# fdisk -l

Disk /dev/sdc: 146.8 GB, 146815733760 bytes
255 heads, 63 sectors/track, 17849 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x00000000

Disk /dev/sdc doesn't contain a valid partition table

Disk /dev/sdd: 450.0 GB, 450098159616 bytes
255 heads, 63 sectors/track, 54721 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x000b4f53

Device Boot Start End Blocks Id System

Disk /dev/sde: 1500.3 GB, 1500301910016 bytes
255 heads, 63 sectors/track, 182401 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x00000000

Device Boot Start End Blocks Id System
/dev/sde1 * 1 66 524288 83 Linux
Partition 1 does not end on cylinder boundary.
/dev/sde2 66 182401 1464611712 8e Linux LVM

Disk /dev/dm-0: 11.8 GB, 11811160064 bytes
255 heads, 63 sectors/track, 1435 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x00000000

Disk /dev/dm-0 doesn't contain a valid partition table

Disk /dev/dm-1: 103.0 GB, 103079215104 bytes
255 heads, 63 sectors/track, 12532 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x00000000

Disk /dev/dm-1 doesn't contain a valid partition table

Disk /dev/dm-2: 1380.5 GB, 1380580327424 bytes
255 heads, 63 sectors/track, 167845 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x00000000

Disk /dev/dm-2 doesn't contain a valid partition table

xen1:~# pvdisplay
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find device with uuid 'N7unfT-VVJm-AS2b-e4fC-7Vpu-0OKK-97ITbb'.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find device with uuid 'N7unfT-VVJm-AS2b-e4fC-7Vpu-0OKK-97ITbb'.
--- Physical volume ---
PV Name /dev/sde2
VG Name pve
PV Size 1.36 TB / not usable 896.00 KB
Allocatable yes
PE Size (KByte) 4096
Total PE 357571
Free PE 1023
Allocated PE 356548
PV UUID F9gjOv-907S-DGiR-3feD-0MQV-xBaW-vmLtmF

Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Volume group "VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05" not found
Skipping volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Volume group "VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05" not found
Skipping volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Volume group "VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05" not found
Skipping volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05


--- Volume group ---
VG Name pve
System ID
Format lvm2
Metadata Areas 1
Metadata Sequence No 16
VG Access read/write
VG Status resizable
MAX LV 0
Cur LV 3
Open LV 3
Max PV 0
Cur PV 1
Act PV 1
VG Size 1.36 TB
PE Size 4.00 MB
Total PE 357571
Alloc PE / Size 356548 / 1.36 TB
Free PE / Size 1023 / 4.00 GB
VG UUID Wxdb70-UkgQ-6l3U-eUe4-2F6Y-WQoX-6C4Ovj

Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Volume group "VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05" not found


--- Volume group ---
VG Name pve
System ID
Format lvm2
Metadata Areas 1
Metadata Sequence No 16
VG Access read/write
VG Status resizable
MAX LV 0
Cur LV 3
Open LV 3
Max PV 0
Cur PV 1
Act PV 1
VG Size 1.36 TB
PE Size 4.00 MB
Total PE 357571
Alloc PE / Size 356548 / 1.36 TB
Free PE / Size 1023 / 4.00 GB
VG UUID Wxdb70-UkgQ-6l3U-eUe4-2F6Y-WQoX-6C4Ovj

Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Volume group "VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05" not found
xen1:~#
xen1:~# lvdisplay
--- Logical volume ---
LV Name /dev/pve/swap
VG Name pve
LV UUID gTmcQb-0tbd-bq2G-QTjC-rdXv-OYZH-s2PSJK
LV Write Access read/write
LV Status available
# open 1
LV Size 11.00 GB
Current LE 2816
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 256
Block device 254:0

--- Logical volume ---
LV Name /dev/pve/root
VG Name pve
LV UUID XX26pB-pOvz-UIoN-KHnh-8Ike-CdIr-RAd5dP
LV Write Access read/write
LV Status available
# open 1
LV Size 96.00 GB
Current LE 24576
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 256
Block device 254:1

--- Logical volume ---
LV Name /dev/pve/data
VG Name pve
LV UUID Q9vtgb-Fmvs-cHdA-tOHW-5Kq5-IcdF-cGFfTZ
LV Write Access read/write
LV Status available
# open 1
LV Size 1.26 TB
Current LE 329156
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 256
Block device 254:2

Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Volume group "VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05" not found


dir: local
path /var/lib/vz
content images,iso,vztmpl,rootdir

nfs: ISOS
path /mnt/pve/ISOS
server 192.xx.xx.xx
export /DataVolume/Download
content iso

dir: VMbackups
path /root/backups
content backup

dir: VM-SB
path /vm-sb
content images

sohaib said:
xen1:~# fdisk -l

Disk /dev/sdc: 146.8 GB, 146815733760 bytes
255 heads, 63 sectors/track, 17849 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x00000000

Disk /dev/sdc doesn't contain a valid partition table

Disk /dev/sdd: 450.0 GB, 450098159616 bytes
255 heads, 63 sectors/track, 54721 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x000b4f53

Device Boot Start End Blocks Id System

Disk /dev/sde: 1500.3 GB, 1500301910016 bytes
255 heads, 63 sectors/track, 182401 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x00000000

Device Boot Start End Blocks Id System
/dev/sde1 * 1 66 524288 83 Linux
Partition 1 does not end on cylinder boundary.
/dev/sde2 66 182401 1464611712 8e Linux LVM

Disk /dev/dm-0: 11.8 GB, 11811160064 bytes
255 heads, 63 sectors/track, 1435 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x00000000

Disk /dev/dm-0 doesn't contain a valid partition table

Disk /dev/dm-1: 103.0 GB, 103079215104 bytes
255 heads, 63 sectors/track, 12532 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x00000000

Disk /dev/dm-1 doesn't contain a valid partition table

Disk /dev/dm-2: 1380.5 GB, 1380580327424 bytes
255 heads, 63 sectors/track, 167845 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Disk identifier: 0x00000000

Disk /dev/dm-2 doesn't contain a valid partition table

xen1:~# pvdisplay
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find device with uuid 'N7unfT-VVJm-AS2b-e4fC-7Vpu-0OKK-97ITbb'.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find device with uuid 'N7unfT-VVJm-AS2b-e4fC-7Vpu-0OKK-97ITbb'.
--- Physical volume ---
PV Name /dev/sde2
VG Name pve
PV Size 1.36 TB / not usable 896.00 KB
Allocatable yes
PE Size (KByte) 4096
Total PE 357571
Free PE 1023
Allocated PE 356548
PV UUID F9gjOv-907S-DGiR-3feD-0MQV-xBaW-vmLtmF

Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Volume group "VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05" not found
Skipping volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Volume group "VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05" not found
Skipping volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Volume group "VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05" not found
Skipping volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05


--- Volume group ---
VG Name pve
System ID
Format lvm2
Metadata Areas 1
Metadata Sequence No 16
VG Access read/write
VG Status resizable
MAX LV 0
Cur LV 3
Open LV 3
Max PV 0
Cur PV 1
Act PV 1
VG Size 1.36 TB
PE Size 4.00 MB
Total PE 357571
Alloc PE / Size 356548 / 1.36 TB
Free PE / Size 1023 / 4.00 GB
VG UUID Wxdb70-UkgQ-6l3U-eUe4-2F6Y-WQoX-6C4Ovj

Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Volume group "VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05" not found


--- Volume group ---
VG Name pve
System ID
Format lvm2
Metadata Areas 1
Metadata Sequence No 16
VG Access read/write
VG Status resizable
MAX LV 0
Cur LV 3
Open LV 3
Max PV 0
Cur PV 1
Act PV 1
VG Size 1.36 TB
PE Size 4.00 MB
Total PE 357571
Alloc PE / Size 356548 / 1.36 TB
Free PE / Size 1023 / 4.00 GB
VG UUID Wxdb70-UkgQ-6l3U-eUe4-2F6Y-WQoX-6C4Ovj

Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Volume group "VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05" not found
xen1:~#
xen1:~# lvdisplay
--- Logical volume ---
LV Name /dev/pve/swap
VG Name pve
LV UUID gTmcQb-0tbd-bq2G-QTjC-rdXv-OYZH-s2PSJK
LV Write Access read/write
LV Status available
# open 1
LV Size 11.00 GB
Current LE 2816
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 256
Block device 254:0

--- Logical volume ---
LV Name /dev/pve/root
VG Name pve
LV UUID XX26pB-pOvz-UIoN-KHnh-8Ike-CdIr-RAd5dP
LV Write Access read/write
LV Status available
# open 1
LV Size 96.00 GB
Current LE 24576
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 256
Block device 254:1

--- Logical volume ---
LV Name /dev/pve/data
VG Name pve
LV UUID Q9vtgb-Fmvs-cHdA-tOHW-5Kq5-IcdF-cGFfTZ
LV Write Access read/write
LV Status available
# open 1
LV Size 1.26 TB
Current LE 329156
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 256
Block device 254:2

Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Couldn't find device with uuid 'LUoB5D-Mxvh-58Pq-oClm-5odG-ZvLW-r1nD0s'.
Couldn't find all physical volumes for volume group VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05.
Volume group "VG_XenStorage-965c44fc-b0e0-2eb0-e90d-1d5eddf79f05" not found


dir: local
path /var/lib/vz
content images,iso,vztmpl,rootdir

nfs: ISOS
path /mnt/pve/ISOS
server 192.xx.xx.xx
export /DataVolume/Download
content iso

dir: VMbackups
path /root/backups
content backup

dir: VM-SB
path /vm-sb
content images
Click to expand...
Hi,
you output shows
a) your system-disk, normaly sda is sde.
b) you have tried to build a vg named "VG_XenStorage"? Or is this old content on the disk?

I assume the disks sdc and sdd are empty or could be erased?
b) looks for not realy wiped lvm-infos. Perhaps it's enough to do an "pvremove -f /dev/sdc; pvremove -f /dev/sdd". But if lvm know an deleted partition this don't help.
You can wipe ( all content lost!!) the disk with "dd if=/dev/zero of=/dev/sdc bs=1024k count=1" - the same with sdd.

But be sure to use the right disks!!

After that you should reboot, so that lvm don't know about lost partitions...
Than create an partition type 8e on the disk and do an "pvcreate /dev/sdc1" and after that vgcreate (with an simple name for start). Then you should be able to use this vg in the storage-gui.

BTW. it's an good idea to change the bios/raid-settings to get the boot-disk as first disk (sda), because normaly grub-install on the mbr on the first disk - and normaly you aspect, that the system-disk also contain the right boot-loader...

Udo

Thanks for all your help, I have finally created that, but when I add LVM storage it is showing disk is full by 97% ? is that normal, also so those two drives which I formatted are now ONE big disk is that correct.

Why LVM is showing 97% full is that normal please respond. Thanks once again for all your help and support.

sohaib said:
Why LVM is showing 97% full is that normal please respond. Thanks once again for all your help and support.
Click to expand...
Hi,
i guess because you used the lvm-space for an logical volume?
Look with "vgdisplay" and "lvdisplay" (and post the content).

Normaly you create onla an volume group and add them to the storage-list of pve.
Pve create than the vm-disks as logical volume on the volume-group.

Udo

xen1:~# vgdisplay
--- Volume group ---
VG Name pve
System ID
Format lvm2
Metadata Areas 1
Metadata Sequence No 13
VG Access read/write
VG Status resizable
MAX LV 0
Cur LV 3
Open LV 3
Max PV 0
Cur PV 1
Act PV 1
VG Size 1.36 TB
PE Size 4.00 MB
Total PE 357571
Alloc PE / Size 356548 / 1.36 TB
Free PE / Size 1023 / 4.00 GB
VG UUID SF5oBh-mIaO-asrt-NQtR-g37n-KwD2-hdGrdL

xen1:~# lvdisplay
--- Logical volume ---
LV Name /dev/pve/swap
VG Name pve
LV UUID EoC5x7-ORUQ-iUYZ-EEeg-OdQi-QmBz-BVYbqL
LV Write Access read/write
LV Status available
# open 1
LV Size 11.00 GB
Current LE 2816
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 256
Block device 254:0

--- Logical volume ---
LV Name /dev/pve/root
VG Name pve
LV UUID S1KJe9-NHuD-T0N6-jJzz-OH3P-Riny-BgglZ9
LV Write Access read/write
LV Status available
# open 1
LV Size 96.00 GB
Current LE 24576
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 256
Block device 254:1

--- Logical volume ---
LV Name /dev/pve/data
VG Name pve
LV UUID 5yGl39-v3Cz-y7BH-k4VN-jasQ-zIyi-abizX7
LV Write Access read/write
LV Status available
# open 1
LV Size 1.26 TB
Current LE 329156
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 256
Block device 254:2

Hi,
there isn't another volumegroup (only pve). So i assume you ignore my post about "pvcreate and vgcreate"...
In this case it's not very easy to help you... perhaps you should read the manual about lvm (man lvm).

Udo

sorry, it was from my production server let me post it from my demo server which I AM USING to create lvm .

hello - I think its working, I forget to run vgcreate here is the screen shot, THANK YOU SO MUCH FOR ALL YOUR HELP. I appreciate it so much.Screen shot 2011-05-18 at 5.09.18 PM.png

You must log in or register to reply here.
Top Bottom
